Pan-Lug™ LCC750-12-6 Comp. Lug, 750, Tin Plt Copper, Strt, Two 1/2" Stud, PK6

COMP LUG LONG 2 1/2HOLE 750

PANLCC750126 LCC750-12-6 074983902750
47.21 / EA
http://schema.org/OutOfStock

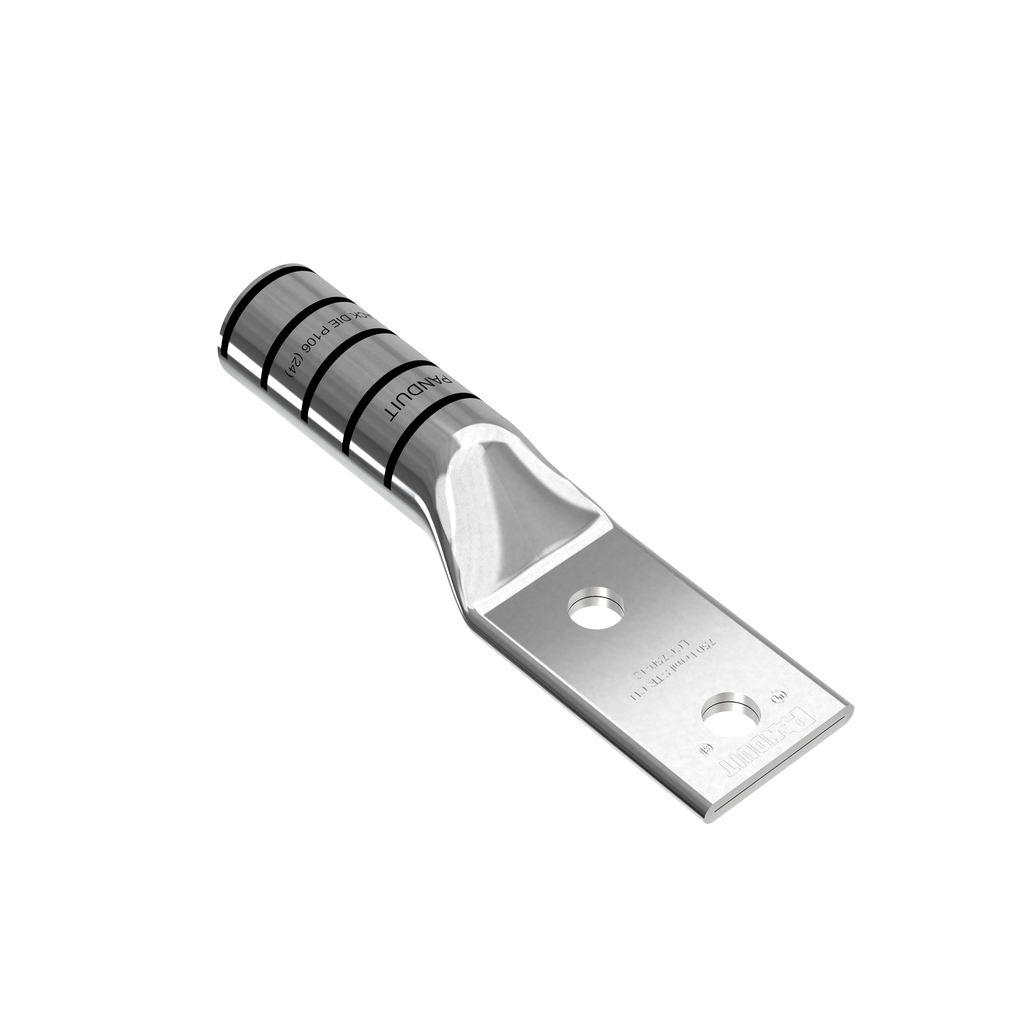

Mayer-DDS-Pan-Lug™ LCC750-12-6 Comp. Lug, 750, Tin Plt Copper, Strt, Two 1/2" Stud, PK6-1
  • Barrel Length: 2.87 in, 72.9 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Outer Diameter: 1.3 in, 33.02 mm
  • Overall Length: 178.816 mm, 7.04 in
  • Tongue Thickness: 0.26 in, 6.6 mm
  • Tongue Type: Standard
  • Tongue Width: 1.89 in, 48 mm
  • Type: Compression Lug
The LCC750-12-6 Tin-Plated Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The enclosed barrel prevents corrosive material from entering the barrel when used in harsh environments. UL Listed and CSA Certified.
QTY
  • Product Description
  • Specifications
The LCC750-12-6 Tin-Plated Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The enclosed barrel prevents corrosive material from entering the barrel when used in harsh environments. UL Listed and CSA Certified.
  • Packaging Details
    • UPC : 07498390275
    • GTIN Package : 00074983902750
    • Standard Package Volume Ft3 : 0.1047
    • Standard Package Weight Pounds : 6.5256
    • Std Package Height In : 4.25
    • Std Package Height MM : 107.95
    • Std Package Length In : 10.7
    • Std Package Length MM : 271.78
    • Std Package Width In : 4.3
    • Std Package Width MM : 109.22
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 6
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983902750
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1
  • Specifications
    • Product Segment : IEI
    • Outer Diameter (mm) : 33.02
    • Inside Diameter (In.) : 1.03
    • Outer Diameter (In.) : 1.3
    • Inside Diameter (mm) : 26.16
    • Product Type : Compression Lug
    • Lug Type : 2 Stud Hole Lug
    • Base Material : Copper
    • Sub Brand : Pan-Lug™
    • Copper Code Conductor Size (kcmil) : 750
    • Stud Hole Size (mm) : 12.7
    • Stud Hole Size (In.) : 1/2
    • Stud Hole Spacing (mm) : 44.5
    • Stud Hole Spacing (In.) : 1.75
    • Barrel Type : Long Barrel without Inspection Window
    • Barrel Length (In.) : 2.87
    • Barrel Length (mm) : 72.9
    • Tongue Type : Standard
    • Tongue Width (mm) : 48
    • Tongue Width (In.) : 1.89
    • Tongue Angle : Straight
    • Tongue Thickness (mm) : 6.6
    • Tongue Thickness (In.) : 0.26
    • Overall Length (In.) : 7.04
    • Overall Length (mm) : 178.816
    • Finish/Coating : Tin-Plated
    • Standards Met : UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13
    • UL Temperature Rating (°C) : 90
    • Maximum Voltage (kV) : 35
    • Color Code : Black
    • Panduit Die Index Number : P106
    • Burndy Die Index Number : 24
    • T & B Die Index Number : 106
    • Wire Strip Length (mm) : 74.6
    • Wire Strip Length (In.) : 2-15/16
