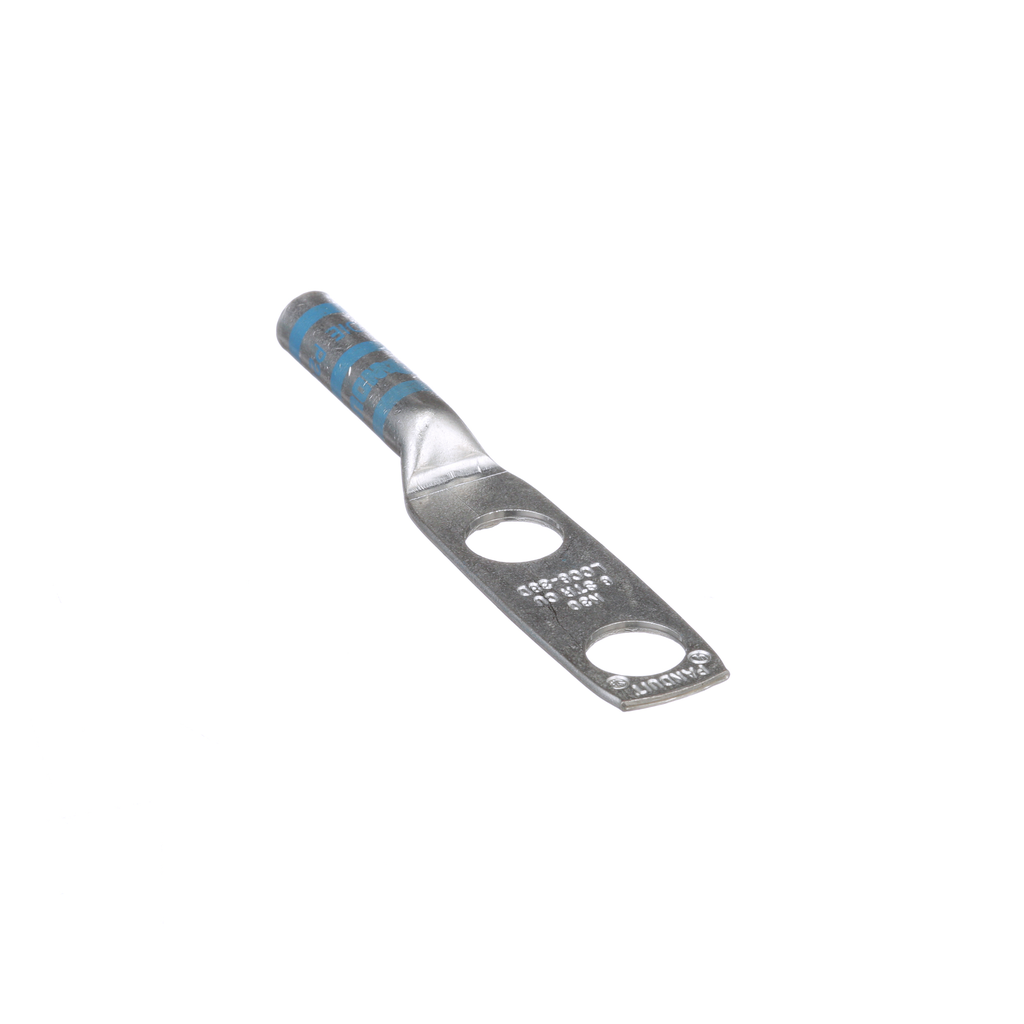

Pan-Lug™ LCC6-38D-L Comp. Lug, 6, Tin Plt Copper, Straight, Two 3/8" Stud, PK50

COMP LUG LONG 2 3/8HOLE #6

PANLCC638DL LCC6-38D-L 074983382590
8.31 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LCC6-38D-L Comp. Lug, 6, Tin Plt Copper, Straight, Two 3/8" Stud, PK50-2
  • Barrel Length: 1.07 in, 27.2 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 3.15 in, 80.1 mm
  • Tongue Thickness: 0.06 in, 1.5 mm
  • Tongue Type: Standard
  • Tongue Width: 0.62 in, 15.7 mm
  • Type: Compression Lug
The LCC6-38D-L Tin-Plated Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The enclosed barrel prevents corrosive material from entering the barrel when used in harsh environments. UL Listed and CSA Certified.
QTY
  • Product Description
  • Features
  • Specifications
The LCC6-38D-L Tin-Plated Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The enclosed barrel prevents corrosive material from entering the barrel when used in harsh environments. UL Listed and CSA Certified.
  • Standards and Certifications
    • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
  • Prop 65
    • No
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Tongue Angle : Straight
    • Panduit Die Index Number : P24
    • Tongue Width (mm) : 15.7
    • Barrel Type : Long
    • Tongue Type : Standard
    • T & B Die Index Number : 24
    • Sub Brand : Pan-Lug™
    • Base Material : Copper
    • Tongue Thickness (In.) : 0.06
    • Wire Strip Length (In.) : 1-1/8
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • UL Temperature Rating (°C) : 90
    • Tongue Thickness (mm) : 1.5
    • Product Type : Compression Lug
    • Finish/Coating : Tin-Plated
    • Stud Hole Size (In.) : 3/8
    • Overall Length (mm) : 80.1
    • Barrel Length (In.) : 1.07
    • Overall Length (In.) : 3.15
    • Tongue Width (In.) : 0.62
    • Copper Code Conductor Size (AWG) : 6
    • Burndy Die Index Number : 7
    • Maximum Voltage (kV) : 35
    • Wire Strip Length (mm) : 28.6
    • CSA Temperature Rating (°C) : 90
    • Stud Hole Size (mm) : 9.5
    • Color Code : Blue
    • Stud Hole Spacing (mm) : 25.4
    • Barrel Length (mm) : 27.2
    • Stud Hole Spacing (In.) : 1
    • Number of Stud Holes : 2
    • Barrel Entry : Beveled
    • Inspection Window : No
  • Packaging Details
    • UPC : 07498338259
    • GTIN Package : 00074983382590
    • Standard Package Volume Ft3 : 0.0395
    • Standard Package Weight Pounds : 1.7200
    • Std Package Height In : 3.35
    • Std Package Height MM : 85.09
    • Std Package Length In : 5.85
    • Std Package Length MM : 148.59
    • Std Package Width In : 3.45
    • Std Package Width MM : 87.63
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 50
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983382590
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
