Pan-Lug™ LCC350-12-X Comp. Lug, 350, Tin Plt Copper, Strt, Two 1/2" Stud, PK10

Pan-Lug™ LCC350-12-X Comp. Lug, 350, Tin Plt Copper, Strt, Two 1/2" Stud, PK10

PANLCC35012X LCC350-12-X 74983902552
24.19 / EA
http://schema.org/OutOfStock
  • Barrel Length: 2.24 in, 56.9 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 152.2 mm, 5.99 in
  • Tongue Thickness: 0.17 in, 4.3 mm
  • Tongue Type: Standard
  • Tongue Width: 1.28 in, 32.5 mm
  • Type: Compression Lug

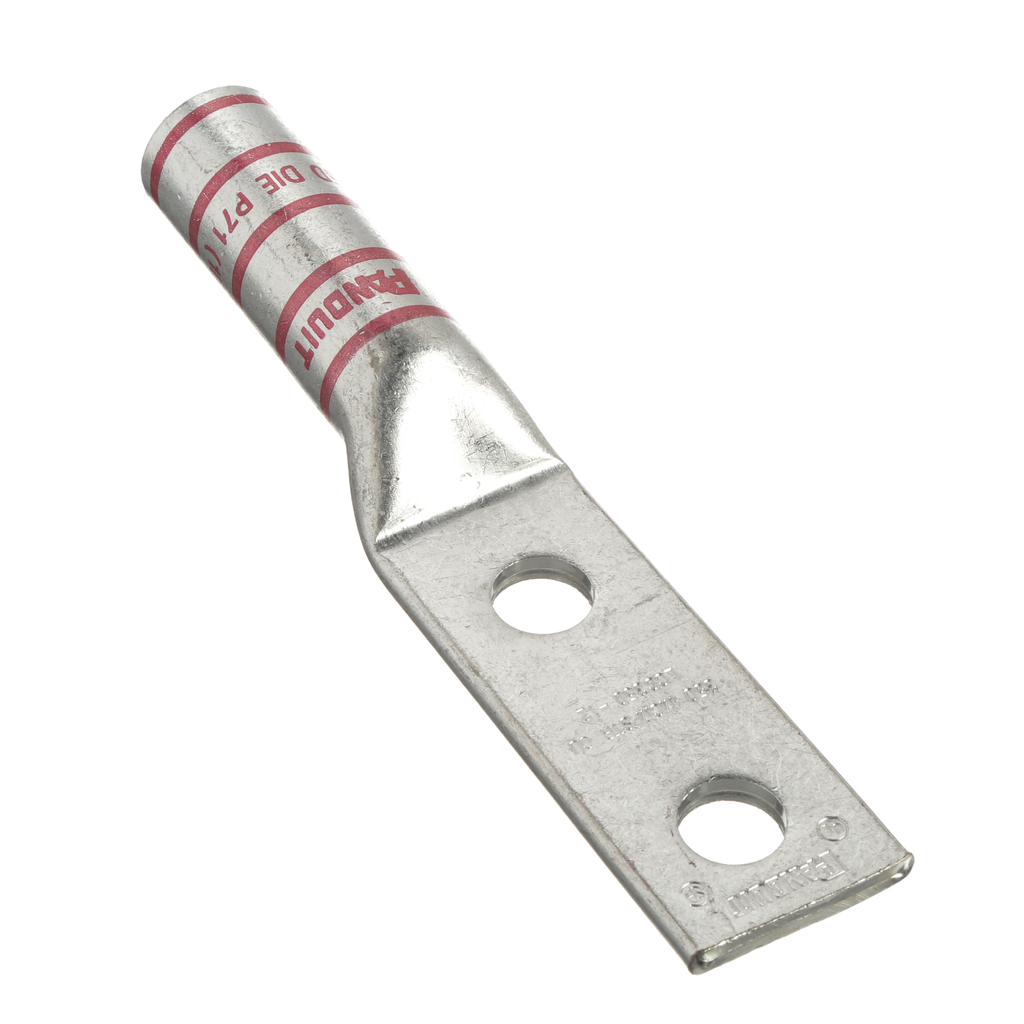

The LCC350-12-X Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
QTY
  • Product Description
  • Features
  • Specifications
The LCC350-12-X Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
  • Standards and Certifications
    • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
  • Prop 65
    • No
  • Packaging Details
    • UPC : 07498390255
    • GTIN Package : 00074983902552
    • Standard Package Volume Ft3 : 0.0528
    • Standard Package Weight Pounds : 3.9000
    • Std Package Height In : 3.35
    • Std Package Height MM : 85.09
    • Std Package Length In : 7.7
    • Std Package Length MM : 195.58
    • Std Package Width In : 3.4
    • Std Package Width MM : 86.36
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983902552
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Wire Strip Length (mm) : 58.7
    • Wire Strip Length (In.) : 2-5/16
    • Overall Length (mm) : 152.2
    • CSA Temperature Rating (°C) : 90
    • Sub Brand : Pan-Lug™
    • Copper Code Conductor Size (kcmil) : 350
    • T & B Die Index Number : 71
    • Tongue Thickness (mm) : 4.3
    • Finish/Coating : Tin-Plated
    • Stud Hole Spacing (In.) : 1.75
    • Burndy Die Index Number : 18
    • Overall Length (In.) : 5.99
    • Base Material : Copper
    • Stud Hole Size (mm) : 12.7
    • Color Code : Red
    • Tongue Width (In.) : 1.28
    • Barrel Type : Long
    • Tongue Thickness (In.) : 0.17
    • Panduit Die Index Number : P71
    • Tongue Angle : Straight
    • Product Type : Compression Lug
    • Tongue Width (mm) : 32.5
    • Barrel Length (In.) : 2.24
    • Maximum Voltage (kV) : 35
    • Tongue Type : Standard
    • UL Temperature Rating (°C) : 90
    • Stud Hole Spacing (mm) : 44.5
    • Stud Hole Size (In.) : 1/2
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • Barrel Length (mm) : 56.9
    • Inspection Window : No
    • Number of Stud Holes : 2
    • Barrel Entry : Beveled
