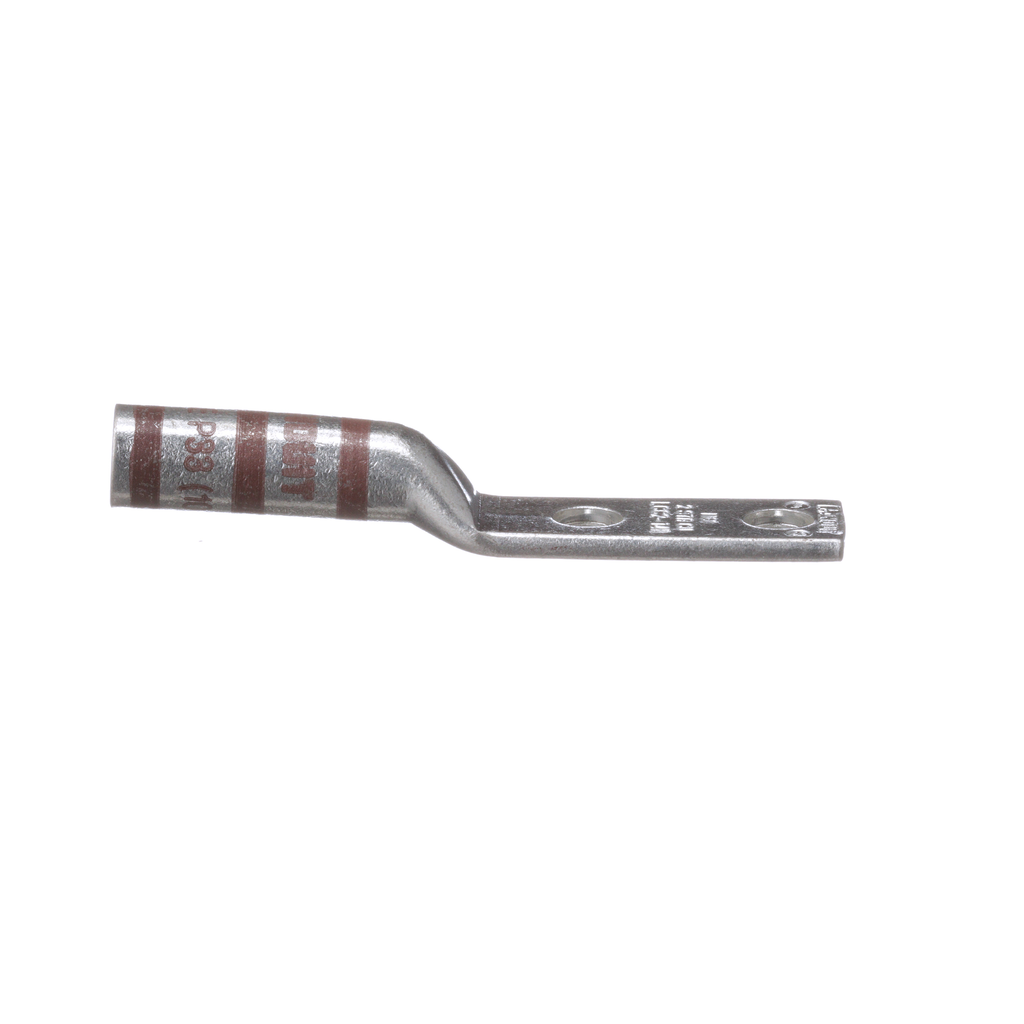

Pan-Lug™ LCC2-14B-Q Comp. Lug, Tin Plt Copper, Strt, Two 1/4" Stud, PK25

COMP LUG LONG 2 1/4HOLE #2

PANLCC214BQ LCC2-14B-Q 074983382477
9.16 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LCC2-14B-Q Comp. Lug, Tin Plt Copper, Strt, Two 1/4" Stud, PK25-2
  • Barrel Length: 1.16 in, 29.5 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Outer Diameter: 0.42 in, 10.66 mm
  • Overall Length: 2.89 in, 73.4 mm
  • Tongue Thickness: 0.1 in, 2.5 mm
  • Tongue Type: Standard
  • Tongue Width: 0.6 in, 15.2 mm
  • Type: Compression Lug
The LCC2-14B-Q Tin-Plated Copper Compression Lug Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
QTY
  • Product Description
  • Specifications
The LCC2-14B-Q Tin-Plated Copper Compression Lug Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
  • Packaging Details
    • UPC : 07498338247
    • GTIN Package : 00074983382477
    • Standard Package Volume Ft3 : 0.0312
    • Standard Package Weight Pounds : 1.4500
    • Std Package Height In : 3.35
    • Std Package Height MM : 85.09
    • Std Package Length In : 4.75
    • Std Package Length MM : 120.65
    • Std Package Width In : 3.4
    • Std Package Width MM : 86.36
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 25
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983382477
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1
  • Specifications
    • Product Segment : IEI
    • Outer Diameter (In.) : 0.42
    • Inside Diameter (In.) : 0.31
    • Inside Diameter (mm) : 7.87
    • Outer Diameter (mm) : 10.66
    • Product Type : Compression Lug
    • Lug Type : 2 Stud Hole Lug
    • Base Material : Copper
    • Copper Code Conductor Size (AWG) : 2
    • Sub Brand : Pan-Lug™
    • Stud Hole Size (mm) : 6.4
    • Stud Hole Size (In.) : 1/4
    • Stud Hole Spacing (mm) : 19.1
    • Stud Hole Spacing (In.) : 0.75
    • Barrel Type : Long Barrel without Inspection Window
    • Barrel Length (In.) : 1.16
    • Barrel Length (mm) : 29.5
    • Tongue Type : Standard
    • Tongue Width (In.) : 0.6
    • Tongue Width (mm) : 15.2
    • Tongue Angle : Straight
    • Tongue Thickness (mm) : 2.5
    • Tongue Thickness (In.) : 0.1
    • Overall Length (In.) : 2.89
    • Overall Length (mm) : 73.4
    • Finish/Coating : Tin-Plated
    • Standards Met : C22.2 No. 65-13, 486A-486B File #E52164
    • UL Temperature Rating (°C) : 90
    • Maximum Voltage (kV) : 35
    • Color Code : Brown
    • Panduit Die Index Number : P33
    • Burndy Die Index Number : 10
    • T & B Die Index Number : 10
    • Wire Strip Length (In.) : 1-1/4
    • Wire Strip Length (mm) : 31.8
