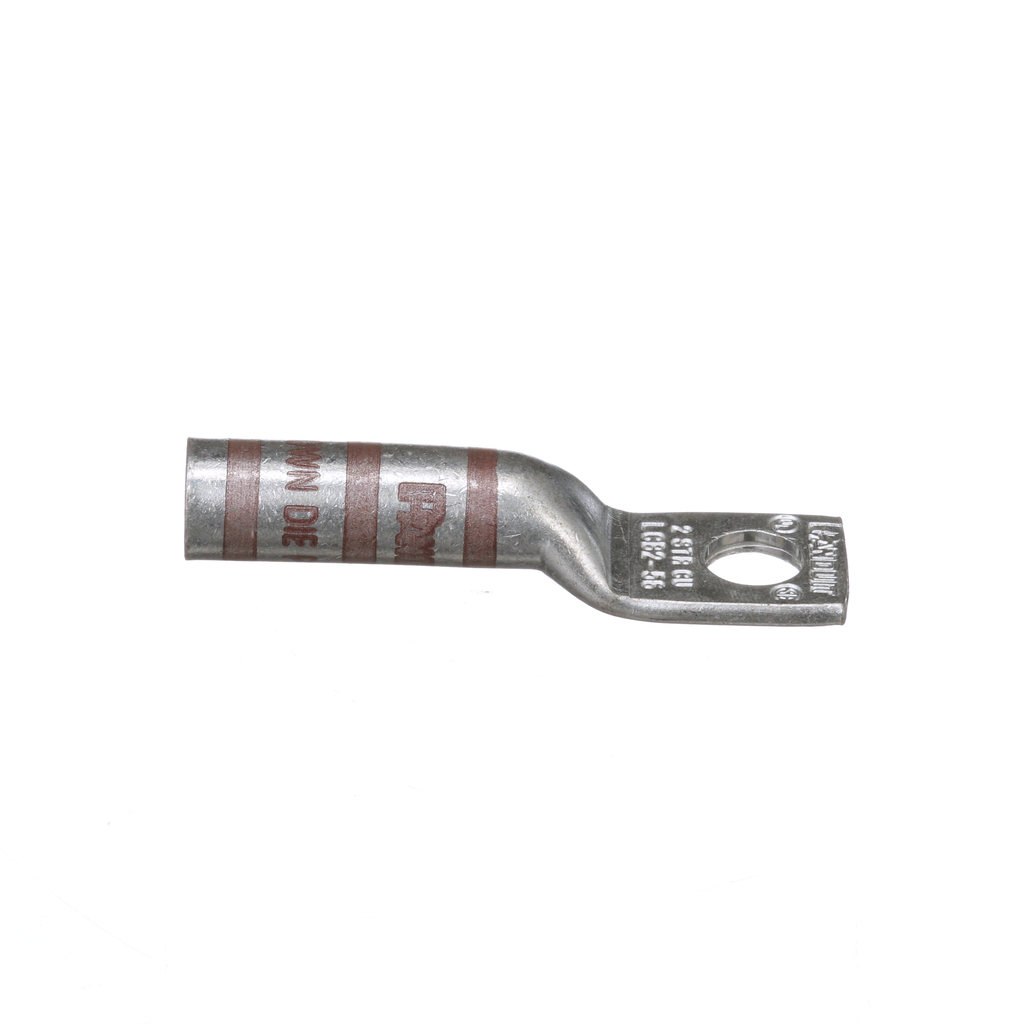

Pan-Lug™ LCB2-56-Q Comp. Lug, Tin Plt Copper, Strt, One 0.31" Stud, PK25

COMP LUG LONG 1 5/16HOLE #2

PANLCB256Q LCB2-56-Q 74983901814
7.10 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LCB2-56-Q Comp. Lug, Tin Plt Copper, Strt, One 0.31" Stud, PK25-2
  • Barrel Length: 1.16 in, 29.5 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 2.27 in, 57.7 mm
  • Tongue Thickness: 0.1 in, 2.5 mm
  • Tongue Type: Standard
  • Tongue Width: 0.66 in, 16.8 mm
  • Type: Compression Lug
The LCB2-56-Q Tin-Plated Copper Compression Lug, one-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
QTY
  • Product Description
  • Features
  • Specifications
The LCB2-56-Q Tin-Plated Copper Compression Lug, one-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
  • Standards and Certifications
    • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved, NEBS Level 3
  • Prop 65
    • No
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • Base Material : Copper
    • Tongue Width (In.) : 0.66
    • Barrel Type : Long
    • Overall Length (mm) : 57.7
    • Maximum Voltage (kV) : 35
    • Tongue Width (mm) : 16.8
    • Wire Strip Length (In.) : 1-1/4
    • Burndy Die Index Number : 10
    • Stud Hole Size (In.) : 5/16
    • T & B Die Index Number : 33
    • Stud Hole Size (mm) : 7.9
    • Tongue Type : Standard
    • Overall Length (In.) : 2.27
    • Product Type : Compression Lug
    • Barrel Length (In.) : 1.16
    • Copper Code Conductor Size (AWG) : 2
    • UL Temperature Rating (°C) : 90
    • CSA Temperature Rating (°C) : 90
    • Tongue Thickness (mm) : 2.5
    • Tongue Angle : Straight
    • Panduit Die Index Number : P33
    • Color Code : Brown
    • Sub Brand : Pan-Lug™
    • Tongue Thickness (In.) : 0.1
    • Finish/Coating : Tin-Plated
    • Barrel Length (mm) : 29.5
    • Wire Strip Length (mm) : 31.8
    • Inspection Window : No
    • Number of Stud Holes : 1
    • Barrel Entry : Beveled
  • Packaging Details
    • UPC : 07498390181
    • GTIN Package : 00074983901814
    • Standard Package Volume Ft3 : 0.0328
    • Standard Package Weight Pounds : 1.2350
    • Std Package Height In : 3.45
    • Std Package Height MM : 87.63
    • Std Package Length In : 4.75
    • Std Package Length MM : 120.65
    • Std Package Width In : 3.4
    • Std Package Width MM : 86.36
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 25
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983901814
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
