Pan-Lug™ LCA8-14-L Comp. Lug, Tin Plt Copper, Strt, One 1/4" Stud, PK50

Pan-Lug™ LCA8-14-L Comp. Lug, Tin Plt Copper, Strt, One 1/4" Stud, PK50

PANLCA814L LCA8-14-L 074983900015
4.06 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LCA8-14-L Comp. Lug, Tin Plt Copper, Strt, One 1/4" Stud, PK50-2
  • Barrel Length: 0.56 in, 14.2 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Outer Diameter: 0.27 in, 6.85 mm
  • Overall Length: 1.34 in, 34 mm
  • Tongue Thickness: 0.07 in, 1.8 mm
  • Tongue Type: Standard
  • Tongue Width: 0.48 in, 12.2 mm
  • Type: Compression Lug

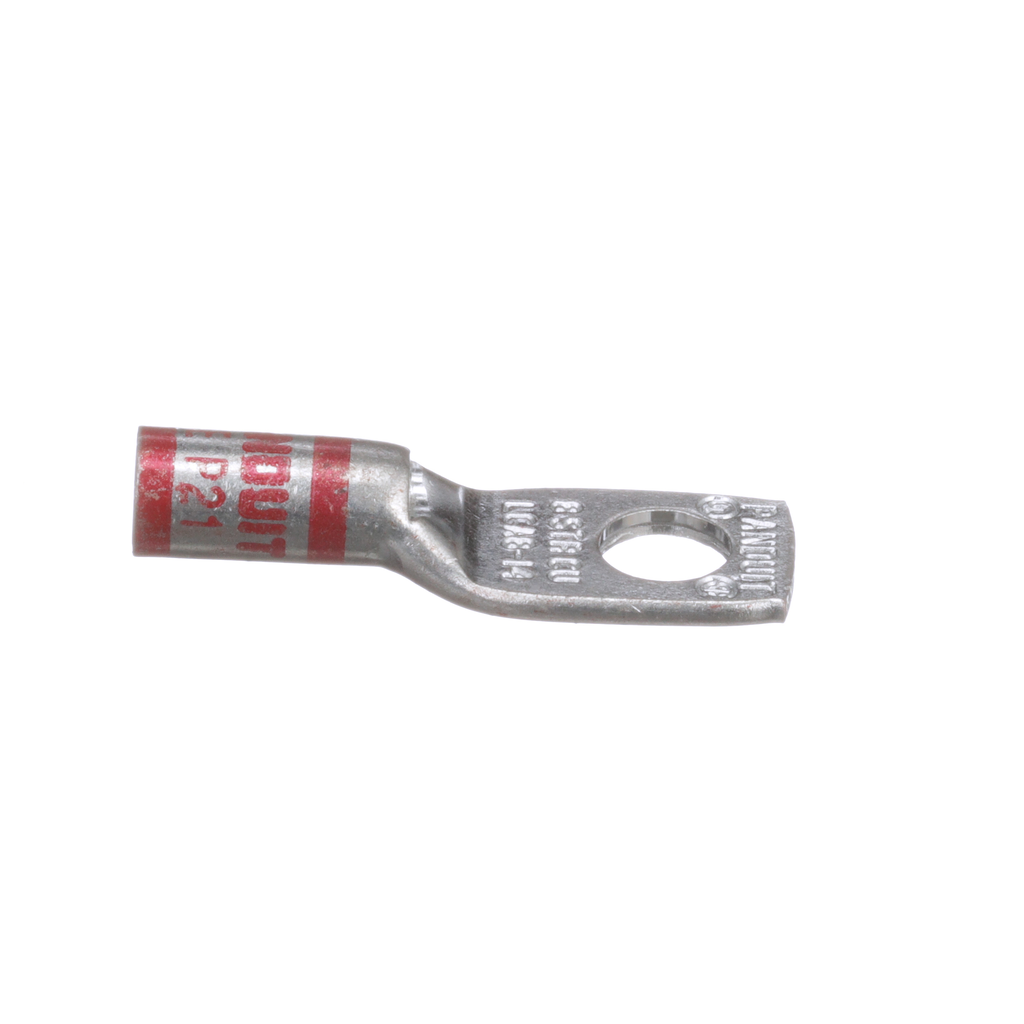

The LCA8-14-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
QTY
  • Product Description
  • Specifications
The LCA8-14-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
  • Packaging Details
    • UPC : 07498390001
    • GTIN Package : 00074983900015
    • Standard Package Volume Ft3 : 0.0184
    • Standard Package Weight Pounds : 0.7400
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 4.75
    • Std Package Length MM : 120.65
    • Std Package Width In : 3.45
    • Std Package Width MM : 87.63
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 50
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983900015
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1
  • Specifications
    • Product Segment : IEI
    • Outer Diameter (In.) : 0.27
    • Outer Diameter (mm) : 6.85
    • Inside Diameter (In.) : 0.18
    • Inside Diameter (mm) : 4.57
    • Product Type : Compression Lug
    • Lug Type : 1 Stud Hole Lug
    • Base Material : Copper
    • Sub Brand : Pan-Lug™
    • Copper Code Conductor Size (AWG) : 8
    • Stud Hole Size (mm) : 6.4
    • Stud Hole Size (In.) : 1/4
    • Barrel Type : Standard Barrel with Inspection Window
    • Barrel Length (In.) : 0.56
    • Barrel Length (mm) : 14.2
    • Tongue Type : Standard
    • Tongue Width (In.) : 0.48
    • Tongue Width (mm) : 12.2
    • Tongue Angle : Straight
    • Tongue Thickness (In.) : 0.07
    • Tongue Thickness (mm) : 1.8
    • Overall Length (mm) : 34
    • Overall Length (In.) : 1.34
    • Finish/Coating : Tin-Plated
    • Standards Met : UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13
    • UL Temperature Rating (°C) : 90
    • CSA Temperature Rating (°C) : 90
    • Maximum Voltage (kV) : 35
    • Color Code : Red
    • Panduit Die Index Number : P21
    • Burndy Die Index Number : 49
    • T & B Die Index Number : 21
    • Wire Strip Length (In.) : 5/8
    • Wire Strip Length (mm) : 15.9
