Pan-Lug™ LCA6-38-L Comp. Lug, 6, Tin Plt Copper, Strt, One 3/8" Stud, PK50

COMP LUG WIDE 1 3/8HOLE #6

PANLCA638L LCA6-38-L 074983900084
2.44 / EA
http://schema.org/OutOfStock

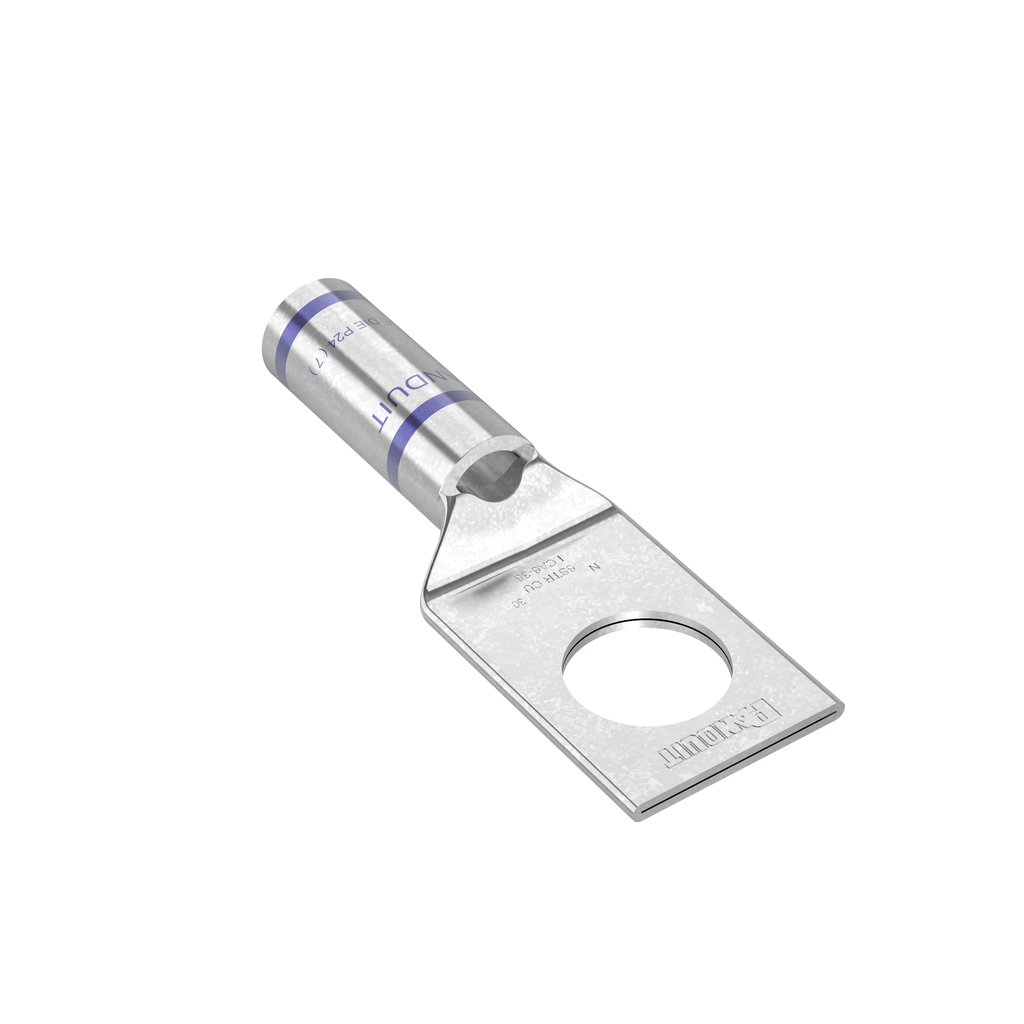

Mayer-DDS-Pan-Lug™ LCA6-38-L Comp. Lug, 6, Tin Plt Copper, Strt, One 3/8" Stud, PK50-1
  • Barrel Length: 0.81 in, 20.6 mm
  • Material: Copper
  • Overall Length: 1.83 in, 46.5 mm
  • Tongue Thickness: 0.06 in, 1.5 mm
  • Tongue Type: Standard
  • Tongue Width: 0.62 in, 15.7 mm
  • Type: Compression Lug
The LCA6-38-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
QTY
  • Product Description
  • Features
  • Specifications
The LCA6-38-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
  • Standards and Certifications
    • Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
  • Prop 65
    • No
  • Packaging Details
    • UPC : 07498390008
    • GTIN Package : 00074983900084
    • Standard Package Volume Ft3 : 0.0328
    • Standard Package Weight Pounds : 1.0700
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 4.65
    • Std Package Length MM : 118.11
    • Std Package Width In : 3.35
    • Std Package Width MM : 85.09
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 50
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • EAN : 00074983900084
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
  • Specifications
    • Country of Origin : Mexico
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Stud Hole Spacing (mm) : 0
    • Panduit Die Index Number : P24
    • Base Material : Copper
    • Maximum Voltage (kV) : 35
    • Burndy Die Index Number : 7
    • Tongue Angle : Straight
    • Wire Strip Length (mm) : 22.2
    • Tongue Width (mm) : 15.7
    • CSA Temperature Rating (°C) : 90
    • Overall Length (mm) : 46.5
    • Tongue Thickness (In.) : 0.06
    • Tongue Width (In.) : 0.62
    • Barrel Length (In.) : 0.81
    • Overall Length (In.) : 1.83
    • Tongue Type : Standard
    • Barrel Type : Standard
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • Wire Strip Length (In.) : 7/8
    • Stud Hole Size (In.) : 3/8
    • Sub Brand : Pan-Lug™
    • Color Code : Blue
    • Stud Hole Size (mm) : 9.5
    • Product Type : Compression Lug
    • T & B Die Index Number : 24
    • UL Temperature Rating (°C) : 90
    • Tongue Thickness (mm) : 1.5
    • Finish/Coating : Tin-Plated
    • Barrel Length (mm) : 20.6
    • Barrel Entry : Beveled
    • Number of Stud Holes : 1
    • Inspection Window : Yes
    • Copper Conductor Size : 6 AWG
