Pan-Lug™ LCA350-12-X Comp. Lug, 350, Tin Plt Copper, Strt, One 1/2" Stud, PK10

COMP LUG WIDE 1 1/2HOLE 350

PANLCA35012X LCA350-12-X 074983900558
29.38 / EA
http://schema.org/OutOfStock

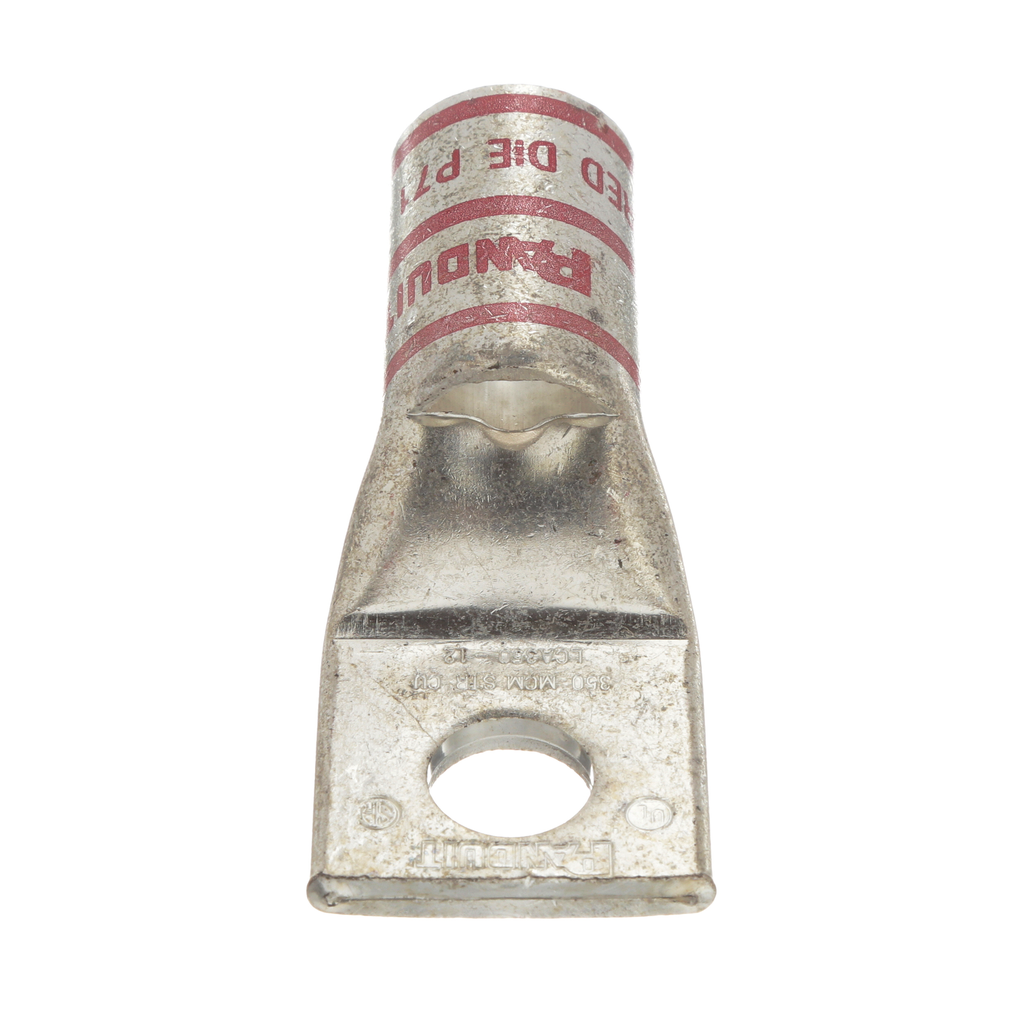

Mayer-DDS-Pan-Lug™ LCA350-12-X Comp. Lug, 350, Tin Plt Copper, Strt, One 1/2" Stud, PK10-1
  • Barrel Length: 1.44 in, 36.6 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Outer Diameter: 0.88 in, 22.35 mm
  • Overall Length: 3.09 in, 78.5 mm
  • Tongue Thickness: 0.17 in, 4.3 mm
  • Tongue Type: Standard
  • Tongue Width: 1.28 in, 32.5 mm
  • Type: Compression Lug
The LCA350-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
QTY
  • Product Description
  • Specifications
The LCA350-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
  • Specifications
    • Product Segment : IEI
    • Outer Diameter (mm) : 22.35
    • Inside Diameter (mm) : 17.78
    • Inside Diameter (In.) : 0.7
    • Outer Diameter (In.) : 0.88
    • Product Type : Compression Lug
    • Lug Type : 1 Stud Hole Lug
    • Base Material : Copper
    • Copper Code Conductor Size (kcmil) : 350
    • Sub Brand : Pan-Lug™
    • Stud Hole Size (mm) : 12.7
    • Stud Hole Size (In.) : 1/2
    • Barrel Type : Standard Barrel with Inspection Window
    • Barrel Length (mm) : 36.6
    • Barrel Length (In.) : 1.44
    • Tongue Type : Standard
    • Tongue Width (In.) : 1.28
    • Tongue Width (mm) : 32.5
    • Tongue Angle : Straight
    • Tongue Thickness (mm) : 4.3
    • Tongue Thickness (In.) : 0.17
    • Overall Length (mm) : 78.5
    • Overall Length (In.) : 3.09
    • Finish/Coating : Tin-Plated
    • Standards Met : UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13
    • CSA Temperature Rating (°C) : 90
    • UL Temperature Rating (°C) : 90
    • Maximum Voltage (kV) : 35
    • Color Code : Red
    • Panduit Die Index Number : P71
    • T & B Die Index Number : 66
    • Burndy Die Index Number : 18
    • Wire Strip Length (mm) : 38.1
    • Wire Strip Length (In.) : 1-1/2
  • Packaging Details
    • UPC : 07498390055
    • GTIN Package : 00074983900558
    • Standard Package Volume Ft3 : 0.0395
    • Standard Package Weight Pounds : 2.0350
    • Std Package Height In : 3.35
    • Std Package Height MM : 85.09
    • Std Package Length In : 5.85
    • Std Package Length MM : 148.59
    • Std Package Width In : 3.45
    • Std Package Width MM : 87.63
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983900558
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1
