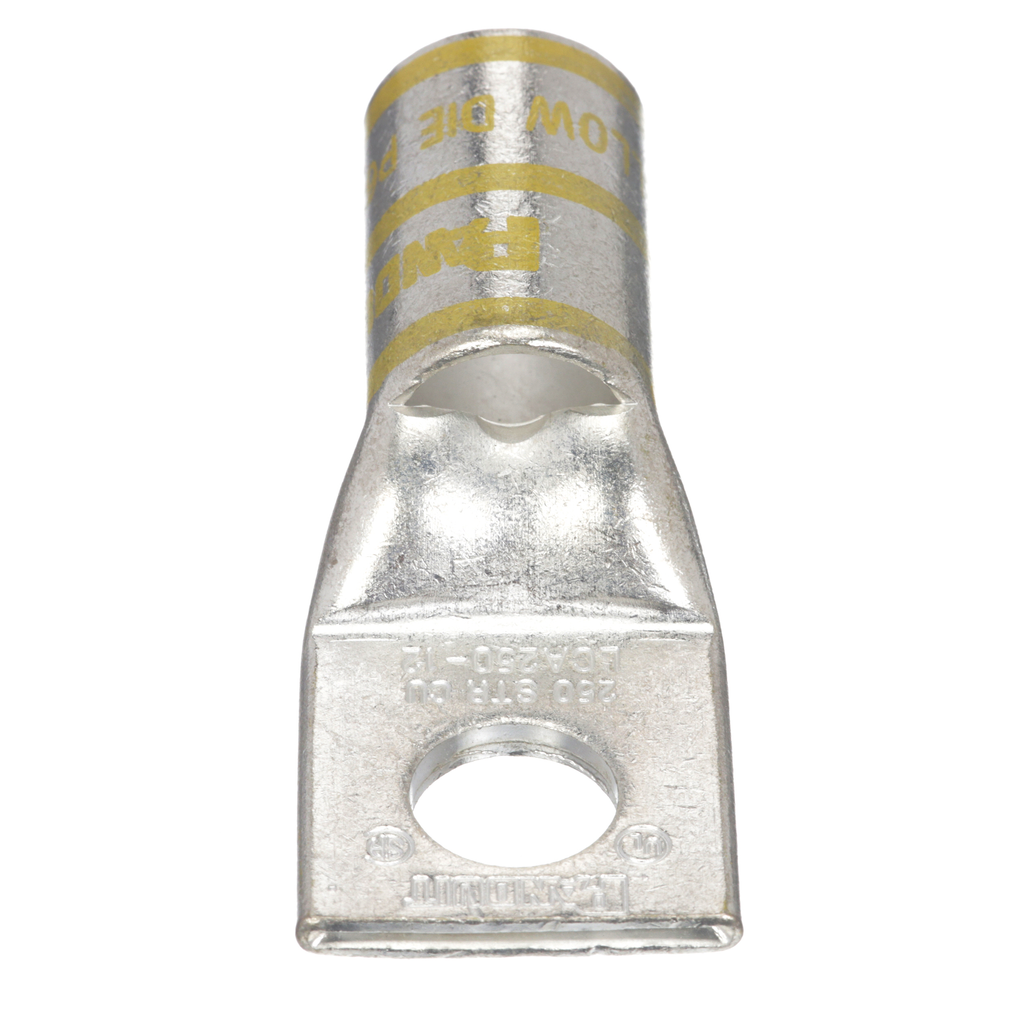

Pan-Lug™ LCA250-12-X Comp. Lug, 250, Tin Plt Copper, Strt, One 1/2" Stud, PK10

COMP LUG WIDE 1 1/2HOLE 250

PANLCA25012X LCA250-12-X 074983900459
10.42 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LCA250-12-X Comp. Lug, 250, Tin Plt Copper, Strt, One 1/2" Stud, PK10-1
  • Barrel Length: 1.25 in, 31.8 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Outer Diameter: 0.77 in, 19.55 mm
  • Overall Length: 2.77 in, 70.4 mm
  • Tongue Thickness: 0.14 in, 3.6 mm
  • Tongue Type: Standard
  • Tongue Width: 1.17 in, 29.7 mm
  • Type: Compression Lug
The LCA250-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
QTY
  • Product Description
  • Specifications
The LCA250-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
  • Specifications
    • Product Segment : IEI
    • Inside Diameter (mm) : 16
    • Outer Diameter (In.) : 0.77
    • Outer Diameter (mm) : 19.55
    • Inside Diameter (In.) : 0.63
    • Product Type : Compression Lug
    • Lug Type : 1 Stud Hole Lug
    • Base Material : Copper
    • Sub Brand : Pan-Lug™
    • Copper Code Conductor Size (kcmil) : 250
    • Stud Hole Size (mm) : 12.7
    • Stud Hole Size (In.) : 1/2
    • Barrel Type : Standard Barrel with Inspection Window
    • Barrel Length (In.) : 1.25
    • Barrel Length (mm) : 31.8
    • Tongue Type : Standard
    • Tongue Width (In.) : 1.17
    • Tongue Width (mm) : 29.7
    • Tongue Angle : Straight
    • Tongue Thickness (In.) : 0.14
    • Tongue Thickness (mm) : 3.6
    • Overall Length (mm) : 70.4
    • Overall Length (In.) : 2.77
    • Finish/Coating : Tin-Plated
    • Standards Met : UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13
    • UL Temperature Rating (°C) : 90
    • CSA Temperature Rating (°C) : 90
    • Maximum Voltage (kV) : 35
    • Color Code : Yellow
    • Panduit Die Index Number : P62
    • T & B Die Index Number : 62
    • Burndy Die Index Number : 16
    • Wire Strip Length (In.) : 1-5/16
    • Wire Strip Length (mm) : 33.3
  • Packaging Details
    • UPC : 07498390045
    • GTIN Package : 00074983900459
    • Standard Package Volume Ft3 : 0.0328
    • Standard Package Weight Pounds : 1.4700
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 4.75
    • Std Package Length MM : 120.65
    • Std Package Width In : 3.4
    • Std Package Width MM : 86.36
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983900459
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1
