Pan-Lug™ LCA1/0-14-X Comp. Lug, 1/0, Tin Plt Copper, Strt, One 1/4" Stud, PK10

COMP LUG WIDE 1 1/4HOLE #1/0

PANLCA1014X LCA1/0-14-X 074983901142
6.02 / EA
http://schema.org/OutOfStock

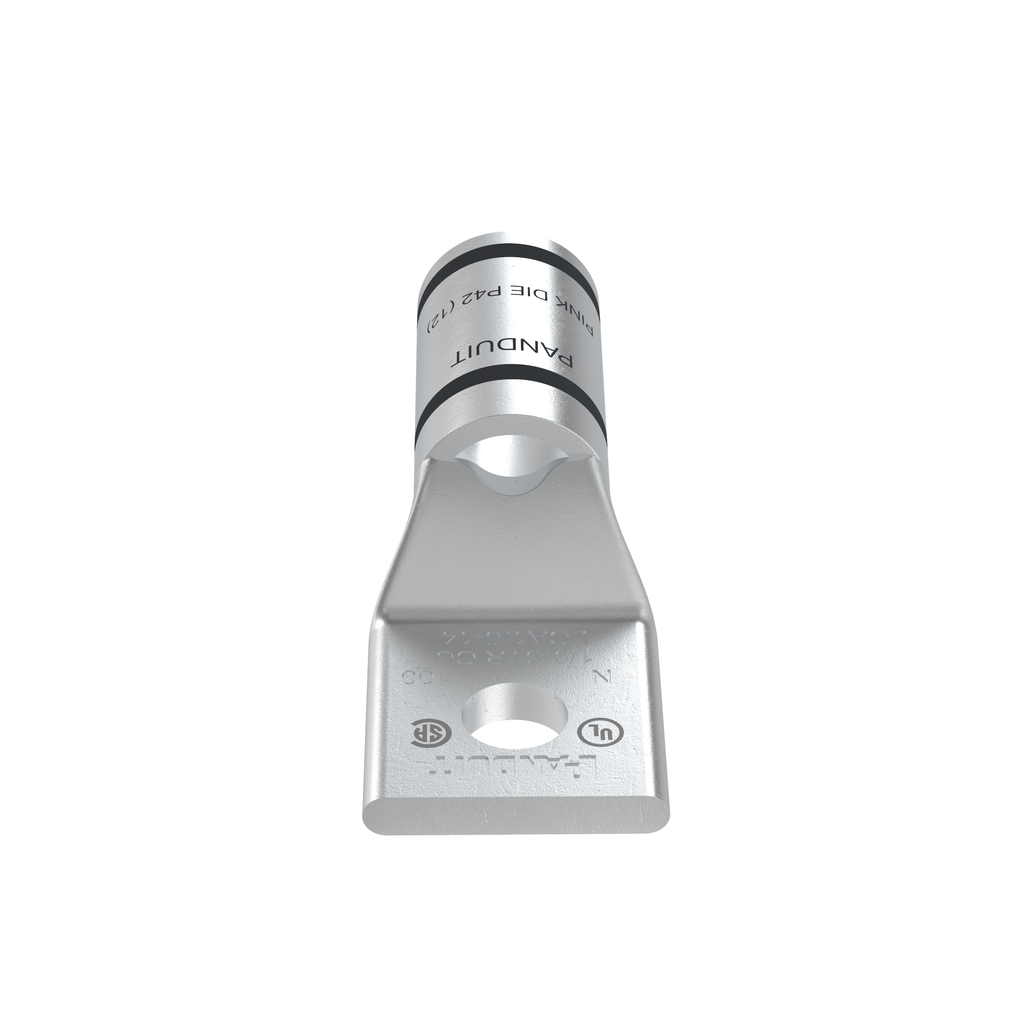

Mayer-DDS-Pan-Lug™ LCA1/0-14-X Comp. Lug, 1/0, Tin Plt Copper, Strt, One 1/4" Stud, PK10-1
  • Barrel Length: 0.94 in, 23.9 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Outer Diameter: 0.2 mm, 0.52 in
  • Overall Length: 1.95 in, 49.5 mm
  • Tongue Thickness: 0.12 in, 3 mm
  • Tongue Type: Standard
  • Tongue Width: 0.76 in, 19.3 mm
  • Type: Compression Lug
The LCA1/0-14-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
QTY
  • Product Description
  • Specifications
The LCA1/0-14-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
  • Specifications
    • Product Segment : IEI
    • Inside Diameter (mm) : 9.9
    • Outer Diameter (In.) : 0.52
    • Inside Diameter (In.) : 0.39
    • Outer Diameter (mm) : 0.2
    • Product Type : Compression Lug
    • Lug Type : 1 Stud Hole Lug
    • Base Material : Copper
    • Sub Brand : Pan-Lug™
    • Copper Code Conductor Size (AWG) : 1/0
    • Stud Hole Size (mm) : 6.4
    • Stud Hole Size (In.) : 1/4
    • Barrel Type : Standard Barrel with Inspection Window
    • Barrel Length (mm) : 23.9
    • Barrel Length (In.) : 0.94
    • Tongue Type : Standard
    • Tongue Width (mm) : 19.3
    • Tongue Width (In.) : 0.76
    • Tongue Angle : Straight
    • Tongue Thickness (In.) : 0.12
    • Tongue Thickness (mm) : 3
    • Overall Length (In.) : 1.95
    • Overall Length (mm) : 49.5
    • Finish/Coating : Tin-Plated
    • Standards Met : UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13
    • CSA Temperature Rating (°C) : 90
    • UL Temperature Rating (°C) : 90
    • Maximum Voltage (kV) : 35
    • Color Code : Pink
    • Panduit Die Index Number : P42
    • T & B Die Index Number : 42
    • Burndy Die Index Number : 12
    • Wire Strip Length (In.) : 1
    • Wire Strip Length (mm) : 25.4
  • Packaging Details
    • UPC : 07498390114
    • GTIN Package : 00074983901142
    • Standard Package Volume Ft3 : 0.0184
    • Standard Package Weight Pounds : 0.6350
    • Std Package Height In : 3.35
    • Std Package Height MM : 85.09
    • Std Package Length In : 4.7
    • Std Package Length MM : 119.38
    • Std Package Width In : 3.35
    • Std Package Width MM : 85.09
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983901142
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1
