StructuredGround™ CTAPF2-12-C Comp. Tap, 2-12, Copper, PK100

StructuredGround™ CTAPF2-12-C Comp. Tap, 2-12, Copper, PK100

PANCTAPF212C CTAPF2-12-C 74983599752
4.68 / EA
http://schema.org/OutOfStock
Mayer-DDS-StructuredGround™ CTAPF2-12-C Comp. Tap, 2-12, Copper, PK100-1
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 1.25 in, 31.8 mm
  • Type: Compression Tap
  • Width: 1.25 in, 31.8 mm

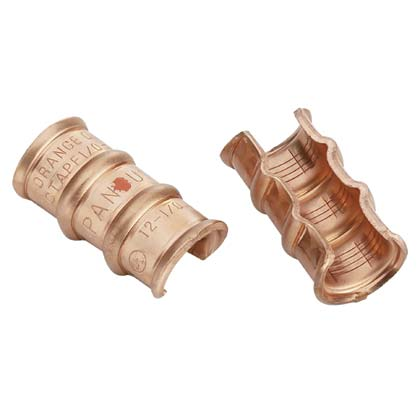

The CTAPF2-12-C Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with stranded copper code conductors and is for tapping into unbroken continuous main, splicing and pig tailing. The wide wire range-taking capability minimizes inventory requirements. UL listed per UL486 for use up to 600V and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies.
QTY
  • Product Description
  • Features
  • Specifications
The CTAPF2-12-C Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with stranded copper code conductors and is for tapping into unbroken continuous main, splicing and pig tailing. The wide wire range-taking capability minimizes inventory requirements. UL listed per UL486 for use up to 600V and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies.
  • Prop 65
    • No
  • Standards and Certifications
    • Standards Met: UL listed and CSA certified to 600 V
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Minimum Tap Size (AWG STR) : 12
    • Wire Strip Length (In.) : 1-5/16
    • Overall Length (mm) : 31.8
    • Wire Strip Length (mm) : 33.3
    • Overall Thickness (mm) : 2
    • Material : Copper
    • For Use With : AWG wire only
    • Sub Brand : StructuredGround™
    • Minimum Run Size (AWG STR) : 4
    • Maximum Tap Size (AWG STR) : 4
    • Color : Brown
    • Inside Diameter (In.) : 0.51
    • Product Type : Compression Tap
    • Surface Treatment : Bare
    • Overall Width (mm) : 31.8
    • Maximum Run Size (AWG STR) : 2
    • Application : Utility/Ground Grid
    • Panduit Die Index Number : P42
    • Overall Thickness (In.) : 0.08
    • Overall Width (In.) : 1.25
    • Overall Length (In.) : 1.25
    • Inside Diameter (mm) : 13
  • Packaging Details
    • UPC : 07498359975
    • GTIN Package : 00074983599752
    • Standard Package Volume Ft3 : 0.0641
    • Standard Package Weight Pounds : 3.7200
    • Std Package Height In : 3.45
    • Std Package Height MM : 87.63
    • Std Package Length In : 7.8
    • Std Package Length MM : 198.12
    • Std Package Width In : 3.4
    • Std Package Width MM : 86.36
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 100
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983599752
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
