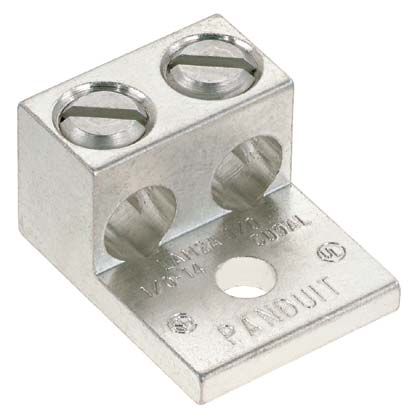

Pan-Lug™ LAM2A2/0-14-6Y Mechanical Connectors - Lug

MECH LUG 2BARREL #14-2/0

PANLAM2A20146Y LAM2A2/0-14-6Y 074983592531
6.07 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LAM2A2/0-14-6Y Mechanical Connectors - Lug-1
  • Barrel Length: 0.63 in, 16 mm
  • Country of Origin: India
  • Height: 0.8 in, 19.9 mm
  • Material: Copper
  • Overall Length: 1.47 in, 37.3 mm
  • Tongue Length: 0.85 in, 21.6 mm
  • Tongue Thickness: 0.19 in, 4.8 mm
  • Tongue Type: Straight
  • Tongue Width: 1.2 in, 30.6 mm
  • Type: Mechanical Lug
  • Width: 1.2 in, 30.5 mm
One-hole, aluminum, two barrel lug, dual barrel, type LAM2A, NEMA hole sizes and spacing, #14 - 2/0 AWG, 1/4 (6.4mm) stud hole.
QTY
  • Product Description
  • Specifications
One-hole, aluminum, two barrel lug, dual barrel, type LAM2A, NEMA hole sizes and spacing, #14 - 2/0 AWG, 1/4 (6.4mm) stud hole.
  • Specifications
    • Product Segment : IEI
    • Application : Stranded Aluminum or Copper Code Conductor
    • Product Type : Mechanical Lug
    • Base Material : Copper
    • Minimum Aluminum Conductor Size (AWG) : 14
    • Minimum Copper Conductor Size (AWG STR) : 14
    • Maximum Aluminum Conductor Size (AWG) : 2/0
    • Maximum Copper Conductor Size (AWG STR) : 2/0
    • Stud Hole Size (mm) : 6.35
    • Stud Hole Size (In.) : 1/4
    • Number of Holes : 1
    • Number of Ports : 2
    • Tongue Type : Straight Tongue
    • Tongue Angle : Straight
    • Tongue Length (mm) : 21.6
    • Tongue Length (In.) : 0.85
    • Tongue Thickness (In.) : 0.19
    • Tongue Thickness (mm) : 4.8
    • Tongue Width (In.) : 1.2
    • Tongue Width (mm) : 30.6
    • Overall Height (mm) : 19.9
    • Overall Height (In.) : 0.8
    • Overall Length (In.) : 1.47
    • Overall Length (mm) : 37.3
    • Overall Width (In.) : 1.2
    • Overall Width (mm) : 30.5
    • Barrel Type : Two Barrel
    • Barrel Length (In.) : 0.63
    • Barrel Length (mm) : 16
    • Insulation Material : Non-Insulated
    • Finish/Coating : Tin-Plated
    • Standards Met : cULus Listed for use up to 600V & Temperature Rated to 90°C
    • UL Temperature Rating (°C) : 90
    • CSA Temperature Rating (°C) : 90
    • Maximum Voltage (V) : 600
    • Hex Size (mm) : 4.8
    • Hex Size (In.) : 3/16
    • Sub Brand : Pan-Lug™
    • Wire Strip Length (mm) : 15.7
    • Wire Strip Length (In.) : 0.62
  • Packaging Details
    • UPC : 07498359253
    • GTIN Package : 00074983592531
    • Standard Package Volume Ft3 : 0.0313
    • Standard Package Weight Pounds : 0.4602
    • Std Package Height In : 3.55
    • Std Package Height MM : 90.17
    • Std Package Length In : 4.75
    • Std Package Length MM : 120.65
    • Std Package Width In : 3.35
    • Std Package Width MM : 85.09
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 6
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : IN
    • RoHS Compliant : Compliant
    • EAN : 00074983592531
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1
