CuButtSplice,Long,#1AWGPKG20

CuButtSplice,Long,#1AWGPKG20

PANSCL1E SCL1-E 074983904464
8.76 / EA
  • Type: Compression Connectors - Splices

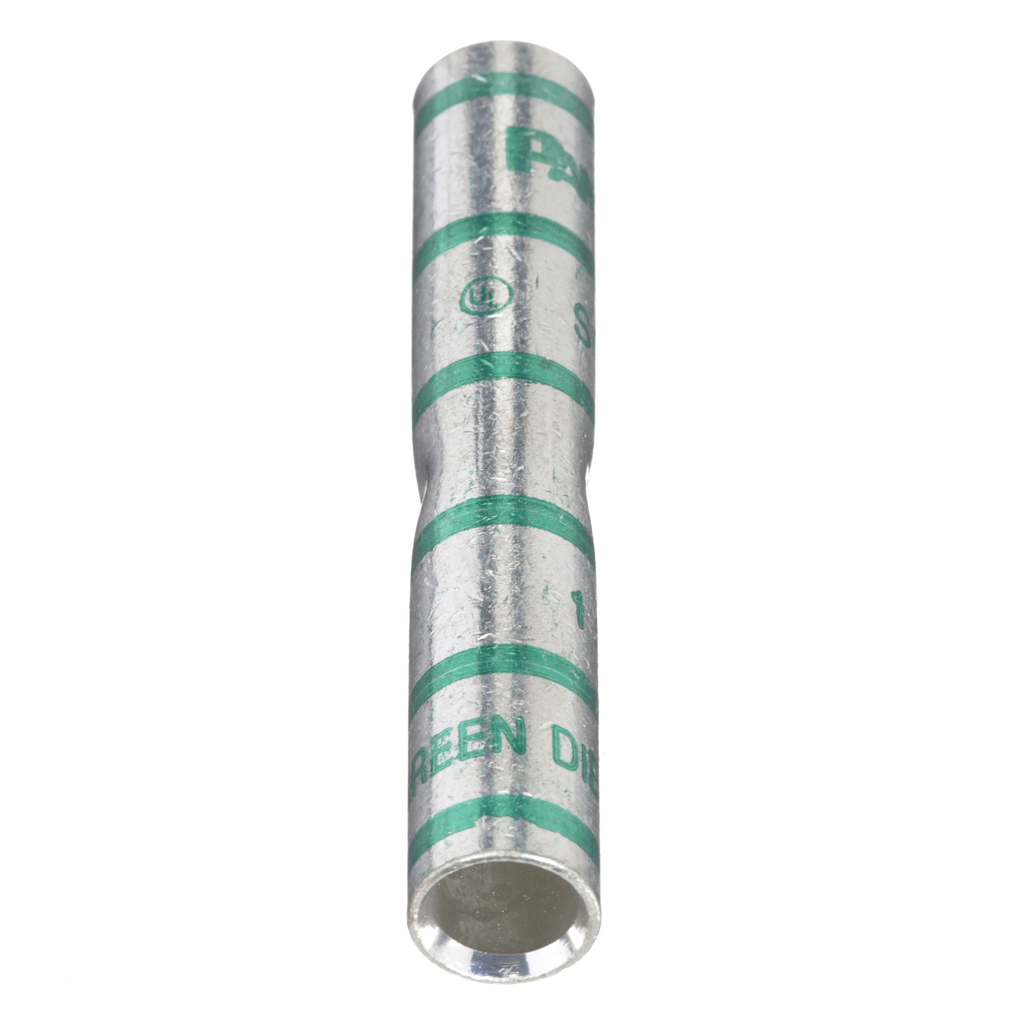

Copper butt splice, long barrel, #1 AWG wire.
  • Product Description
  • Specifications
Copper butt splice, long barrel, #1 AWG wire.
  • UL Temperature Rating (°F) : 194
  • Burndy Die Index Number : 11
  • Barrel Type : Standard
  • Product Segment : IEI
  • Maximum Voltage (kV) : 35
  • UNSPSC : 39121449
  • Copper Conductor Size (kcmil) : 83.69
  • Copper Code Conductor Size (AWG) : #1
  • Overall Length (mm) : 72.9
  • Sub Brand : Pan-Lug
  • Wire Strip Length (In.) : 1 3/8
  • Standards Met : UL Listed for Power and Grounding Applications in the U.S. and Canada; Meets UL467 Requirements for Grounding
  • CSA Temperature Rating (°F) : 194
  • Copper Conductor Size (AWG) : 83.69
  • Panduit Die Index Number : P37
  • UL Temperature Rating (°C) : 90
  • CSA Temperature Rating (°C) : 90
  • Wire Strip Length (mm) : 34.9
  • Product Type : Compression Connectors - Splices
  • Color Code : Green
  • Finish/Coating : Tin-Plated
  • Overall Length (In.) : 2.87
  • Base Material : Copper
  • Packaging Details
    • Country of Origin 2Digit : MX
    • California Pro65 Cancer : No
    • Lead Content Indicator : N
    • Standard Carton Volume Ft3 : 0.0328
    • EAN : 00074983904464
    • REACH Status : False
    • GTIN Package : 00074983904464
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • UPC : 07498390446
    • Standard Package Weight Pounds : 1.4600
    • Std Package Height MM : 83.82
    • Buy American Compliant : Y
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std Carton Length MM : 118.11
    • Min Order Qty : 1
    • Standard Package Volume Ft3 : 0.0328
    • ARRA Compliant : Y
    • Std Package Height In : 3.3
    • Restricted Use of Hazardous Substances : N
    • Std Package Width MM : 86.36
    • Std. Pkg. Qty. : 20
    • RoHS Compliant : Compliant
    • Hazardous Material Flag : N
    • Min. Order UOM : Piece
    • Std Package Length In : 4.65
    • Std Package Width In : 3.4
    • Std Package Length MM : 118.11
    • Mercury Content Indicator : No
