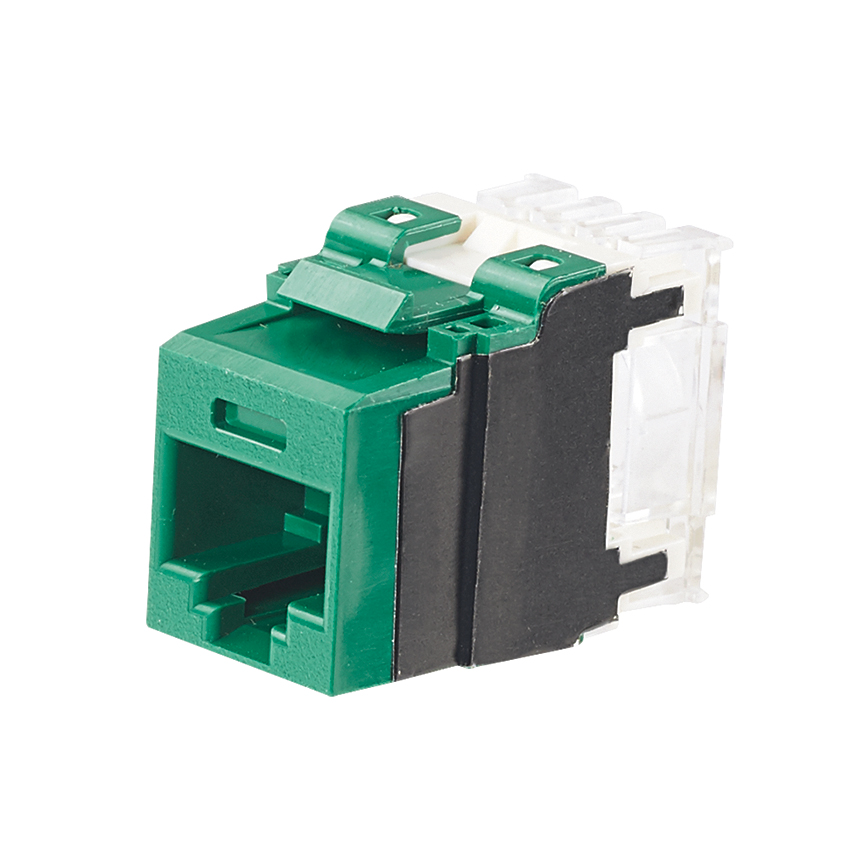

The NetKey® Cat 6A UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22–26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack module is green.

• Standards and Certifications
• Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.

• Specifications
• Any Reason Not to Sell : N
• Product Segment : EDI-ENT
• Maximum Storage Temperature (°F) : 167
• Overall Length (mm) : 29.5
• Overall Width (mm) : 16.5
• Contact Material : Plated Phosphor Bronze
• Module Type : Keystone
• Overall Height (mm) : 22.9
• Overall Depth (mm) : 29.5
• Overall Depth (In.) : 1.16
• Maximum Operating Temperature (°C) : 75
• Minimum Storage Temperature (°F) : -40
• Minimum Storage Temperature (°C) : -40
• Connector Type : Jack Module - Standard
• Product Type : Jack Module
• Maximum Storage Temperature (°C) : 75
• Minimum Operating Temperature (°C) : -10
• Performance Level : Category 6A
• Note : Punchdown style termination
• Color : Green
• Wiring Scheme : T568A/T568B
• Sub Brand : NetKey®
• Shield Type : Unshielded (UTP)
• Minimum Operating Temperature (°F) : 14
• Termination Style : Punchdown
• Overall Width (In.) : 0.65
• Maximum Operating Temperature (°F) : 167
• Overall Height (In.) : 0.9
• Body Material : Polycarbonate
• Overall Length (In.) : 1.16
• Packaging Details
• UPC : 07498372224
• GTIN Package : 00074983722242
• Standard Package Volume Ft3 : 0.0032
• Standard Package Weight Pounds : 0.0240
• Std Package Height In : .85
• Std Package Height MM : 21.59
• Std Package Length In : 3.6
• Std Package Length MM : 91.44
• Std Package Width In : 2.65
• Std Package Width MM : 67.31
• Std. Pkg. UOM : Piece
• UOM EA PK : EA
• Std. Pkg. Qty. : 1
• GTIN Carton : 50074983722247
• Standard Carton Volume Ft3 : 0.1605
• Standard Carton Weight Pounds : 1.2000
• Std Carton Height In : 3.3
• Std Carton Height MM : 83.82
• Std Carton Length In : 10.7
• Std Carton Length MM : 271.78
• Std Carton Width In : 7.6
• Std Carton Width MM : 193.04
• Std Ctn Qty : 50
• Min. Order UOM : Piece
• Country of Origin 2Digit : US
• EAN : 00074983722242
• REACH Status : N
• ARRA Compliant : Y
• Mercury Content Indicator : N
• Hazardous Material Flag : N
• Min Order Qty : 10.0000
• Pallet Quantity : 16,800
• Pallet Volume : 53.918715
• Pallet Weight : 403.2000
• RoHS Compliant : Compliant
