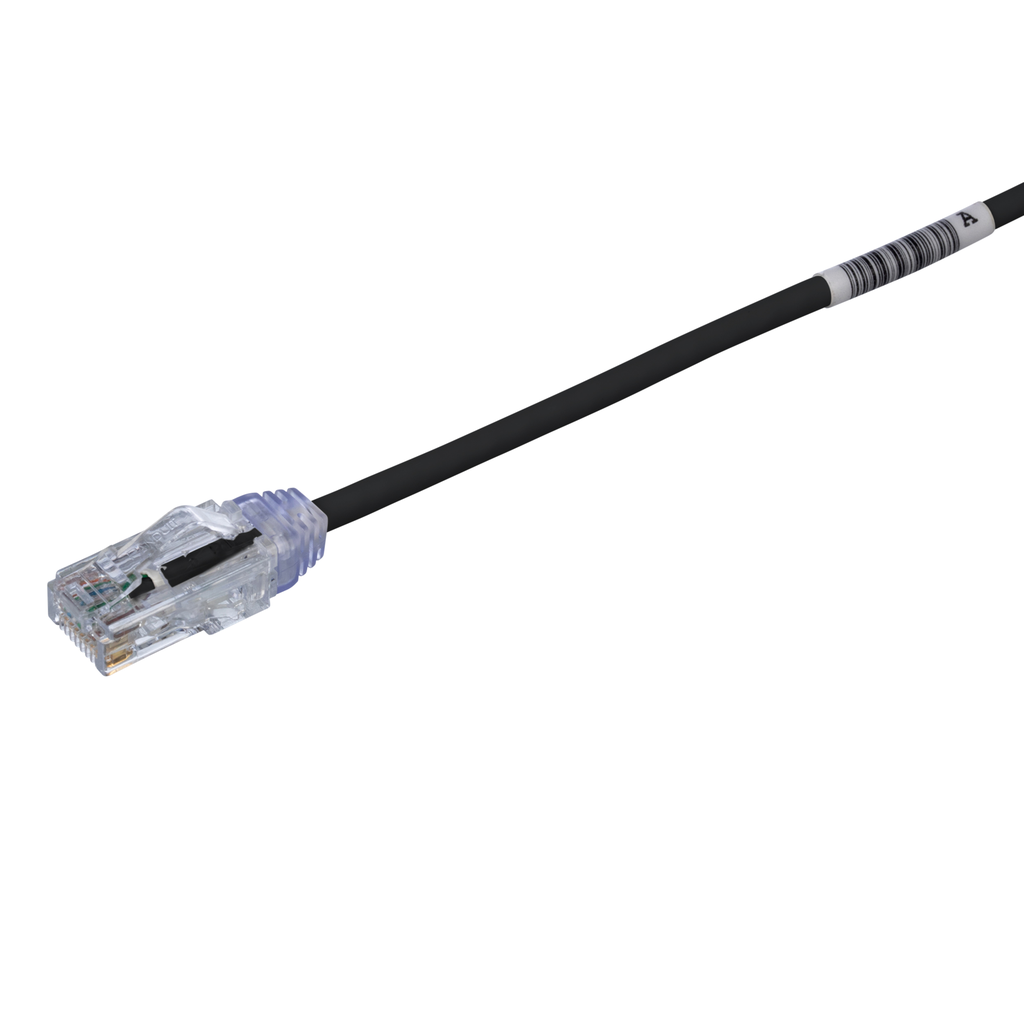

The TX6-28™ Cat 6 UTP Patch Cord is a 15-Foot, 0.150-inch (3.8mm) diameter, Black cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

• Packaging Details
• UPC : 07498365312
• GTIN Package : 00074983653126
• Standard Package Volume Ft3 : 0.0273
• Standard Package Weight Pounds : 0.2300
• Std Package Height In : .9
• Std Package Height MM : 22.86
• Std Package Length In : 9
• Std Package Length MM : 228.6
• Std Package Width In : 8.6
• Std Package Width MM : 218.44
• Std. Pkg. UOM : Piece
• UOM EA PK : EA
• Std. Pkg. Qty. : 1
• GTIN Carton : 50074983653121
• Standard Carton Volume Ft3 : 0.2728
• Standard Carton Weight Pounds : 2.3000
• Std Carton Height In : 4.6
• Std Carton Height MM : 116.84
• Std Carton Length In : 10.35
• Std Carton Length MM : 262.89
• Std Carton Width In : 10.25
• Std Carton Width MM : 260.35
• Std Ctn Qty : 10
• Min. Order UOM : Piece
• Country of Origin 2Digit : CR,CN,RO
• RoHS Compliant : Compliant
• EAN : 00074983653126
• REACH Status : False
• California Pro65 Cancer : No
• ARRA Compliant : Y
• Mercury Content Indicator : No
• Hazardous Material Flag : N
• Min Order Qty : 10
• Pallet Quantity : 1,760
• Pallet Volume : 48.005630
• Pallet Weight : 404.8000
• Specifications
• Product Segment : EDI-ENT
• Product Type : Patch Cord
• Application : (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digital video and broadband/baseband analog video (4) Voice over Internet Protocol (VoIP)
• Conductor Gauge (AWG) : 28
• Conductor Gauge (kcmil) : 0.16
• Performance Level : Category 6
• Conductor Type : Stranded
• Cable Construction : U/UTP
• Patch Cord Type : Unshielded
• Plug Housing Material : Polycarbonate
• Jacket Material : LSZH Material
• Connector 1 Type : Modular Plug
• Connector 2 Type : Modular Plug
• Overall Length (ft.) : 15
• Sub Brand : Pan-Net®
• Nominal Cable Outside Diameter (In.) : 0.15
• Wiring Scheme : T568B
• Maximum Operating Temperature (°F) : 140
• Minimum Operating Temperature (°F) : 14
• Maximum Storage Temperature (°F) : 158
• Minimum Storage Temperature (°F) : -40
• Boot Color : Clear
• Color : Black
• Flammability Rating : Dual Rated (CM/LSZH)
• Standards Met : Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
• IEC Variant : 60603-7
• PoE Compatibility : IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt Type 3 and 4 (PoE++)
• Plug Type : 8 Position
• RapidID™ Enabled : Yes
