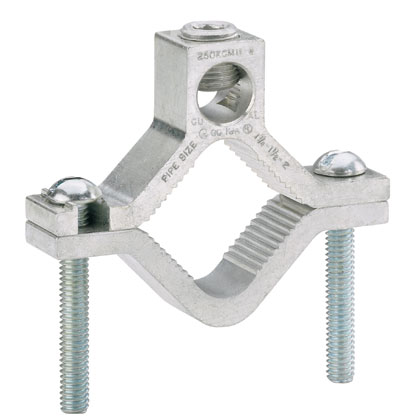

StructuredGround™ GC-18A-X Grounding Clamp

GRND CLMP #6-250

PANGC18AX GC-18A-X 074983451388
25.19 / EA
http://schema.org/OutOfStock
Mayer-DDS-StructuredGround™ GC-18A-X Grounding Clamp-1
  • Country of Origin: USA
  • Material: Aluminum
  • Overall Length: 3.75 in, 95.3 mm
  • Type: Grounding Clamp
  • Width: 0.81 in, 20.6 mm
Aluminum dual rated ground clamp, type GC, conduit pipe or water tube size 1 1/4" – 1", 1/2" – 2".
QTY
  • Product Description
  • Specifications
Aluminum dual rated ground clamp, type GC, conduit pipe or water tube size 1 1/4" – 1", 1/2" – 2".
  • Packaging Details
    • UPC : 07498345138
    • GTIN Package : 00074983451388
    • Standard Package Volume Ft3 : 0.1167
    • Standard Package Weight Pounds : 3.4500
    • Std Package Height In : 4.95
    • Std Package Height MM : 125.73
    • Std Package Length In : 7
    • Std Package Length MM : 177.8
    • Std Package Width In : 5.2
    • Std Package Width MM : 132.08
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US
    • RoHS Compliant : RoHS directive is not applicable
    • EAN : 00074983451388
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 1
    • Pallet Quantity : 4,320
    • Pallet Weight : 1,490.4000
  • Specifications
    • Product Segment : IEI
    • Sub Brand : StructuredGround™
    • Product Type : Grounding Clamp
    • Material : Aluminum
    • Finish/Coating : Tin-Plated
    • Overall Length (mm) : 95.3
    • Overall Length (In.) : 3.75
    • Overall Width (In.) : 0.81
    • Overall Width (mm) : 20.6
    • Maximum Compatible Conductor Size (kcmil) : 250
    • Minimum Compatible Conductor Size (AWG STR) : 6
    • Maximum Compatible Pipe Diameter (In.) : 2
    • Maximum Compatible Pipe Diameter (mm) : 50.8
    • Minimum Compatible Pipe Diameter (In.) : 1.25
    • Minimum Compatible Pipe Diameter (mm) : 31.75
    • Standards Met : UL 467 listed
    • Application : Utility/Ground Grid
    • Maximum Compatible Conduit Size (mm) : 50.8
    • Maximum Compatible Conduit Size (In.) : 2
    • Minimum Compatible Conduit Size (mm) : 31.75
    • Minimum Compatible Conduit Size (In.) : 1.25
    • Note : Not for ground rods, for conduit pipe or water tube sizes 1 1/4 - 1, 1/2 - 2
