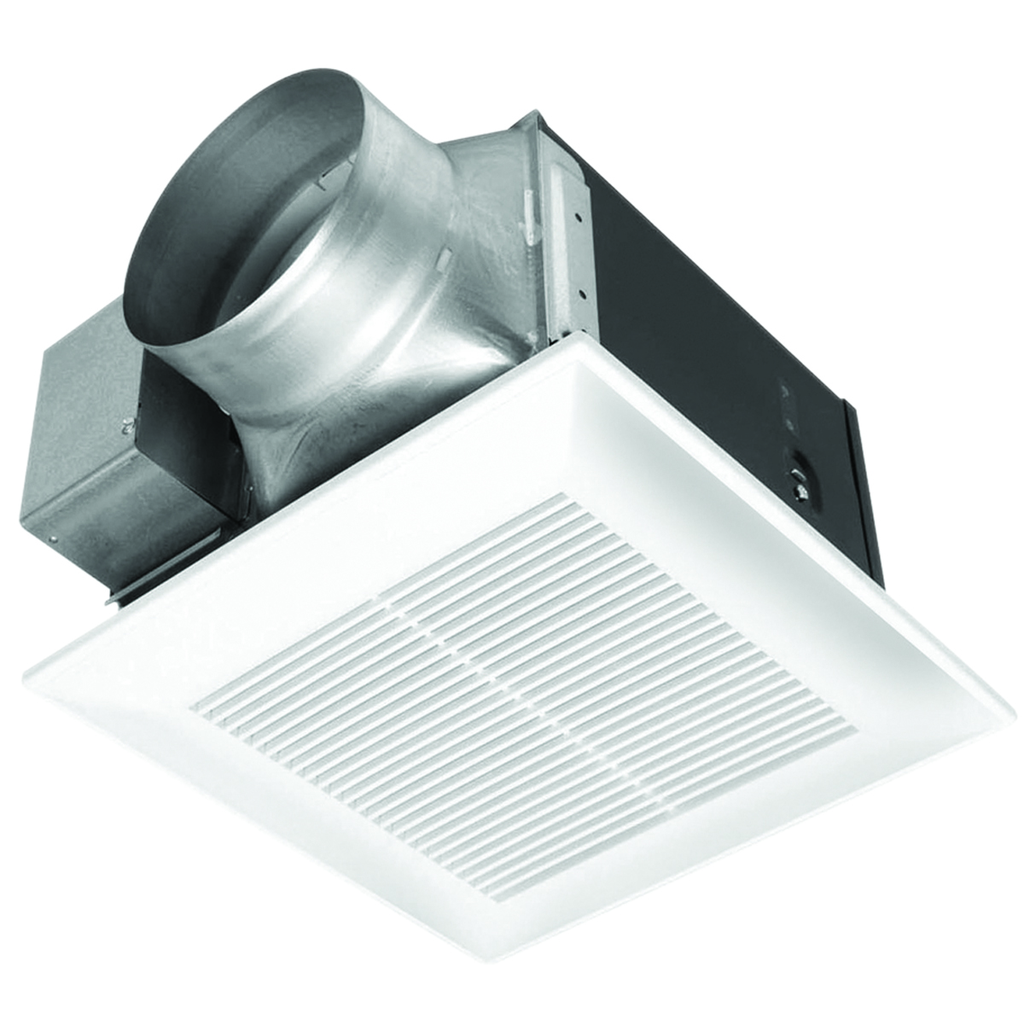

WhisperCeiling 190 CFM large volume ceiling mount fan is a time-tested and customer approved powerful, yet quiet and energy efficient solution. Ideal for light commercial applications, it incorporates a 6 in. duct adapter and can be used to comply with the latest codes and standards.

• Features
• Large volume (190) CFM options designed for light commercial applications
• UL listed for tub/shower enclosure when GFCI protected
• Can be used to comply with ASHRAE 62.2, LEED, IAP, EarthCraft, California Title 24 and WA Ventilation Code
• WhisperCeiling™ large volume exhaust fans are ideal for light commercial applications. The workhorse of the Panasonic line, they are time-tested and customer approved for their quiet, yet powerful consistency. Rated for continuous use, WhisperCeiling vent fans are a simple way to incorporate an energy efficient ventilation strategy.
• WhisperCeiling fans feature a totally enclosed condenser AC motor and a double-tapered blower wheel to quietly move air-even at twice the static pressure as the industry standard. WhisperCeiling exceeds the performance measurement for ASHRAE 62.2, ENERGY STAR® 3.0, and LEED for Homes.
• When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.
• WhisperCeiling large volume fans feature a 6 in. duct adapter and fit in 2x8 construction. The double hanger-bar system (expandable up to 24 in.) is ideal for positioning the fan exactly where you want it. Panasonic fans are UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up.
• ENERGY STAR® certified vent fans meet strict parameters set by the US Environmental Protection Agency. Panasonic ventilation fans are ENERGY STAR® certified where guidelines exist, and provide greater efficiency and comfort with less noise. High performing motors and improved blade design deliver superior performance and long life you expect from a premium Panasonic ventilation fan.

• Specifications
• Advanced Features : Single Speed
• Air Volume Exhaust (CFM) : 190 @ 0.1" SP, 145 @ 0.25" SP
• Master Carton Dimensions (HxWxD) : 19-7/16" x 15-1/2" x 12-1/8"
• CFM : Greater than 150
• Other Approved Codes and Standards : ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
• Construction Type : single Family/ Manufactured Housing/. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling
• Current (Amps) : 0.34A
• Ventilation Design Approach : Continuous Ventilation. Spot Ventilation
• Duct Diameter : 6"
• Energy Efficiency (CFM/Watt) : 4.6 CFM/W
• ENERGY STAR® Certified : Yes
• Fan Type : Fan Only
• Grille Size (in sq.) : 15
• Industry : Residential. Light Commercial
• Installation : Ceiling
• Motor Type (AC/DC) : AC
• Mounting Opening (in sq.) : 12-3/16"
• Mounting Options : Ceiling Mount. Tub Shower (UL)
• Noise (Sones) : 190 @ 0.1" SP = 0.8, 145 @ 0.25" SP = 1.4
• Power Consumption (Watts) : 43.7W
• Power Rating (V/Hz) : 120/60
• Product Family Name : WhisperCeiling
• Radiation Damper Available : No
• UL Listed for Tub/Shower Enclosure when GFCI Protected : Yes
• Warranty : 3 Year Parts,
• Master Carton Gross Weight (lbs.) : 16.8
