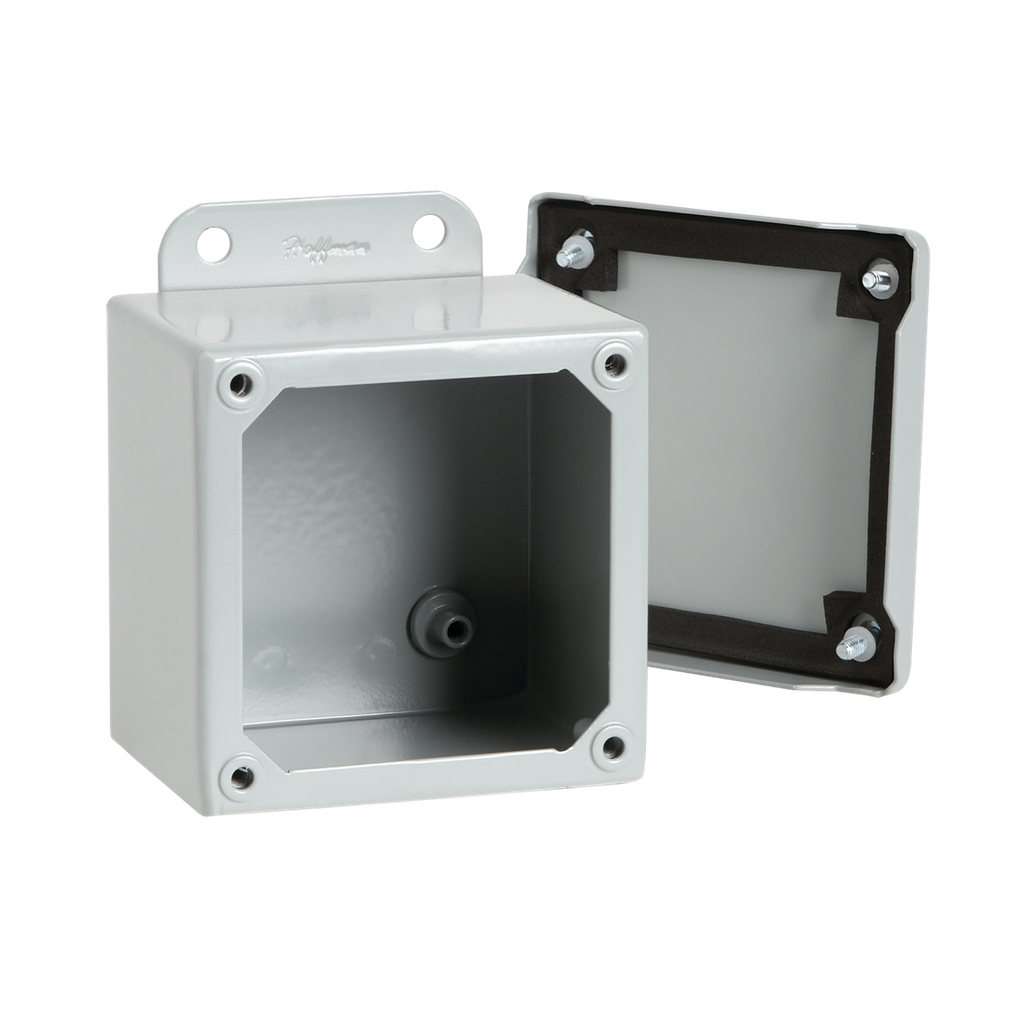

Screw Cover, Type 12

Screw Cover, Type 12

HOFA1210SC A1210SC 783510543709
141.00 / Each
  • Depth: 5 cm
  • Gauge: 14 AWG
  • Height: 12 in
  • IP Rating: IP65
  • Material: Steel
  • NEMA: 12
  • Standard: 13, 50E Listed, CSA, CUL Listed Per CSA C22.2 No. 94, F, File No. E27525, File No. E61997, NEMA/EEMAC: Type 12 And 13, Type 12, UL 50, UL 508A Listed
  • Width: 10 in
  • Features
  • Specifications
  • External wall-mounting brackets for easy installation
  • Seams continuously welded and ground smooth
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
  • Oil-resistant gasket
  • Bonding provision on cover
  • 16 or 14 gauge steel
  • ANSI 61 gray polyester powder paint inside and out
  • Ideal for a broad range of applications, this enclosure’s screw cover is secured in each corner for a positive seal but easily removed for modifications.
  • Hoffman excels at modifying and customizing products to your specifications. Contact your local Hoffman sales office or distributor for complete information.
  • A10JBNS
  • A12JS
  • A12P10AL
  • A12JTMA
  • APLKJIC6SS
  • A12P10C
  • A10JTMA
  • A12P10G
  • A12P10SS
  • A10JTMAXK
  • A10JS
  • AJCDFK
  • A12JBNS
  • AS050
  • APLKJIC
  • A12P10
  • Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.
  • Material : Steel
  • IP Rating : IP65
  • Bulletin Number : A51SC
  • Model Code : 54370
  • Ship Wt. Std. Pkg. (lbs) : 48.0
  • UL Listed : 50, 50E
  • Interchangeable : False
  • Industry Standards : UL 50, 50E Listed; Type 12, 13; File No. E27525 cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E27525 UL 508A Listed; Type 12, 13; File No. E61997 cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997 NEMA/EEMAC: Type 12 and 13 CSA, File No. 42184: Type 12 IEC 60529, IP65
  • Conductive Panel : A12P10G
  • K in. : 0.67
  • V in. : 0.25
  • F in. : 4.53
  • Width (B) in. : 10
  • T in. : 9.00
  • Overall L x W in. : 13.50 x 10.28
  • Panel Size D x E in. : 10.75 x 8.88
  • Height (A) in. : 12
  • J in. : 4.51
  • Panel : A12P10
  • Depth (C) in. : 5
  • Gauge : 14
  • Mounting G x H in. : 12.75 x 8.00
  • Y in. : 0.62
