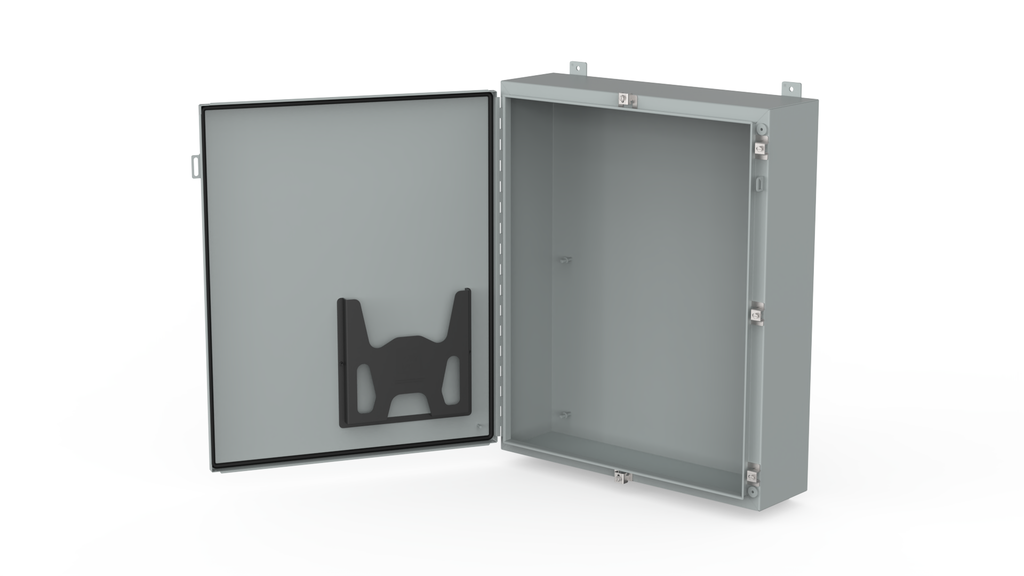

Continuous Hinge Enclosure with Clamps LP Type 12, 20x20 8, Gray, Mild Steel

BOX - TYPE 12 HINGE 20X20X8

HOFA202008LP A202008LP 783510281700
770.91 / Each
http://schema.org/OutOfStock
Mayer-DDS-Continuous Hinge Enclosure with Clamps LP Type 12, 20x20 8, Gray, Mild Steel-1
  • Depth: 203 mm, 8 in
  • Finish: Powder Coat
  • Height: 10.00 in, 20 in, 508 mm
  • Length: 25.70 in
  • Material: Steel
  • Protection Rating: NEMA Type 12
  • Thickness: 1.9 mm
  • Weight: 34 lb, 34.00 lb
  • Width: 20 in, 21.00 in, 508 mm
Single door Type 12 enclosures offer access and security with screw-down clamps and padlocking hasp. This Continuous Hinge Enclosure with Clamps LP Type 12, A202008LP item measures 20x20 8 inches with a material of Steel colored Gray.
QTY
  • Product Description
  • Features
  • Specifications
Single door Type 12 enclosures offer access and security with screw-down clamps and padlocking hasp. This Continuous Hinge Enclosure with Clamps LP Type 12, A202008LP item measures 20x20 8 inches with a material of Steel colored Gray.
  • Accessory
    • LED24V15
    • A20P20G
    • A20P20
    • AFC412SS
    • APWK133NF
    • APWK1212H
    • APWK138NFSS
    • APWK711NFSS
    • APWK53NFSS
    • APWK138NF
    • APWK138NFNM
    • APWK53NFNM
    • APWK95NFNM
    • APWK53NF
    • APWK1612H
    • AWDH1418N4
    • APWK116NFNM
    • AWDH1612N4
    • APWK95NF
    • AWDH1418N4SS
    • APWK95NFSS
    • AWDH1612N4SS
    • APWK715NFSS
    • ALFSWD
    • ADSTOPK
    • GP126
    • AASHLF1218
    • AA61SHLF1218
    • GP128
    • GP166
    • AA35SHLF1218
    • GP208
    • GP206
    • AA61SHLF1818
    • DLGP610
    • AASHLF1818
    • GP168
    • AA35SHLF1818
    • ADK20A
    • AHCI240R
    • AHCI238S
    • AHCI1DV
    • AHCI60R
    • AHCI5E
    • AHCI10E
    • A20T
    • LEDA2S35
    • LEDA1S35
    • A20NTMA2
    • APE050
    • ATZ
    • APE100
    • AS050
    • ANADFK
  • Features
    • Seams continuously welded and ground smooth
    • External wall-mounting brackets for easy installation
    • Formed external return flanges around all sides of enclosure opening
    • Screw-down door clamps
    • Removable heavy-gauge continuous hinge pin
    • Hasp and staple for padlocking
    • Data pocket is high-impact thermoplastic
    • Collar studs provided for mounting optional panels
    • Bonding provision on door
    • Removable door with continuous hinge
    • Seamless foam-in-place gasket
  • Specifications
    • Length : 25.70 inch
    • Width : 21.00 inch
    • Height : 10.00 inch
    • Weight : 34.00 pound
    • Height (H) (inch) : 20
    • Height (H) (millimetre) : 508
    • Width (W) (inch) : 20
    • Width (W) (millimetre) : 508
    • Depth (D) (inch) : 8
    • Depth (D) (millimetre) : 203
    • Protection Rating : NEMA Type 12
    • Material : Mild Steel
    • Finish : Powder Coated
    • Exterior Color : Gray
    • Exterior Color Code : ANSI 61
    • Interior Color : White
    • Thickness (T) (gauge) : 14
    • Thickness (T) (millimetre) : 1.9
    • NEMA Rating : 12 Indoor, dust-resistant
    • Panel : A20P20
    • Conductive Panel : A20P20G
    • Panel Size (D x E) (inch) : 17.00 x 17.00
    • Panel Size (D x E) (millimetre) : 432 x 432
    • Clamp Quantity : 2
    • Data Pocket : Small
    • Modification Services : Yes
    • Type Number : Type 13
    • IP Rating : IP65
    • Weight (pound) : 34
    • Size : 20.00x20.00 8.00 in
