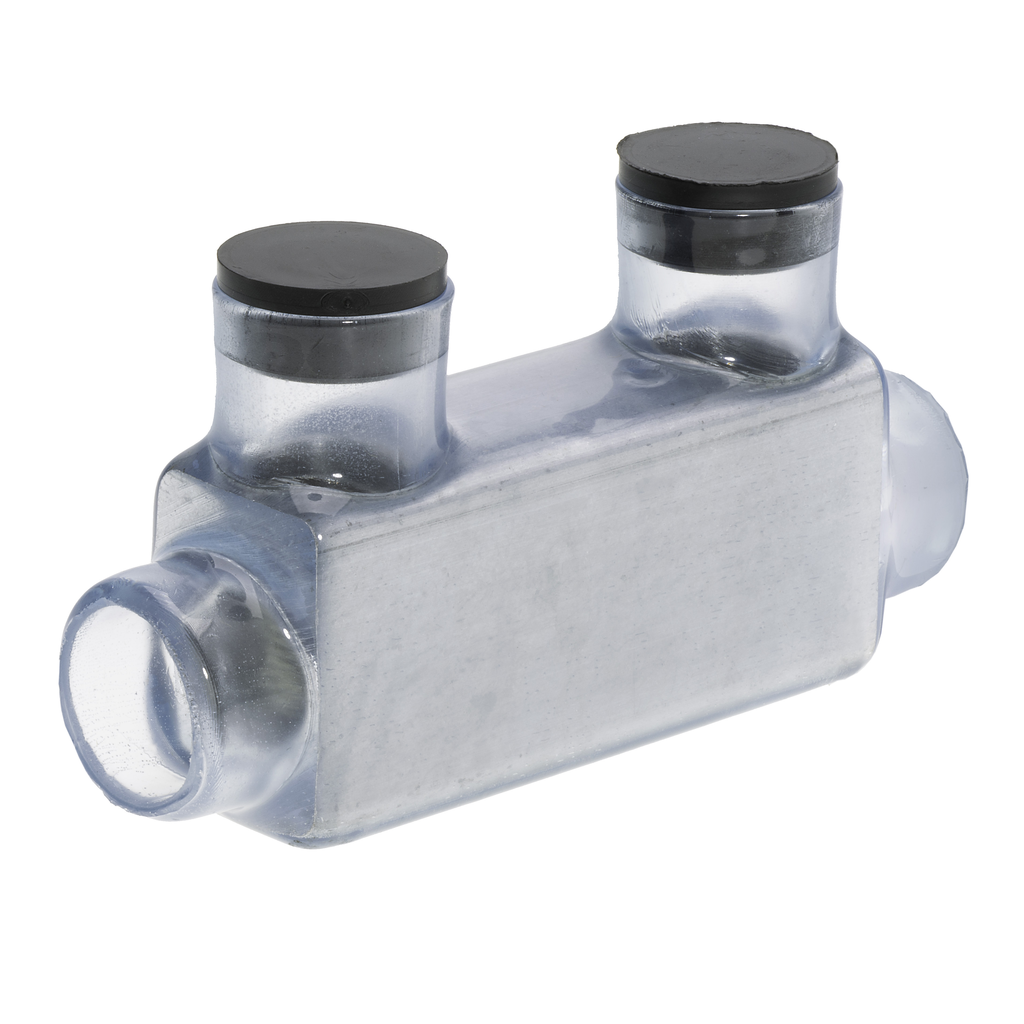

2-Port Clear In-Line Pre-Insulated Connector, 250 MCM-6 AWG

POLARIS VISION TAP SPLICE 250

NSIISR250C ISR-250C 662381996466
42.02 / EA
http://schema.org/OutOfStock
Mayer-DDS-2-Port Clear In-Line Pre-Insulated Connector, 250 MCM-6 AWG-1
  • Country of Origin: USA
  • Finish: Plastisol Insulated
  • Height: 2.29 in
  • Length: 3.95 in
  • Material: Aluminum
  • Voltage: 600 V
  • Warranty Length: 1 yr
  • Weight: 2.15 lb
  • Width: 1.21 in
The Polaris ISR-250C Multi-Tap Multi-Tap In-Line Entry Connector features 2 ports sized for 250 MCM - 6 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each in-line port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
QTY
  • Product Description
  • Features
  • Specifications
The Polaris ISR-250C Multi-Tap Multi-Tap In-Line Entry Connector features 2 ports sized for 250 MCM - 6 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each in-line port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
  • Certifications and Standards
    • cULus
    • Meets NEC 230.46 Suitable for Line Side of Service
    • UL 486A/B
  • Additional Notes
    • Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
  • Specifications
    • Country of Origin : United States
    • Length : 3.95 in
    • Width : 1.21 in
    • Height : 2.29 in
    • Weight : 2.15 lbs
    • Clear Exterior : Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
    • In-Line Wire Entry : Form secure connections between 2 conductors quickly using the in-line entry ports sized for wires between 250 MCM and 6 AWG
    • Ergonomic Design : Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
    • Pre-filled Oxide Inhibitor : Both in-line ports are covered by removable plugs and pre-filled with an oxide inhibitor gel to protect against corrosion, debris or moisture
    • Professional Performance : Save time and labor when splicing or reducing in-line wires made from copper or aluminum, in a wide range of applications
    • Collection Folder : ISR-250C
    • NPD Date Electrical : 12/31/2018 00:00:00
    • MATERIAL : Aluminum
    • INNER HEIGHT : 2.85
    • WARRANTY : 1 Year
    • Division : Electrical H1
    • Field Application : Splice
    • UL File # : E186991
    • INNER WEIGHT : 1.29
    • COLOR : Clear
    • INNER WIDTH : 4.5
    • FINISH : Plastisol Insulated
    • INNER LENGTH : 5.85
    • Sub-Division : Electrical-E H2
    • VOLTAGE RATING : 600 V
    • PRODUCT FAMILY : Connectivity
    • Product Assortment : Clear Coated Pre-Insulated Connectors
    • Product Series : ISR Series
    • Type : In-Line Splicer Reducer
    • Conductor - AL Size Range : 250 MCM - 6 AWG
    • Wire/Cable Class : Class B, Class C
    • Aluminum Conductor Max AMP : 230
    • Number of Conductors/Circuits/Terminals : 2
    • Max Torque Value : 360 IN/LBS
    • Temperature Rating : 90C, AL9CU
    • Environmental Temperature : Cold Temperature rated to -45C
    • Conductor Type : Copper, Aluminum
    • Conductor - CU Size Range : 250 MCM - 6 AWG
    • Copper Conductor Max AMP : 290
    • Hex Wrench Size : 16-May IN
