2-Port Clear Multi-Tap Pre-Insulated Connector, 1/0-14 Gauge

POLARIS VISION TAP 2 PORT 1/0

NSIIT10C IT-1/0C 662381996411
24.31 / EA
http://schema.org/OutOfStock
Mayer-DDS-2-Port Clear Multi-Tap Pre-Insulated Connector, 1/0-14 Gauge-1
  • Country of Origin: USA
  • Finish: Plastisol Insulated
  • Height: 1.74 in
  • Length: 1.68 in
  • Material: Aluminum
  • Voltage: 600 V
  • Warranty Length: 1 yr
  • Weight: 1.55 lb
  • Width: 1.55 in

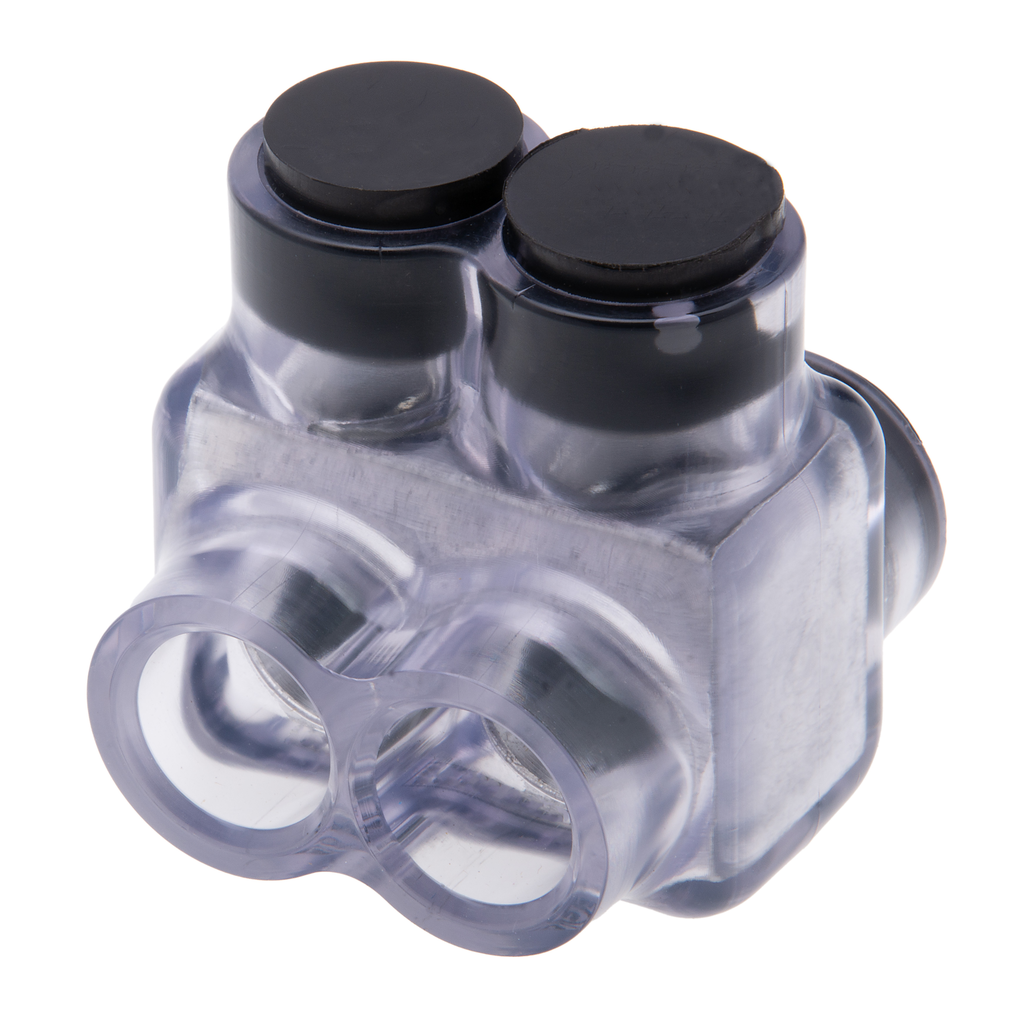

The Polaris IT-1/0C Multi-Tap Dual-Sided Entry Vision Tap Connector features 2 ports sized for 1/0 - 14 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
QTY
  • Product Description
  • Features
  • Specifications
The Polaris IT-1/0C Multi-Tap Dual-Sided Entry Vision Tap Connector features 2 ports sized for 1/0 - 14 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
  • Additional Notes
    • Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
  • Certifications and Standards
    • cULus
    • Meets NEC 230.46 Suitable for Line Side of Service
    • UL 486A/B
  • Specifications
    • Country of Origin : United States
    • Length : 1.68 in
    • Width : 1.55 in
    • Height : 1.74 in
    • Weight : 1.55 lbs
    • Clear Exterior : Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
    • Ergonomic Design : Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
    • Removable Plugs : Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
    • Pre-filled Oxide Inhibitor : Both dual-sided entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
    • Professional Performance : The durable layer of insulation on each Polaris connector is abrasion and chemical-resistant for reliable performance
    • Collection Folder : IT-1/0C
    • NPD Date Electrical : 01/01/2000 00:00:00
    • MATERIAL : Aluminum
    • INNER HEIGHT : 2.45
    • WARRANTY : 1 Year
    • Division : Electrical H1
    • Field Application : Splice
    • UL File # : E186991
    • INNER WEIGHT : 0.81
    • COLOR : Clear
    • INNER WIDTH : 4.45
    • FINISH : Plastisol Insulated
    • INNER LENGTH : 5.7
    • Sub-Division : Electrical-E H2
    • VOLTAGE RATING : 600 V
    • PRODUCT FAMILY : Connectivity
    • Product Assortment : Clear Coated Pre-Insulated Connectors
    • Product Series : IT Series
    • Type : Dual-Side Entry
    • Conductor - AL Size Range : 1/0 AWG - 12 AWG
    • Wire/Cable Class : Class B, Class C
    • Aluminum Conductor Max AMP : 135
    • Number of Conductors/Circuits/Terminals : 2
    • Max Torque Value : 80 IN/LBS
    • Temperature Rating : 90C, AL9CU
    • Environmental Temperature : Cold Temperature rated to -45C
    • Conductor Type : Copper, Aluminum
    • Conductor - CU Size Range : 1/0 AWG - 14 AWG
    • Copper Conductor Max AMP : 170
    • Hex Wrench Size : 16-Mar IN
