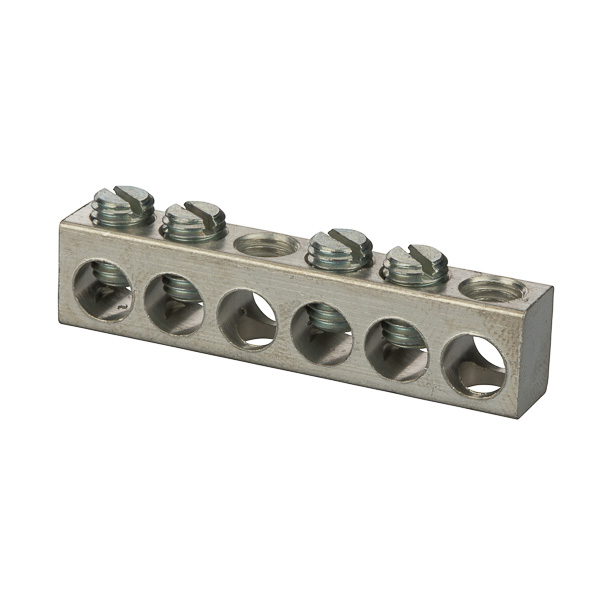

Aluminum 6 Hole Neutral Bar for 4-14 AWG

NSI 4-14(614) 4-14 AWG 6 POSIT

NSI414(614) 4-14-614 662381007063
4.90 / Each
http://schema.org/OutOfStock
Mayer-DDS-Aluminum 6 Hole Neutral Bar for 4-14 AWG-1
  • Country of Origin: USA
  • Finish: Tin-Plated
  • Height: 0.44 in
  • Length: 1.880 in
  • Material: Aluminum
  • Warranty Length: 1 yr
  • Width: 0.310 in
Aluminum Multiple Connector 4-14 AWG with 6 Holes and 4 circuits is made from aluminum bar and can be used in a variety of neutral and grounding applications.Tin plated for low contact resistance and is suitable for use with copper or aluminum conductors.
QTY
  • Product Description
  • Features
  • Specifications
Aluminum Multiple Connector 4-14 AWG with 6 Holes and 4 circuits is made from aluminum bar and can be used in a variety of neutral and grounding applications.Tin plated for low contact resistance and is suitable for use with copper or aluminum conductors.
  • Features
    • Multiple connectors are made from either copper or aluminum bar and can be used in a variety of neutral and grounding applications
    • Aluminum connectors are tin plated for low contact resistance and are suitable for use with copper or aluminum conductors
    • Aluminum connectors are dual rated for use with aluminum and copper cables
    • Copper connectors are suitable for use with copper wire only
    • 4 Circuits
  • Certifications and Standards
    • CSA
    • UL Recognized
  • Specifications
    • Country of Origin : United States
    • Length : 1.880 in
    • Width : 0.310 in
    • Height : 0.44 in
    • Mounting Hole Position : 1 & 4
    • Mounting Base : No
    • Wire Range : 4 AWG - 14 AWG
    • Field Application : Ground, Neutral
    • FINISH : Tin Plated
    • Future Plan : Rebrand as Polaris
    • INNER HEIGHT : 3.0500
    • INNER LENGTH : 8.8000
    • INNER WEIGHT : 2.9050
    • INNER WIDTH : 6.3000
    • MATERIAL : Aluminum
    • Number of Conductors/Circuits/Terminals : 4
    • Product Assortment : Neutral Bars
    • Product Series : 4-14
    • WARRANTY : 1 Year
    • Number of Mounting Holes : 6
    • Hole Spacing : 0.312 IN
    • Conductor Type : Copper, Aluminum
