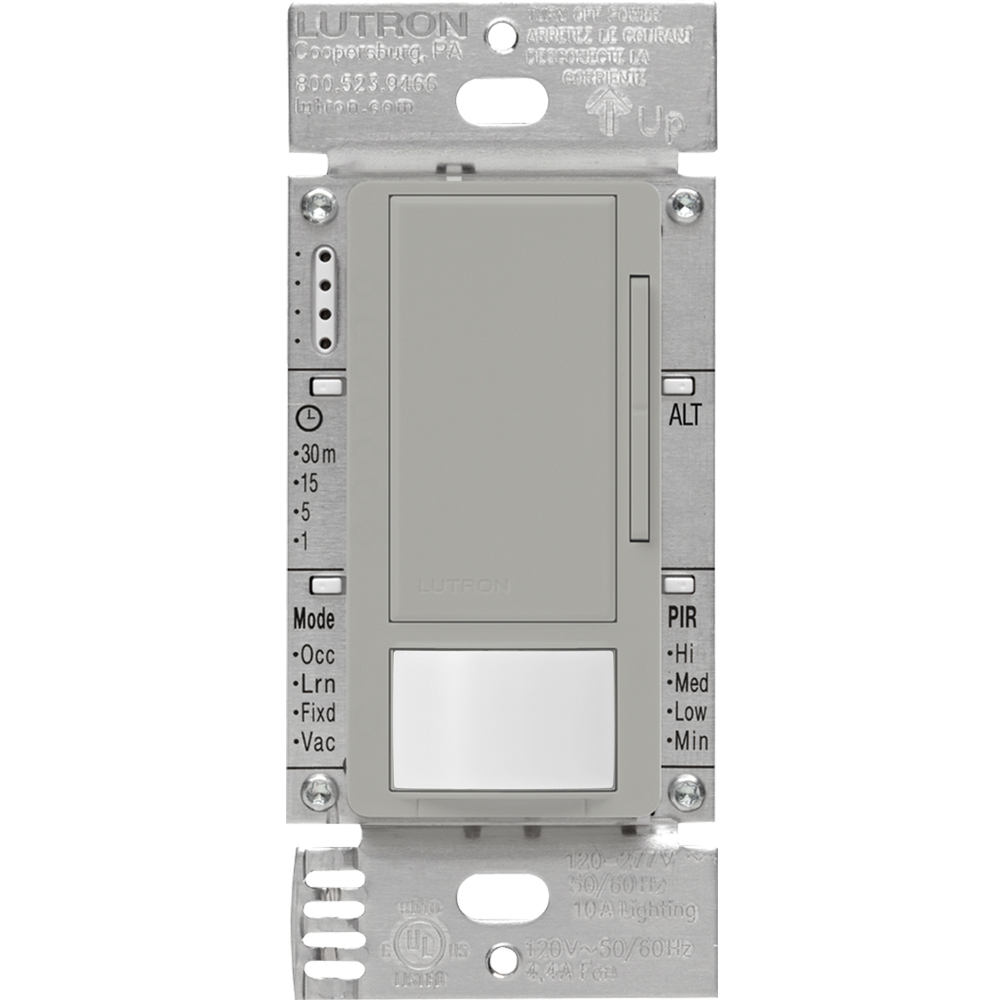

0-10V DIMMER SENSOR GRAY

PIR SENSOR 0-10V 3-WAY

LUTMSZ101GR MS-Z101-GR 784276099882
91.68 / Box
http://schema.org/OutOfStock
  • Applications: Lighting
  • Body Material: Plastic
  • Enclosure Material: Plastic
  • Mounting Type: Wallbox
  • Operating Temperature: 0 °C, 104 °F, 32 °F, 40 °C
  • Power Supply: 120 V, 277 V
Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro 0-10 V dimmer with an occupancy sensor. Controls 1-10 VDC electronic fluorescent ballast or LED driver load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 3, 5, 15, or 30 minutes). Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Adjustable sensitivity level: High, med, low, min. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Adaptive switching algorithm for extended relay life. Smart ambient light detection (ALD). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches. High-end trim and low-end trim to adjust maximum and minimum light levels. Selectable dimming curve-linear or square law. Miswire and incompatible load alert
QTY
  • Product Description
  • Features
  • Specifications
Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro 0-10 V dimmer with an occupancy sensor. Controls 1-10 VDC electronic fluorescent ballast or LED driver load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 3, 5, 15, or 30 minutes). Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Adjustable sensitivity level: High, med, low, min. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Adaptive switching algorithm for extended relay life. Smart ambient light detection (ALD). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches. High-end trim and low-end trim to adjust maximum and minimum light levels. Selectable dimming curve-linear or square law. Miswire and incompatible load alert
  • Features
    • Passive infrared sensors that automatically control the lights in an area
    • These sensors detect heat from occupants moving within an area to determine when the space is occupied
    • Combines a Maestro 0-10 V dimmer with an occupancy sensor
    • Controls 1-10 VDC electronic fluorescent ballast or LED driver load types
    • Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection
    • 180 degree sensor field-of-view
    • Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
    • Can be set to auto-on/auto-off or manual-on/auto-off
    • Adjustable timeout (1, 3, 5, 15, or 30 minutes)
    • Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level
    • Adjustable sensitivity level: High, med, low, min
    • Off warning fades lights to off over a period of 10 seconds
    • Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.)
    • Adaptive switching algorithm for extended relay life
    • Smart ambient light detection (ALD)
    • Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches
    • High-end trim and low-end trim to adjust maximum and minimum light levels
    • Selectable dimming curve-linear or square law
    • Miswire and incompatible load alert
  • Standards and Certifications
    • TITLE20
    • cUL
    • Title 20/24 certified
    • UL
    • TITLE24
  • Specifications
    • Class Code : ED-LSR
    • Application : Lighting Control
    • Body : Plastic
    • Enclosure : Plastic
    • Environmental Conditions : 0 to 90% humidity, non-condensing. Indoor use only.
    • Load : 8 A/0-10VDC
    • Mounting : Wallbox
    • Operating Temperature : 32 to 104 F | 0 to 40 C
    • Sensing Range : 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
    • Sensor : Yes
    • Supply Voltage : 120 to 277 VAC
    • Type : Occupancy/Vacancy sensor dimmer, multi-location/3-way/single-pole, 0-10 V
