LITTELFUSE

354812-GY - 354 OMNI-BLOK Series

FUSEBLOCK 20A 300V 12P

LFU354812GY 354812-GY 079458091847
31.37 / Each
  • Amperage: 20 A
  • Fuse Type: 3AB, 3AG mm
  • Voltage: 600 V

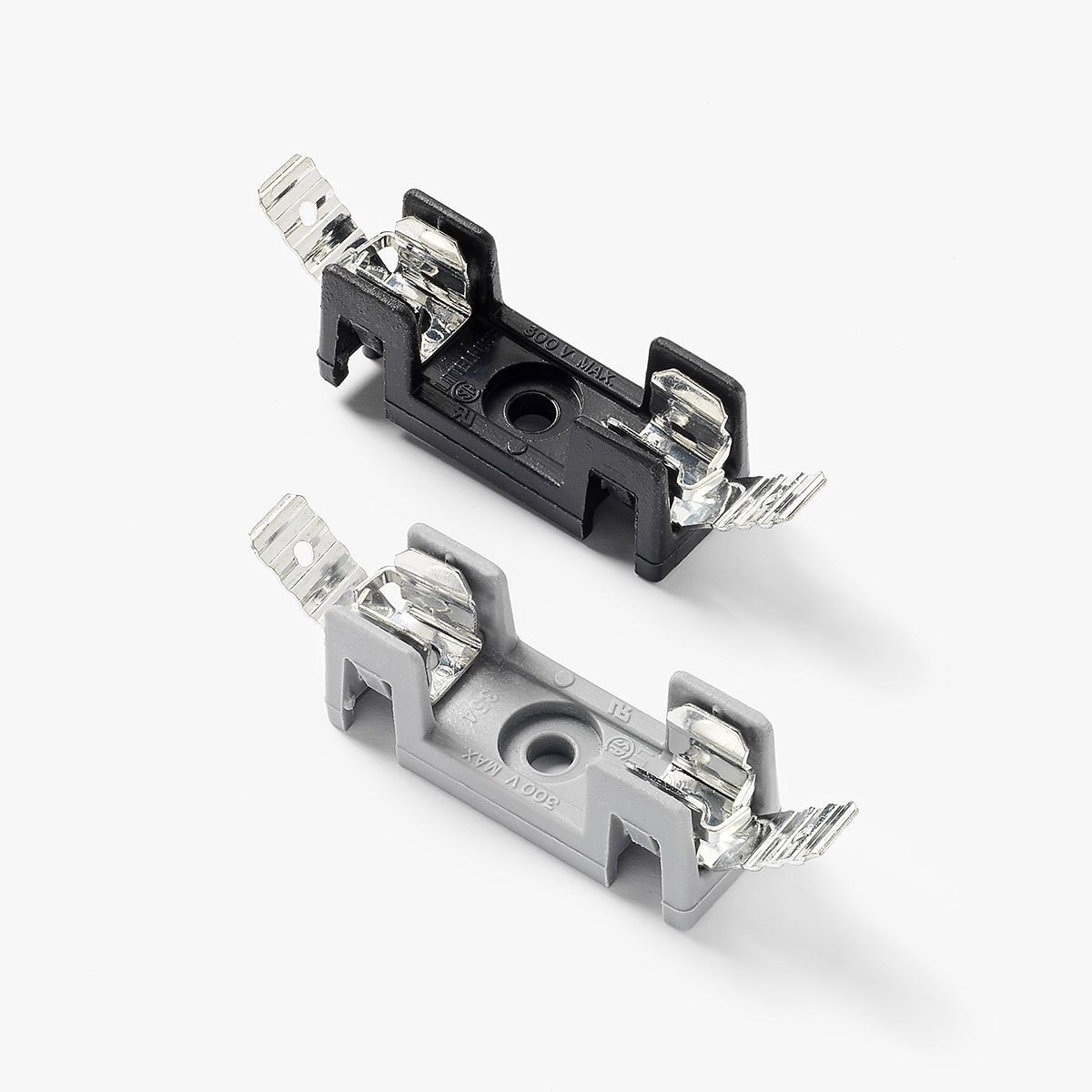

A low profile fuse block featuring individual barriers which reinforce the fuse clips while providing greater protection against clip damage and electrical shock. The unique design permits self-alignment of clips to fuse cap. This, plus a one-piece clip/terminal assures low contact resistance. Higher current ratings have been attained using spring brass clips. With the exception of the two-pole unit, multiple pole units may be broken apart to obtain desired number of poles.
  • Product Description
  • Specifications
A low profile fuse block featuring individual barriers which reinforce the fuse clips while providing greater protection against clip damage and electrical shock. The unique design permits self-alignment of clips to fuse cap. This, plus a one-piece clip/terminal assures low contact resistance. Higher current ratings have been attained using spring brass clips. With the exception of the two-pole unit, multiple pole units may be broken apart to obtain desired number of poles.
  • Mounting Method : Molded Base
  • VAC (V) : 600
  • Indicating : No
  • VDC (V) : 600
  • Ampere Rating (A) : 20
  • Fuse Type : 3AG/3AB (6.3x32mm)
