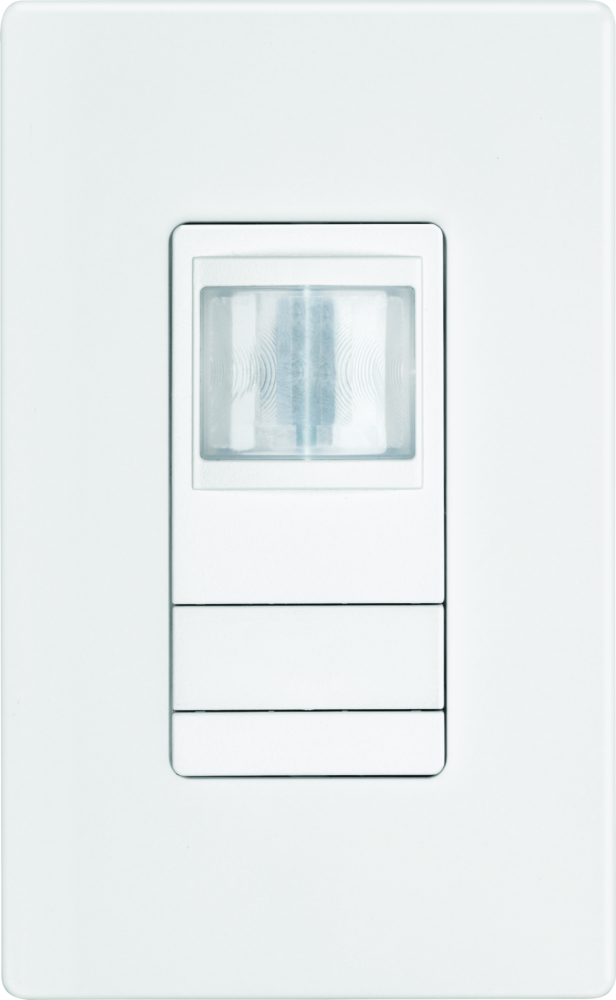

WSXA Wall Switch Sensor

OCCUPANCY WALL SWITCH

LITWSXAWH WSXA WH 194994625902
95.78 / EA
http://schema.org/OutOfStock
  • Country of Origin: Mexico
  • Environment: Indoor
  • Finish: Matte
  • Lamp Life: 87,600 hr
  • Mounting Type: Surface
All WSXA Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private restrooms, closets, copy rooms, or any other small enclosed space
QTY
  • Product Description
  • Features
  • Specifications
All WSXA Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private restrooms, closets, copy rooms, or any other small enclosed space
  • Features
    • WSXA Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection
    • Compatible w/LEDs, electronic & magnetic ballasts, CFLs, & incandescents
    • Compatible with 0-10V dimming luminaries
    • Meets NEC 2017 Section 404.2C neutral requirements (no current leakage to ground when connected to neutral). Aids in IECC and ASHRAE code compliance
    • Mis-wire Protection - interchangeable line and load wires prevent damage to device if line voltage is mis-wired to 0-10V wires
    • Device accommodates powering over ground or neutral connection (patent pending) Ultra-low current leakage (
    • Push-button programmable without removing cover plate - adjustable time delays & operating modes
    • This product does not include an alternate battery option.
    • This product includes a 5 year limited warranty
    • 2.74”H x 1.68”W x 1.63”D (70mm x 43mm x 41mm) - does not include ground strap
    • WSXA units come pre-configured for wiring.
    • New aesthetic with vandal resistant lens
    • Integrated Photocell integration
  • Applications
    • Behavioral Health
    • Education
    • Government
    • Healthcare
    • Hospitality
    • House of Worship
    • Offices & Banks
    • Retail
    • Sports and Recreation
  • Specifications
    • Environment : Indoor
    • Mounting : Surface
    • Mounting Location : Wall
    • Listings : cUL,C-UL-US
    • Is CSA Certified : No
    • Is Energy Star : No
    • Airtight Rating : No
    • Length of Warranty : 5 Year Limited
    • Country Of Origin : MX
    • Contains Mercury : No
    • Expected Life : 87,600 hours
    • Voltage Rating : 120-277
    • Minimum Operating Temperature : 0
    • Maximum Operating Temperature : 60
    • Contains Lithium Battery : No
    • Color : White
    • Finish : Matte
    • Daylight Sensing : No
    • Is Motion Sensing Adjustable : Yes
    • Motion Sensing Field of View : 180 degrees
    • Motion Sensing Distance : 36
    • Fixture Length : 1.63
    • Fixture Width : 1.68
    • Fixture Height : 2.74
    • Fixture Weight : 0.471
