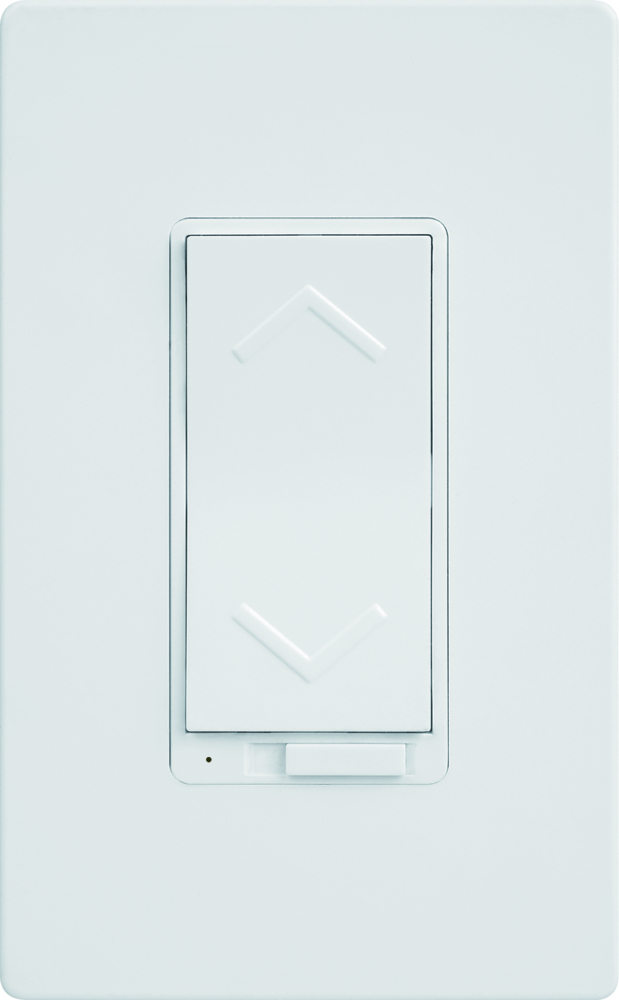

WPD Phase Dimming Wall Switch

DIMMER CFL/LED SP & 3WAY 600W

LITWPDWH 194994217374
67.22 / EA
http://schema.org/OutOfStock
  • Country of Origin: China
  • Environment: Indoor
  • Lamp Life: 87,600 hr
  • Mounting Type: Surface
The WPD allows the user or installer to set high and low trim settings and return to default easily and efficiently. Its elegant design does not compromise function, whereas this device offers extremely smooth dimming control that meets NEMA SSL-7A requirements
QTY
  • Product Description
  • Features
  • Specifications
The WPD allows the user or installer to set high and low trim settings and return to default easily and efficiently. Its elegant design does not compromise function, whereas this device offers extremely smooth dimming control that meets NEMA SSL-7A requirements
  • Features
    • Perfect replacement for regular wall on/off and dimming control of most dimmable incandescent, LED and CFL lamp fixtures
    • Preset light level option allows the dimmer will turn on to the light level that it was adjusted to the previous time when the light was on
    • Program high and low dimming range. Fixtures illuminate according to previously adjusted light levels
    • UL 1472 listed and NEMA SSL 7A certified; air-gap switch feature meets UL requirements and disconnects power from load locally
    • Use with single-pole or 3-way control with a regular on/off mechanical switch (sold separately)
    • 600W maximum dimming load
    • This UL 1472 listed and NEMA SSL 7A certified solution accepts 120VAC line voltage from a single device and includes a sliding air-gap switch to disconnect power while replacing bulbs.
    • This product does not include emergency battery back up features.
    • This product has a 5 year limited warranty
    • 16 mm wire strip, 14 AWG wires
    • The WPD also works with mechanical switches for 3-way wiring.
    • Easy configuration allows the user for effortless installation.
    • Product includes a 3 way controls system
  • Specifications
    • Environment : Indoor
    • Mounting : Surface
    • Mounting Location : Wall
    • Listings : UL
    • Is CSA Certified : No
    • Is Energy Star : No
    • Airtight Rating : No
    • Length of Warranty : 5 Year Limited
    • Country Of Origin : CN
    • Contains Mercury : No
    • Expected Life : 87,600 hours
    • Voltage Rating : 120
    • Minimum Operating Temperature : 0
    • Maximum Operating Temperature : 40
    • Amperage : 2.00
    • Contains Lithium Battery : No
    • Color : White
    • Daylight Sensing : No
