LITHONIA

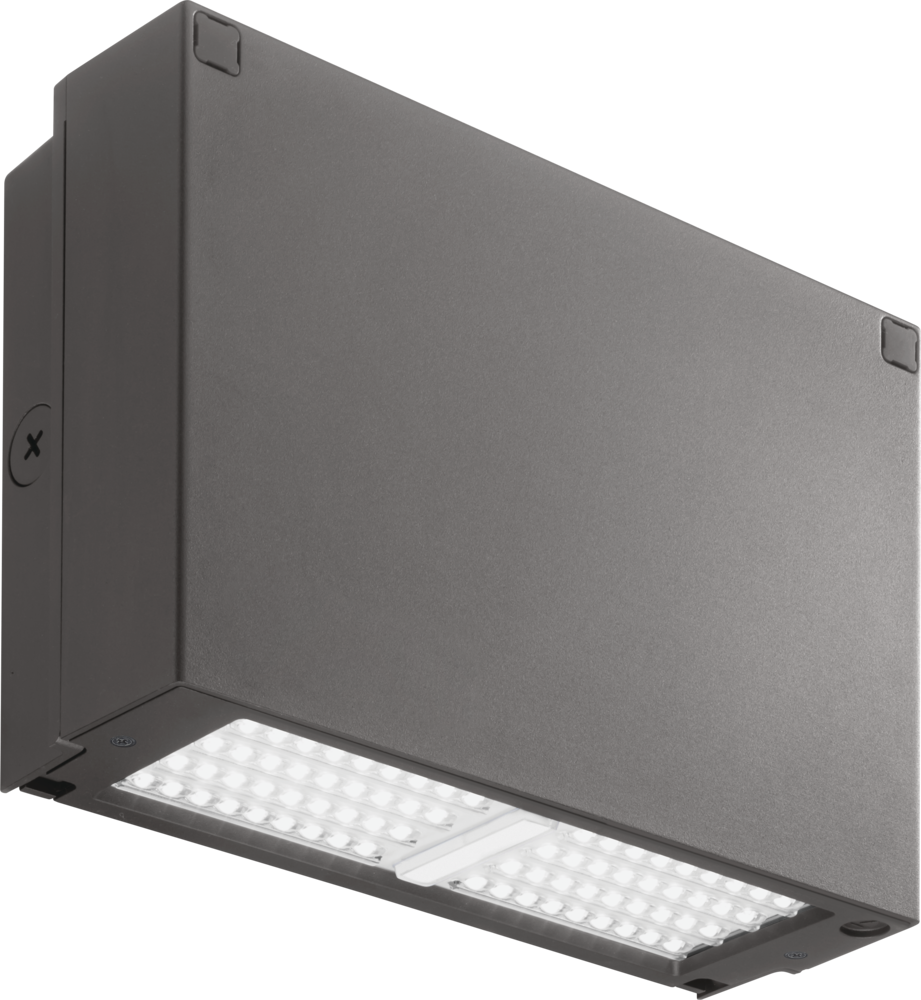

LITH WPX2 LED 40K MVOLT DDBXD M2 LE

WALL PACK 6000 LUMENS *265SX3

LITWPX2LED40KMVOLTDDBXDM2 WPX2 LED 40K MVOLT DDBXD M2 193048870756
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-LITH WPX2 LED 40K MVOLT DDBXD M2 LE-1
  • Finish: Gloss
  • IsSustainable: Yes
  • Length: 9.1 in
  • Material: Aluminum
  • Mounting Type: Surface
  • Style: Traditional
  • Voltage: 120 V, 277 V
  • Wattage: 48 W
  • Width: 12.3 in
QTY
  • Product Description
  • Features
  • Specifications
Design Select
  • Applications
    • Automotive & Parking
    • Education
    • Government
    • House of Worship
    • Manufacturing
    • Offices & Banks
    • Parking Garage
    • Retail
    • Roadways
    • Bridges & Tunnels
    • Sports and Recreation
    • Utility
    • Closet
    • Warehouses
  • Features
    • DESIGN: The WPX LED wall packs are energy-efficient, cost effective, and aesthetically appealing solutions for both HID wall pack replacement and new construction opportunities
    • ENERGY SAVINGS: Delivering 6,000 lumens at 47W make the WPX2 an energy efficient solution.
    • PHOTOCELL: Hardwired on/off capability only
    • RATINGS: CSA certified to meet US and Canadian standards, suitable for wet locations, IP66 Rated and DesignLights Consortium® (DLC) Premium qualified product
    • VOLTAGE: MVOLT for 120-277V (50/60Hz)
    • HOURS OF LIFE: Light engine(s) configurations consist of high-efficacy LEDs and LED lumen maintenance is L90/100,000 hours
    • CONSTRUCTION: Die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life and the luminaires are IP66 rated and sealed against moisture and environmental contaminants
    • DESIGN: Geometric shape covers the footprint of a typical HID wall pack, covering any unsightly stains.
    • WARRANTY: Five-year limited warranty
    • DIMENSIONS: 12.3 in x 9.1 in x 4.1 in
    • The WPX family of LED wall packs are your best choice for your everyday wall mounted lighting needs
    • No longer will your customers have to sacrifice performance and style to get the low initial cost that they demand
    • With three sizes and lumen packages of 1,550 to 9,200 lumens, the WPX family is a site-wide solution, replacing up to 400W metal halide wall packs
    • Since the WPX footprints are larger than that of typical metal halide glass wall packs, they fully cover unsightly stains, resulting in a neat application without the need for additional patch and repair
  • Standards
    • CSADLC Premium
    • DLC Standard
  • Specifications
    • Country of Origin : China
    • Length : 9.1 IN
    • Width : 12.3 IN
    • Height : 4.1
    • Lamp Included : Yes
    • Style : Traditional
    • Voltage Rating : 120-277 V
    • Color : Bronze
    • Lamp Type : LED - Static
    • Mounting : Surface
    • Wattage : 48 W
    • Material : Aluminum
    • Finish : Gloss
    • Socket Type : Integrated LED
    • Type : Wallpack
