LITHONIA

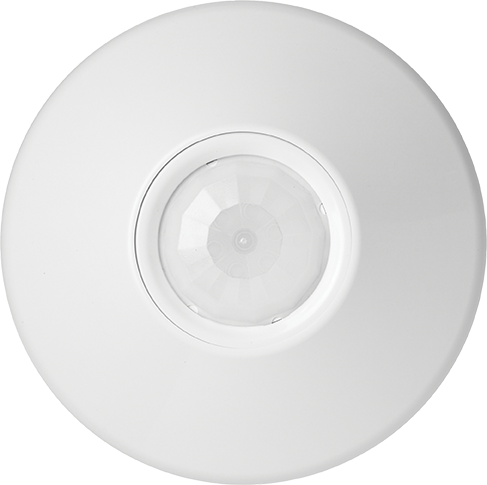

Ceiling Mount Sensor, Small Motion / Standard Range 360° Lens

OCC SENSOR PIR 360DEG SM

LITCMR9 CMR 9 745975808281
114.79 / EA
http://schema.org/OutOfStock
Mayer-DDS-Ceiling Mount Sensor, Small Motion / Standard Range 360° Lens-1
  • Applications: Automotive & Parking, Bridges & Tunnels, Education, Government, Healthcare, Hospitality, House Of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Sports And Recreation, Transportation, Warehouses
  • Country of Origin: Mexico
  • Dimmable (Y/N): Yes
  • Environmental Conditions: Indoor
  • Finish: Matte
  • Height: 4.5 in
  • Length: 4.5 in
  • Lens Material: Plastic
  • Material: Plastic
  • Mounting Type: Flush, Surface
  • Product Type: Sensor
  • Shape: Round
  • Standard: C-UL-US
  • Warranty Length: 5 yr
  • Weight: 0.515 lb
  • Width: 2.5 in
The SensorSwitch CMR 9 small motion, line voltage ceiling mount occupancy sensor offers a low profile design, making it perfect to mount directly to a ceiling tile or metallic grid. With a variety of lens options, CMR sensors utilize 100% passive Infrared detection and is powered directly from line voltage without the need of a power pack. Programming CMR sensor setting can easily be achieved via push button or optional flash programming via the SensorSwitch VLP Mobile App. With either programing method, the user can change time delay.
QTY
  • Product Description
  • Features
  • Specifications
The SensorSwitch CMR 9 small motion, line voltage ceiling mount occupancy sensor offers a low profile design, making it perfect to mount directly to a ceiling tile or metallic grid. With a variety of lens options, CMR sensors utilize 100% passive Infrared detection and is powered directly from line voltage without the need of a power pack. Programming CMR sensor setting can easily be achieved via push button or optional flash programming via the SensorSwitch VLP Mobile App. With either programing method, the user can change time delay.
  • Features
    • The SensorSwitch CMR 9 small motion, line voltage ceiling mount occupancy sensor offers a low profile design, making it perfect to mount directly to a ceiling tile or metallic grid. With a variety of lens options, CMR sensors utilize 100% passive Infrared detection and is powered directly from line voltage without the need of a power pack. Programming CMR sensor setting can easily be achieved via push button or optional flash programming via the SensorSwitch VLP Mobile App. With either programing method, the user can change time delay.
    • DESIGN: Passive Infrared (PIR) occupancy detection
    • ENERGRY SAVINGS: Self-contained relay (no power pack needed)
    • DIMMING: Enjoy the flexibility and convenience of programming sensor settings with your smartphone using the SensorSwitch VLP Mobile App through camera flash programming
    • RATINGS: Energy Management Equipment, UL916 (E167435), RoHS compliant
    • MOUNTING: 12 ft radial coverage when mounted to standard 9 ft ceiling; 8-15 ft mounting heights provide 10-20 ft radial coverage
    • COVERAGE: 360 degree coverage
    • FEATURE: Best choice for small motion detection
    • BATTERY: 100-hour lamp burn-in timer mode
    • WARRANTY: 5-Year Limited Warranty
  • Specifications
    • Product Type : Sensor
    • Application : Automotive & Parking,Education,Government,Healthcare,Hospitality,House of Worship,Manufacturing,Offices & Banks,Power & Gas,Residential,Retail,Roadways, Bridges & Tunnels,Sports and Recreation,Transportation,Warehouses
    • Standard : C-UL-US
    • Voltage Rating : 120,230,277
    • Color : White
    • Shape : Round
    • Mounting : Flush,Surface
    • Environmental Conditions : Indoor
    • Material : Plastic
    • Dimmable : Yes
    • Finish : Matte
    • Average Life : Not Applicable
    • Maximum Operating Temperature : 60
    • Lamp Included : Not Applicable
    • Lens Material : Plastic
    • Warranty : 5 Year Limited
    • Height : 4.5 in
    • Length : 4.5 in
    • Weight : 0.515 lbs
    • Width : 2.5 in
    • Country of Origin : Mexico
