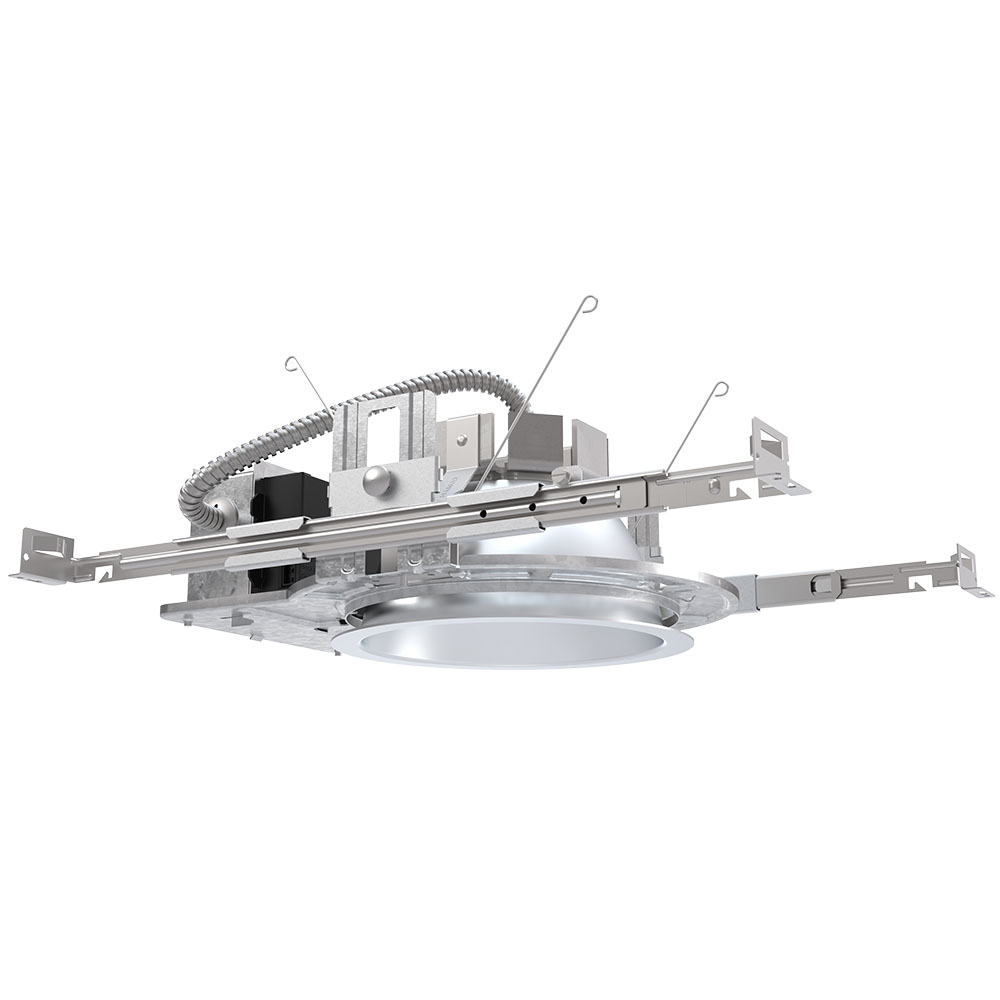

Lithonia Lighting LDN 6 in. trims, used with LDN6 housings, provide general illumination solutions for commercial-grade downlight applications. These downlight trim options add a detailed touch for applications including corridors, lobbies, conference rooms, private offices, and any new construction.
- Features
- Combined with LDN6 housing, trim options are available with 1.0 spacing criteria for downlights
- With over 85 lumens per watts, more than 60 percent less energy consumed with this dimmable LED downlight
- Available with nLight AIR capability for wireless control and connectivity
- Wet location, Title 20, Energy Star
- Available in MVOLT (120-277V), 0-10V 10 percent dimming available, and includes vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4 in. total adjustment
- Long life with sustained performance with 70 percent lumen maintenance at 60,000 hours
- LDN 6 in. clear trim enables uniformity from floor to ceiling
- Consult factory for available options
- Buy with confidence: Your satisfaction is our top priority, this product is backed by our limited 5-year warranty policy
- Two combination 1/2 - 3/4 in. and four 1/2 in. knockouts for straight-through conduit runs. Capacity is 8 or 4 in, 4 out. Accommodates 12-24 in. joist spacing with max ceiling thickness 1-1/2 in.
- Certified to US and Canadian safety standards. Wet location standard (covered ceiling)
- IP55 rated. ENERGY STAR certified product
- 80 CRI minimum
- Applications
- Education
- Government
- Healthcare
- Hospitality
- Offices & Banks
- Retail
- Roadways
- Bridges & Tunnels
- Specifications
- Environment : Indoor
- Listings : CSA,cUL
- Is CSA Certified : Yes
- Is Energy Star : No
- Airtight Rating : No
- Country Of Origin : US
- Hardware Included : Yes
- Contains Mercury : No
- Contains Lithium Battery : No
- Primary Material : Aluminum
- Shape : Round
- Color : Clear
- Finish : Semi-Specular
- Daylight Sensing : No
- Aperture Size : 6 IN
- Aperture Inside Diameter : 6.25
- Trim Style : Cone,Open
- Fixture Length : 8
- Fixture Width : 8
- Fixture Height : 7
- Fixture Weight : 1
