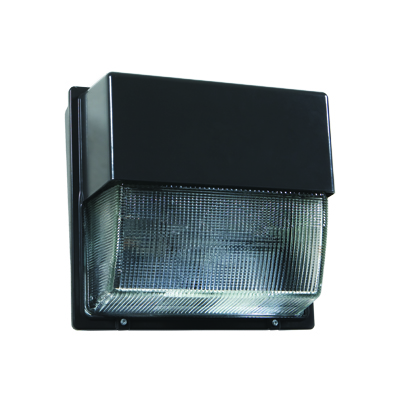

The Lithonia Lighting Wall-Mount Light Fixture is made from durable die-cast aluminum with a corrosion-resistant bronze powder coating. Intended uses are outdoor applications such as loading docks, outdoor storage areas, and warehouse and factory perimeters. The fully sealed lens keeps contaminants from getting inside.

• Features
• Replaces up to 400W MH, saves 80% energy
• Wall pack; contractor select; adjustable light output; ALO; glass refractor; footprint; building-mounted; doorway; pathway
• Contractors can easily adjust to customers’ lighting needs and customers can save up to 83% in energy compared to traditional light sources
• Available with glass or polycarbonate lens
• 16-1/4" x 15-3/4" x 8"
• The LED driver is mounted to the front casting to thermally isolate it from the light engine for low operating temperature and long life
• The electronic driver has a power factor of 90%, THD
• 4000 K
• Cast in a traditional dayform, the TWH LED wall pack luminaires come standard with adjustable light output allowing the distributors to reduce inventory, adjust to customers’ needs and save energy compared to traditional light sources
• UL listed for use in the US and Canada; suitable for use in wet locations; rated for -40°C minimum operating temperature; DLC qualified
• Traditional form factor, and payback within two years
• Die-cast aluminum housing has an impact-resistant, tempered glass lens that is fully gasketed with a modular design that allows for ease of maintenance; housing is completely sealed against moisture and environmental contaminants
• Five-year limited warranty
• Contractors can easily adjust to customers’ lighting needs and customers can save up to 83% in energy compared to traditional light sources

• Specifications
• PDM Package Quantity : 1
• Color : Bronze
• Mounting Location : Wall
• Lens Cover Style : Prismatic
• Maximum Operating Temperature : 25
• Maximum Lamp Wattage : 78
• Contains Lithium Battery : No
• Is CSA Certified : No
• Hardware Included : Yes
• Length of Warranty : 5 Year Limited
• Environment : Outdoor
• Light Source : LED - Static
• Pallet Quantity : 60
• Is Product Dimmable : Yes
• Dimmable Range : 100% to 10%
• Country Of Origin : MX
• Mounting : Surface
• Lens Material : Glass
• Fixture Weight : 30
• Harmonization USA : 9405106020
• Correlated Color Temperature (Non-LED) : 4000 K
• Harmonization Mexico : 94051099
• Harmonization Canada : 9405100099
• Lamp Base : Mogul: E39
• Fixture Package Height : 11
• Listings : UL
• Application Type : Education,Hospitality,Offices & Banks
• Application : Outdoor
• Number of Cartons on the Pallet : 30
• Color Rendering Index : 70
• Architectural Style : Traditional
• Fixture Package Width : 17.5
• Limited Warranty Length : Limited 5 Year Limited
• Shape : Rectangular
• Fixture Package Length : 17.5
• Contains Mercury : No
• Lamp Type : LED
• Lamp Included : Yes
• Fixture Package Weight : 30
• Airtight Rating : No
• Color Rendering Index Output : 70
• Daylight Sensing : No
• Primary Material : Aluminum
• Lumen Output : 2000 LM,3000 LM,4000 LM,5000 LM,6000 LM,7000 LM,8000 LM,9000 LM
• Battery Recharge Time : 24 hours
• Voltage Rating : 120,208,240,277,347,480,MVOLT
• Finish : Gloss
• Lens Included : Yes
• Is Energy Star : No
• Number of Units in Packaging Indicator : 1
• Weather Resistant : Yes
• Fixture Height : 11
• Light Color : Cool White
• Warranty Statement : 5 Year Limited. Warranty varies by product.
• Power Connection : Hardwired
• Outdoor Lighting Features : Weather Resistant
• Battery Run Time : 90 min
• Fixture Width : 17.5
• Fixture Length : 17.5
• Correlated Color Temperature (LED) : 4000 K
