LITH ESXF3 ALO SWW2 YS DDB M2 ESXF3

ESXF3, ALO, SWITCHABLE CCT, DB

LITESXF3ALOSWW2YSDDBM2 ESXF3ALOSWW2YSDDBM2 LITESXF3ALOSWW2YSDDBM2
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-LITH ESXF3 ALO SWW2 YS DDB M2 ESXF3-1
  • Average Rated Life: 50,000 hr
  • Color Rendering Index: 80 CRI
  • Environmental Conditions: Outdoor
  • IsSustainable: Yes
  • Lumens: 10, 000 lm, 10, 500 lm, 13, 600 lm, 14, 000 lm, 14, 500 lm, 8000 lm, 8500 lm
  • Mounting Type: Tenon Slipfitter, Yoke
  • Number of Lamps: 1
  • Shape: Rectangular
  • Voltage: 120 V, 277 V
  • Wattage: 100 W
QTY
  • Product Description
  • Features
  • Specifications
Design Select
  • Applications
    • Automotive & Parking
    • Decorative
    • Education
    • Entertainment
    • Food Service
    • Government
    • Hospitality
    • House of Worship
    • Manufacturing
    • Offices & Banks
    • Parking Garage
    • Residential
    • Retail
    • Sports and Recreation
  • Features

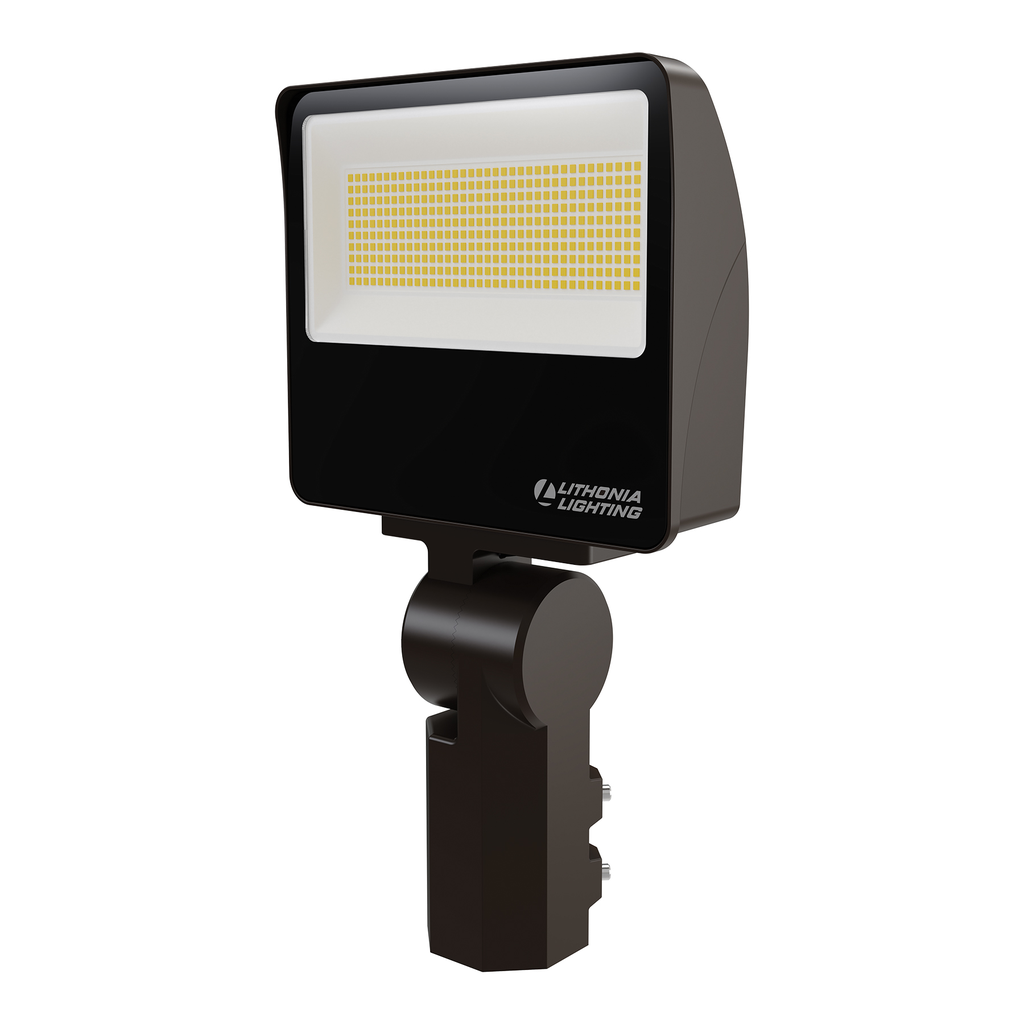

    • DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell
    • ENERGY SAVINGS: Energy-efficient LEDs with lumen output of 8500, 10500, and 14000 lumens
    • SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell
    • RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
    • VOLTAGE: MVOLT (120-277V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%
    • INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources
    • INSTALLATION: Include a yoke mount for solid surface mounting and an integral slipfitter that mates with standard 2 3/8" tenons for pole-top mounting, models ship standard with 18” SO cord
    • CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
    • WARRANTY: Five-year limited warranty
    • DIMENSIONS: 7.97 in. x 8.95 in. x 3.04 in.
    • Ideal for parking areas, street lighting, walkways and car lots
  • Standards
    • C-UL-USDLC Premium
  • Specifications
    • Country of Origin : China
    • Voltage Rating : 120-277 V
    • Color : Bronze
    • Lamp Type : LED - Static
    • Shape : Rectangular
    • Mounting : Tenon Slipfitter, Yoke
    • Environmental Conditions : Outdoor
    • Wattage : 100 W
    • Color Rendering Index (CRI) : 80
    • Average Life : 50, 000 Hours
    • Color Temperature : Variable K
    • Fixture Type : FloodLight
    • Lumens : 10, 000 LM, 10, 500 LM, 13, 600 LM, 14, 000 LM, 14, 500 LM, 8000 LM, 8500 LM LM
    • Number Of Lamps : 1
    • Power Rating : 100
    • Size : 16.07 x 8.95 x 2.84 IN
    • Type : Floodlight
