2 ft. x 2 ft. CPX LED Panel 2400-4200 lumens Adjustable Light Output 35/40/50K Switchable White

2 ft. x 2 ft. CPX LED Panel 2400-4200 lumens Adjustable Light Output 35/40/50K Switchable White

LITCPX2X2ALO7SWW7M4 193048542806
0.00 / EA
  • Color Temperature: 3500 K, 4000 K, 5000 K
  • Country of Origin: China
  • Environment: Indoor
  • Finish: Semi-Gloss
  • Lamp Life: 50,000 hr
  • Lumens: 2,500 lm, 3,200 lm, 4,000 lm
  • Material: Steel
  • Mounting Type: Recessed, Surface, Suspended
  • Shape: Square

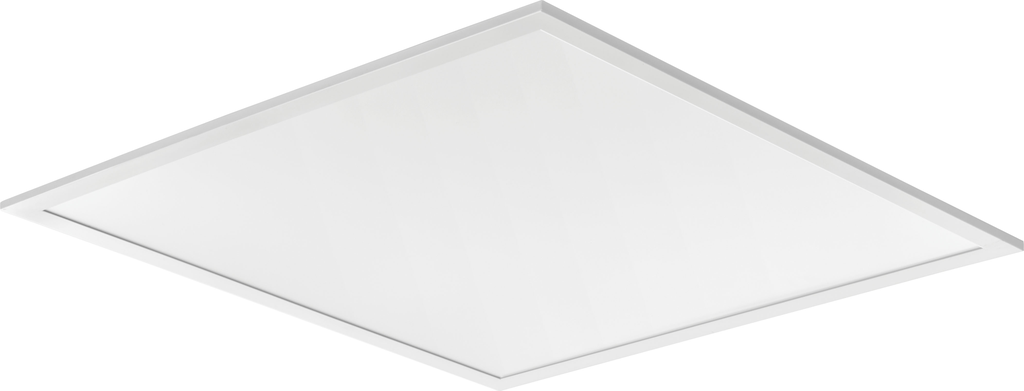

The 2 ft. x 2 ft. CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price. The smooth, even lens projects a crisp and clean aesthetic. This CPX configuration offers Adjustable Light Output (ALO) for the option of 2400-4200 lumens and Switchable White (SWW) for three color temperature in one - 35/40/50K CCT. CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects.
  • Features
  • Product Description
  • Specifications
  • Applications
    • Education
    • House of Worship
    • Offices & Banks
    • Retail
    • Hospitality
    • Residential
    • Government
  • Standard MVOLT for 120-277 volts and can be recessed, suspended or surface box mounted with additional kit
  • Field-installable LED emergency driver (PS1055CP) sold separately
  • Switchable White feature allows this panel to change between 3 different color temperatures with the toggle of a switch at the point of installation for job site flexibility
  • Adjustable Lumen Output (ALO) and Switchable White (SWW) features allow for this panel to offer 9 potential configurations within one fixture, using two switches
  • 0-10 volts driver for dimming down to 10 percent and contains non-isolated dimming leads
  • Aluminum frame with satin white lens provides smooth illumination
  • Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • Greater than 70 percent LED lumen maintenance at 50,000 hours (L7050,000)
  • 5-year limited warranty
  • CSA certified, damp location listed, IC rated
  • Driver box sits flush on backplate and includes 4 driver board push-pin holes holes for easier installation
  • 23-4/5 in. x 23-4/5 in. x 1-7/10 in.
  • Adjustable Light Output (ALO) allows for lumen levels to be changed on the job site to support the occupant's needs
The 2 ft. x 2 ft. CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price. The smooth, even lens projects a crisp and clean aesthetic. This CPX configuration offers Adjustable Light Output (ALO) for the option of 2400-4200 lumens and Switchable White (SWW) for three color temperature in one - 35/40/50K CCT. CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects.
  • Contains Mercury : No
  • Voltage Rating : 120-277
  • Environment : Indoor
  • Expected Life : 50,000 hours
  • Mounting Location : Ceiling
  • Fixture Weight : 6.39
  • Hardware Included : Yes
  • Daylight Sensing : No
  • Color Rendering Index : 80
  • Luminaire Attachment Method : Aircraft Cable
  • Dimmable Range : 100% to 10%
  • Primary Material : Steel
  • Airtight Rating : No
  • Nominal Wattage : 37.5
  • Color Rendering Index Output : 80
  • Lumen Output : 2500 LM,3200 LM,4000 LM,Switchable
  • Fixture Height : 1.68
  • LED Fixture Wattage : 37.5
  • Mounting : Recessed,Surface,Suspended
  • Is Energy Star : No
  • Power Connection : Hardwired
  • Contains Lithium Battery : No
  • Lens Color Family : White
  • Lens Included : Yes
  • Light Source : LED - Static
  • Architectural Style : Traditional
  • Fixture Width : 23.82
  • Correlated Color Temperature (LED) : 3500 K,4000 K,5000 K,Variable
  • Country Of Origin : CN
  • Maximum Operating Temperature : 25
  • Lamp Included : Yes
  • Correlated Color Temperature (Non-LED) : 3500 K,4000 K,5000 K,Variable
  • Listings : CSA
  • New Construction or Remodel (Attribute) : New Construction,Remodel
  • Shape : Square
  • Fixture Length : 23.82
  • Color : White
  • Is Product Dimmable : Yes
  • Effifciency Statement : 9
  • Aperture Size : 2x2
  • Finish : Semi-Gloss
  • Is CSA Certified : Yes
  • Total Fixture Wattage : 37.5
