Dual Range Non-Contact Voltage Tester with Flashlight, 12 to 1000V AC

DUAL RANGE NCVT+LIGHT 12-1000V

KLNNCVT3P NCVT3P 092644693236
35.22 / EA
http://schema.org/OutOfStock
Mayer-DDS-Dual Range Non-Contact Voltage Tester with Flashlight, 12 to 1000V AC-2
  • Applications: Non-Contact Detection And Testing Of AC Voltage
  • Depth: 5.700 in
  • Frequency: 50 Hz, 500 Hz
  • Height: 0.93 in, 0.930 in, 2.4 cm
  • Material: Polycarbonate
  • Overall Length: 14.5 cm, 5.70 in
  • Type: Dual Range With Flashlight
  • Voltage: 1000 V
  • Weight: 0.104 lb
  • Width: 1.09 in, 1.140 in, 2.8 cm

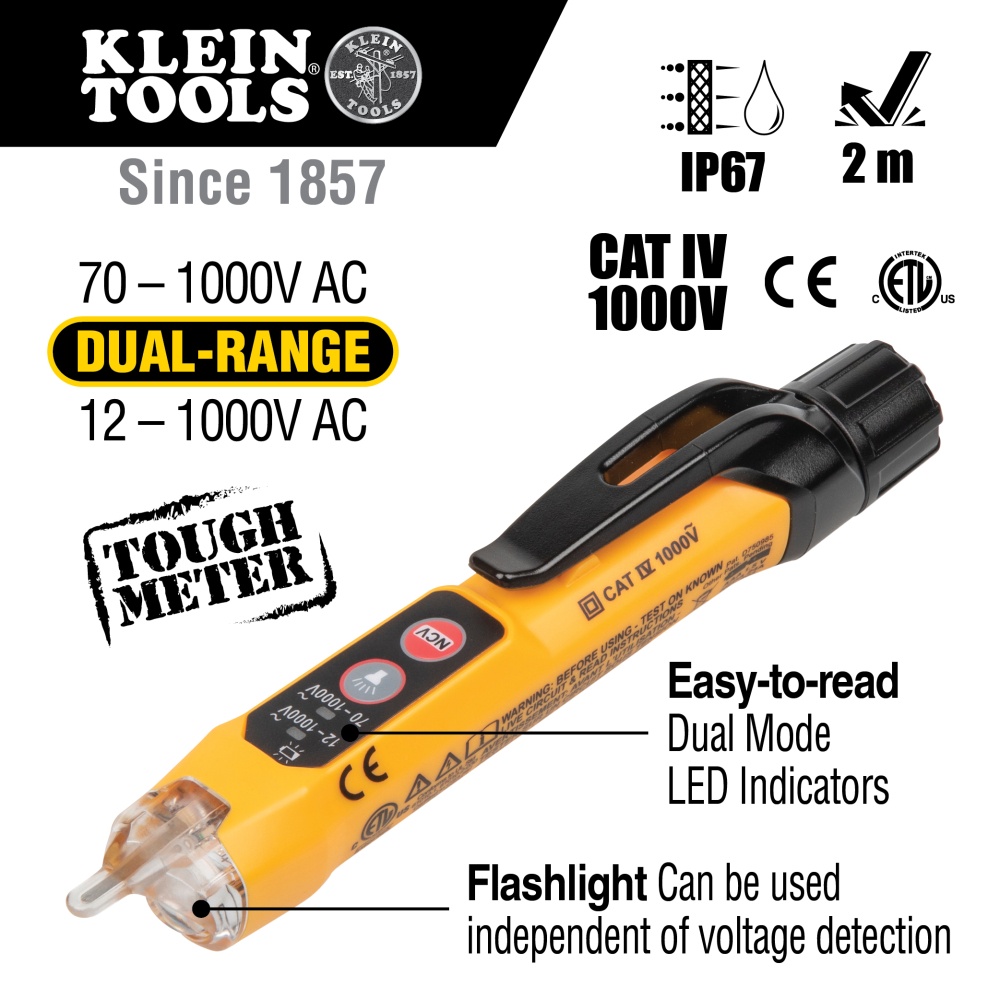

The NCVT-3P is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-3P is rugged enough for any job site.
QTY
  • Product Description
  • Features
  • Specifications
The NCVT-3P is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-3P is rugged enough for any job site.
  • Features
    • Dual modes indicates low voltage (12 to 70V AC) and standard voltage (70 to 1000V AC) allowing broad application
    • Detects voltage with simultaneous visual and audible voltage indicators
    • Bright flashlight illuminates work area and may be used independent of voltage detection function
    • Green light indicates no voltage
    • Lightweight, compact tool with pocket clip provides convenient storage and quick access
    • Auto power-off feature conserves and extends battery life
    • CAT IV 1000V rating provides expanded operation and protection
    • Screw-thread battery cap with O-ring ensures protection against dust and water ingress
    • 6.6-Foot (2 m) drop protection
    • IP67: Dustproof and waterproof
    • Conforms to CE requirements
    • US Patent 10,073,142, D750,985 and other patents pending
    • Flashlight, LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
  • Warnings
    • Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
    • Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
  • Specifications
    • Overall Height : 0.93" (2.4 cm)
    • Pollution Degree : 2
    • Overall Length : 5.70" (14.5 cm)
    • Included : NCVT; Batteries
    • Type : Dual Range with Flashlight
    • Material : Polycarbonate
    • Voltage : 12 – 1000V AC; 70 – 1000V AC
    • Batteries : 2 x AAA
    • Ingress Protection : IP67 - Dustproof and Waterproof
    • Drop Protection : 6.6' (2 m)
    • Battery Life : 125 hr
    • Standard : CAT IV 1000V
    • Frequency : 50 - 500 Hz
    • Overall Width : 1.09" (2.8 cm)
    • Application : Non-Contact Detection and Testing of AC Voltage
    • Height : 0.9300 in
    • Width : 1.1400 in
    • Depth : 5.7000 in
    • Weight : 0.1040 lbs
