3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1500, 3/0 AWG-400 kcmil, Expanded/Recovered I.D. 1.50/0.50 in, 9 in Length, 10/Case

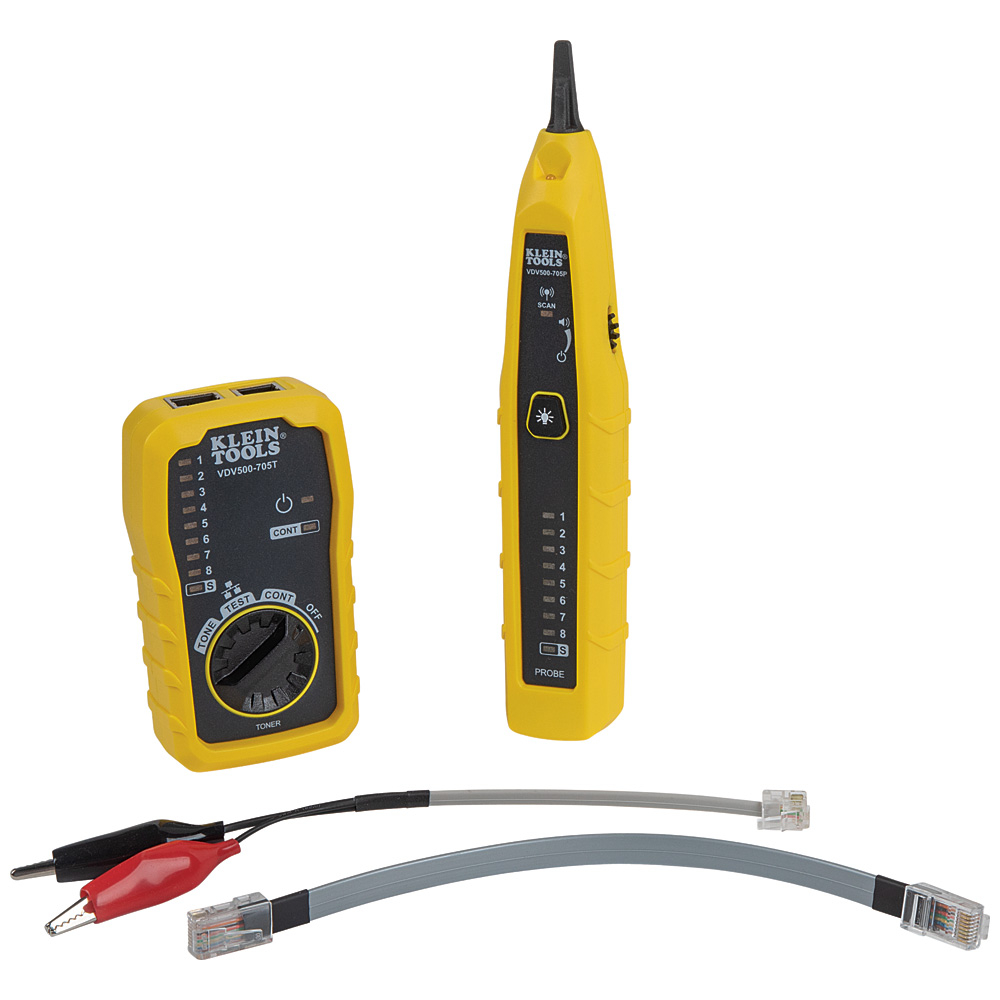

TONE & PROBE TESTER AND TRACER

KLNVDV500705 VDV500-705 92644582943
54.05 / EA
http://schema.org/OutOfStock
Mayer-DDS-3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1500, 3/0 AWG-400 kcmil, Expanded/Recovered I.D. 1.50/0.50 in, 9 in Length, 10/Case-1
  • Country of Origin: USA
  • Max. Operating Temperature: 100.0 °C, 230.0 °F
  • Operating Temperature: 100 °C, -55 °C
  • Overall Length: 228.6 mm, 9.0 in
  • Product Type: Splice
  • Splice Type: Heat Shrink
  • Tensile Strength: 2400 lb/in
  • Voltage: 1 kV
3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.
QTY
  • Product Description
  • Features
  • Specifications
3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.
  • Features
    • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
    • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
    • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
    • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
    • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
    • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • Specifications
    • Country of Origin : United States
    • ETIM Class 8.0 : EC000217
    • Inner Diameter After Shrink (Metric) : 1.27 cm²
    • Maximum Operating Temperature (Celsius) : 100.0
    • Maximum Operating Temperature (Celsius) Uom : Degree
    • Maximum Operating Temperature (Fahrenheit) : 230.0 Degree
    • Inner Diameter After Shrink (Imperial) : 0.5 in
    • Inner Diameter Before Shrink (Imperial) : 1.5 in
    • Inner Diameter Before Shrink (Metric) : 3.81 cm²
    • Adhesive Lined : Yes
    • Agency Approvals : CSA, UL 486D
    • Cable Size Range : 3/0 AWG-450 kcmil
    • Chemical Resistant : Yes
    • Dielectric Strength (V/mil) : 500 V/mil
    • Direct Bury : Yes
    • Elongation UOM : %
    • Expanded Inner Diameter : 1.5 in
    • Expanded Inner Diameter (Metric) : 38.1 mm
    • Flame Retardant : No
    • Flammability Rating : Non-Flame Retardant
    • Heat Shrink Type : Adhesive-Lined Polyolefin Heat Shrink Tubing
    • Manufacturing Origin : USA
    • Material : Adhesive-lined Polyolefin
    • Maximum Voltage Rating : 1 kV
    • Minimum Expanded Tubing I. D. : 1.5 in
    • Minimum Shrink Temperature (Celsius) : 121.0
    • Minimum Shrink Temperature (Fahrenheit) : 250 °F
    • Non-Corrosive : Yes
    • Operating Temperature (Celsius) : -55 to 100 Degrees Celsius
    • Operating Temperature (Fahrenheit) : -67 °F to 230 °F
    • Operating Temperature Range (Fahrenheit) : -67 °F to 230 °F
    • Overall Length (Imperial) : 9.0 in
    • Overall Length (Metric) : 228.6 mm
    • Product Color : Black
    • Product Type : Splice
    • Recovered Inner Diameter : 0.5 in
    • Recovered Inner Diameter (Metric) : 12.7 mm
    • RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
    • Shelf Life : 3600
    • Shrink Ratio : 3:1
    • Solution for : Access Network: FTTH/FTTB/CATV
    • Specifications Met : UL 486D*
    • Splice Type : Heat Shrink
    • Tensile Strength (Imperial) : 2400 Pound-Force Per Square Inch
    • Tubing Type : Heavy Wall
    • Units per Case : 10.0
    • Voltage : 1 kV
