HUBBELL WIRING DEVICES

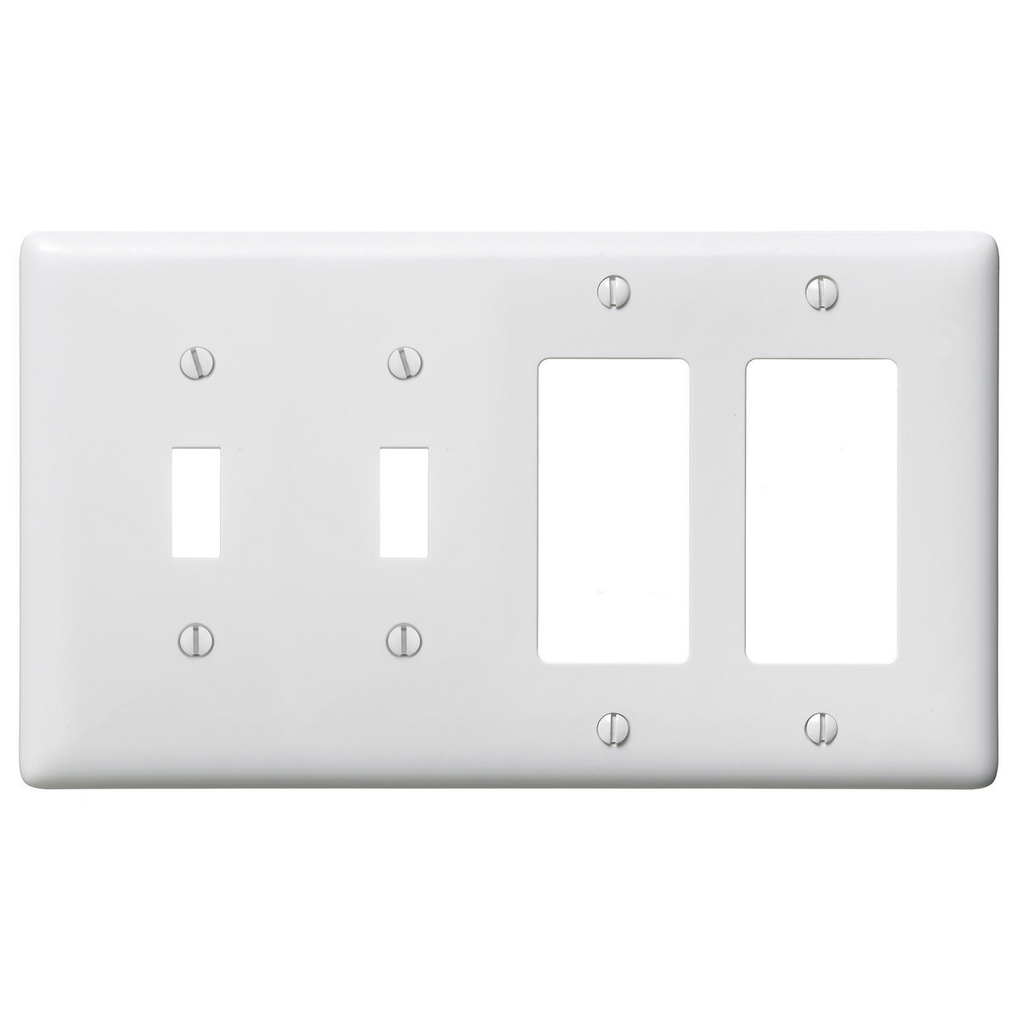

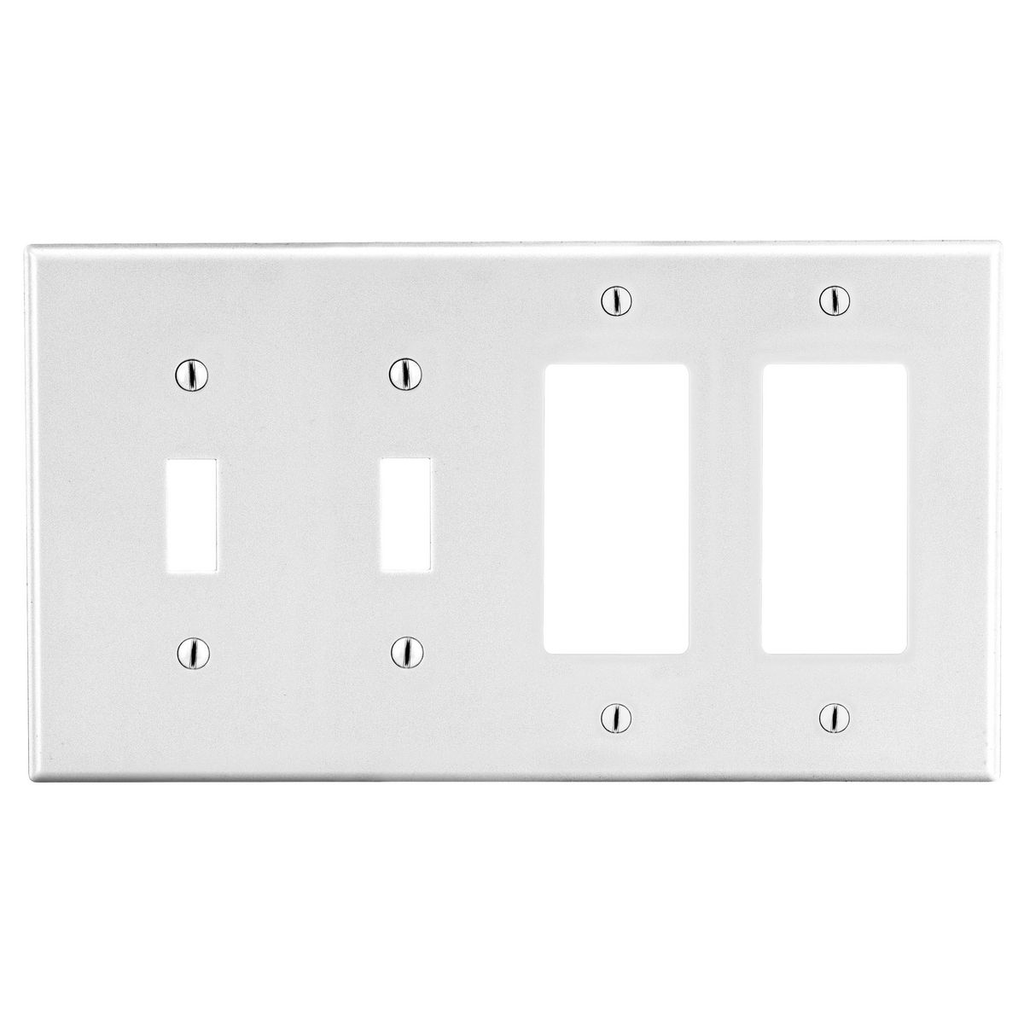

4-Gang Wallplate Two Toggle Two Decorator

4G WALLPLATE

HUBP2262W NP2262W 883778105678
23.86 / EACH
http://schema.org/OutOfStock
Mayer-DDS-4-Gang Wallplate Two Toggle Two Decorator-1
  • Construction: Molded
  • Country of Origin: USA
  • Material: Nylon
  • Number of Gangs: 4
  • Width: 4.6 in, 4.600 in
4-Gang Wallplate Two Toggle Two Decorator
QTY
  • Product Description
  • Features
  • Specifications
4-Gang Wallplate Two Toggle Two Decorator
  • Features
    • Reinforcement ribs for extra strength
    • High-impact, self-extinguishing nylon material
    • Captive screw feature holds mounting screw in place
    • Standard Size is 1/8" larger to give you extra coverage to hide rough box openingsCurved corners for improved aesthetics, for use in any applicationAlso available in mid-sized and pre-markedReinforcement ribs for extra strengthCapt
  • Specifications
    • Country of Origin : US
    • Width : 4.600 in
    • Each - Width : 4.600 in
    • Industry Standard(s) : UL Listed
    • Size : Standard
    • Application : Protection against contact of live terminals and wiring. Provides finished look to installation.
    • Color : White
    • Cutout : 2) Toggle, 2) Decorator
    • Orientation : Vertical Mount
    • Special Features : Standard Size is 1/8" larger to give you extra coverage to hide rough box openingsCurved corners for improved aesthetics, for use in any applicationAlso available in mid-sized and pre-markedReinforcement ribs for extra strengthCapt
    • Standard : UL Listed
    • Thickness : 0.06
    • Type : Combination
    • Display Size : Standard Sized
    • Style : 2-Toggle, 2-Decorator
    • Description - Invoice : WALLPLATE, 4-G, 2) TOG 2) DEC, WH
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Replaced Catalog Number : P2262W
    • Replacement Catalog Number : P2262W
    • Material - Mounting Hardware : Screw Mounting
    • Construction : Molded
    • Material : Nylon
    • Number of Gang(s) : 4-Gang
    • Base Unit of Measure : EA
    • BOX SIZE : 2.200x8.800x5.100 (in)
    • Carton - Gross Weight per Pack : 1.25 lb.
    • Carton - Number of Sub Packs : 10
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 883778105678
    • Carton - Total Units : 10 EA
    • Case - Total Units : 100 EA
    • Case Weight : 15.000 lb.
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
  • Certifications
    • EU RoHS Indicator : Yes
