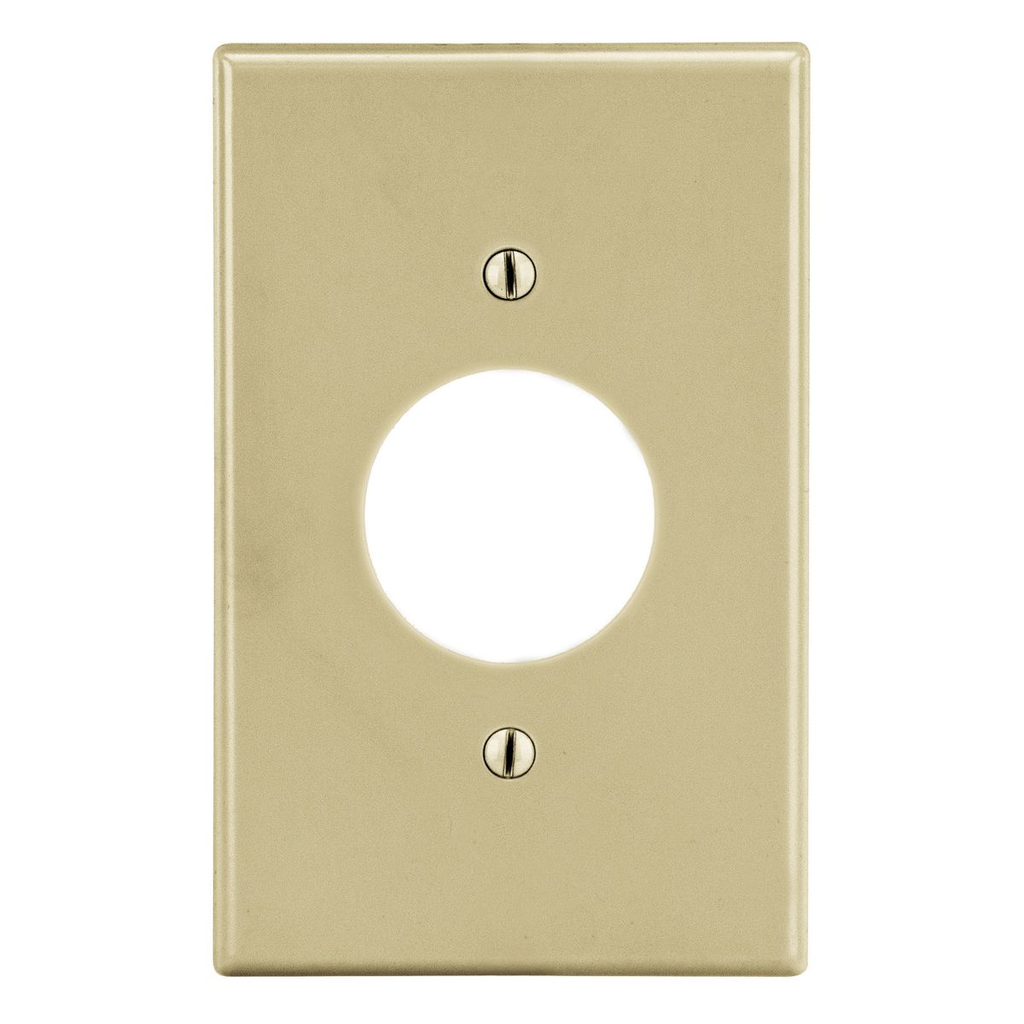

1-Gang Wallplate, One 1.40" Opening

WALLPLATE 1G 1 RECPT 1.4 IVORY

HUBP7I NP7I 883778103520
0.77 / EACH
http://schema.org/OutOfStock
Mayer-DDS-1-Gang Wallplate, One 1.40" Opening-1
  • Construction: Molded
  • Country of Origin: China
  • Height: 0.25 in
  • Length: 4.62 in
  • Material: Nylon
  • Number of Gangs: 1
  • Weight: 0.05 lb
  • Width: 2.900 in
Twist-Lock® Devices, Wallplates, 1-Gang, Accessories for 15A2 and 3 Wire Devices, smooth
QTY
  • Product Description
  • Features
  • Specifications
Twist-Lock® Devices, Wallplates, 1-Gang, Accessories for 15A2 and 3 Wire Devices, smooth
  • Features
    • Used with Single Receptacles with Face Dia. 1.40" (35.6 mm)
    • Standard Size is 1/8" larger to give you extra coverage to hide rough box openingsCurved corners for improved aesthetics, for use in any applicationAlso available in mid-sized and pre-markedReinforcement ribs for extra strengthCapt
  • Specifications
    • Country of Origin : CN
    • Dimensions : 4.62 in x 2.87 in x 0.25 in
    • Width : 2.900 in
    • Each - Width : 2.900 in
    • Height : 0.25 in
    • Industry Standard(s) : UL Listed
    • Length : 4.62 in
    • Standards - RoHS Compliance Status : CM
    • Application : Protection against contact of live terminals and wiring. Provides finished look to installation.
    • Color : Ivory
    • Cutout : 1) 1.40" Opening
    • Orientation : Vertical Mount
    • Size : 4.62 in x 2.87 in x 0.25 in
    • Special Features : Standard Size is 1/8" larger to give you extra coverage to hide rough box openingsCurved corners for improved aesthetics, for use in any applicationAlso available in mid-sized and pre-markedReinforcement ribs for extra strengthCapt
    • Standard : UL Listed
    • Thickness : 0.06
    • Type : Single
    • Display Size : Standard Sized
    • Operating Temperature : -40°C to 85 °C
    • Style : 1-Single - 1.40 in. Hole
    • Weight : 0.05 lb.
    • Description - Invoice : WALLPLATE, 1-G, 1.40" OPNG, IV
    • Freight Class Code : 06168002
    • Harmonization Code : 3925900000
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Replaced Catalog Number : P7I
    • Replacement Catalog Number : P7I
    • Material - Mounting Hardware : Screw Mounting
    • Construction : Molded
    • Material : Nylon
    • Number of Gang(s) : 1-Gang
    • Base Unit of Measure : EA
    • BOX SIZE : 2.600x6.100x4.900 (in)
    • Carton - Gross Weight per Pack : 0.85 lb.
    • Carton - Number of Sub Packs : 25
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 883778103520
    • Carton - Total Units : 25 EA
    • Case - Total Units : 200 EA
    • Case Weight : 10.000 lb.
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
  • Certifications
    • EU RoHS Indicator : Yes
