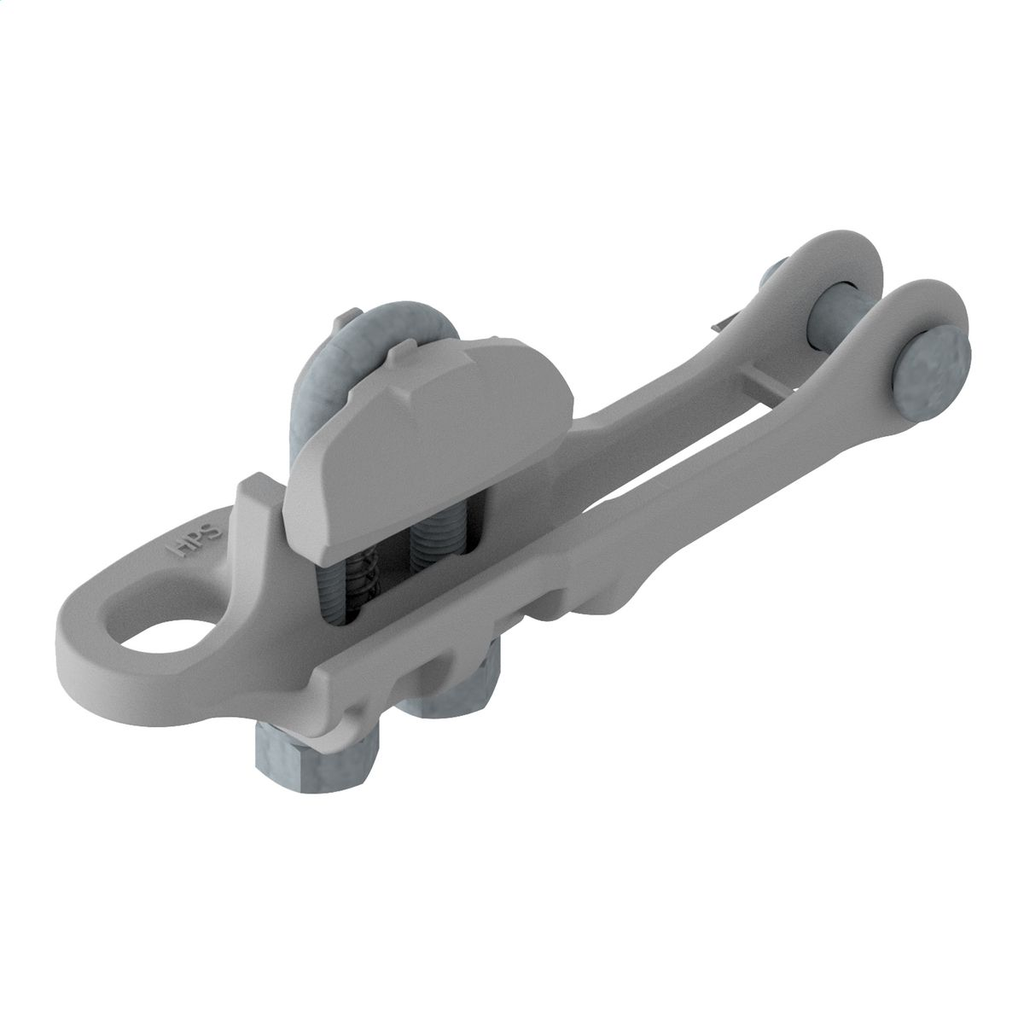

Deadend, Straight line, Spring Loaded, Side opening, #4 (7 STR) - 4/0 (19 STR) AL, #6 (6/1) - 4/0 (6/1) ACSR

DEADEND AL SIDE OPENING

ABCASOD5701N ASOD5701N 096359363347
23.93 / EA
http://schema.org/OutOfStock
Mayer-DDS-Deadend, Straight line, Spring Loaded, Side opening, #4 (7 STR) - 4/0 (19 STR) AL, #6 (6/1) - 4/0 (6/1) ACSR-1
  • Country of Origin: Mexico
  • Length: 8.620 in
  • Material: Aluminum Alloy, Steel
  • Weight: 1.950 lb
  • Width: 0.700 in, 2.820 in
Deadend, Straight line, Spring Loaded, Side opening, #4 (7 STR) - 4/0 (19 STR) AL, #6 (6/1) - 4/0 (6/1) ACSR, Conductor Range 0.19 - 0.57 in, Fitting: None.
QTY
  • Product Description
  • Features
  • Specifications
Deadend, Straight line, Spring Loaded, Side opening, #4 (7 STR) - 4/0 (19 STR) AL, #6 (6/1) - 4/0 (6/1) ACSR, Conductor Range 0.19 - 0.57 in, Fitting: None.
  • Features
    • Spring Loaded Vertical Keeper for Easy Installation, Add "S" for socket or "C" for clevis fitting options
  • Specifications
    • Country of Origin : MX
    • Description - Slang : Deadend shoe
    • Each - Width : 2.820 in
    • Length : 8.620 in
    • Product Category : Straight Line
    • Product Type : Side Opening Deadend
    • Type : Bolted
    • Width : 0.700 in
    • Style : ASOD
    • Weight : 1.950 lb.
    • Class Code : L205
    • Description - Invoice : DEADEND, AL SIDE OPENING
    • Freight Class Code : 06120000
    • Harmonization Code : 7616995190
    • Image Actual Or Representative : A
    • Lead Time : 44 wk
    • Sub Class Code : L2010
    • Fitting Type : None
    • Material - Bolt : Galvanized Steel
    • Material - Keeper : 356 T6 Aluminum Alloy
    • Strength Rating - Ultimate Body : 8000 lb.
    • U-Bolts : 1
    • Diameter - Pin : 0.625 in
    • Material : Aluminum Alloy; Steel
    • Material - Hardware : Galvanized Steel
    • Base Unit of Measure : EA
    • Carton - SCC-14 Next Lower Level Sub Pack : 00096359363347
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
    • Package - Total Units : 25 EA
    • Package Quantity : 20 EA
    • Pallet - GTIN - Package : 70096359363346
    • Pallet - Number of Sub Packs : 750
    • Pallet - Pack Description : Pallet
    • Pallet - SCC-14 Next Lower Level Sub Pack : 96359363347
    • Pallet - Total Units : 750 EA
    • Pallet Height : 38.000 in
    • Pallet Length : 42.000 in
    • Pallet Weight : 1140.000 lb.
    • Pallet Width : 42.000 in
    • Standard Package Quantity : 25
