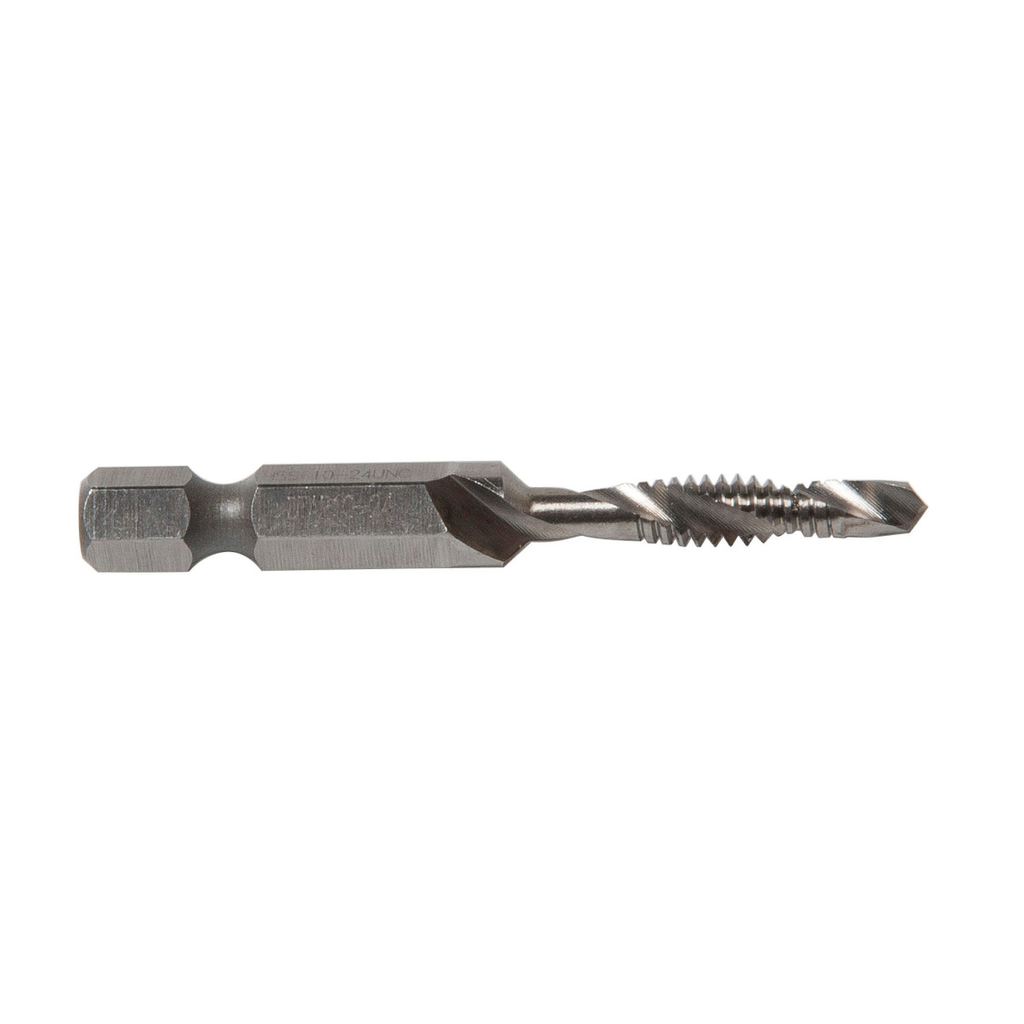

10-24NC Drill/Tap Bit

DRILL/TAP 10-24

GREDTAP1024 DTAP10-24 783310176138
12.13 / EA
http://schema.org/OutOfStock
Mayer-DDS-10-24NC Drill/Tap Bit-1
  • Material: Steel
QTY
  • Features
  • Specifications
  • Features
    • Complete hole drilling, tapping and deburring/countersinking in one operation with power drill saves labor and time
    • Back tapered beyond tap toprevent thread damage from over-drilling
    • Deburr/countersink also provided on bit beyond back taper
    • Made from hardened high-speed steel vs. carbon steel forlonger life
    • High quality hex shank to ensure strong connection to drill chuck
    • Designed to tap up to 10-gauge metal
    • Quick change adaptor included in both metric and standard kits
  • Specifications
    • Material : High Speed Steel
    • Material thickness : Up to 10 GA
    • Material type : Mild Steel, Copper, Brass, Aluminum
    • Point Type : Split Point With Web Thinning
    • Shank : 1/4 IN Quick Change Hex
    • Size : #10
    • Thread Per Inch : 24 TPI
    • Thread Type : NC
