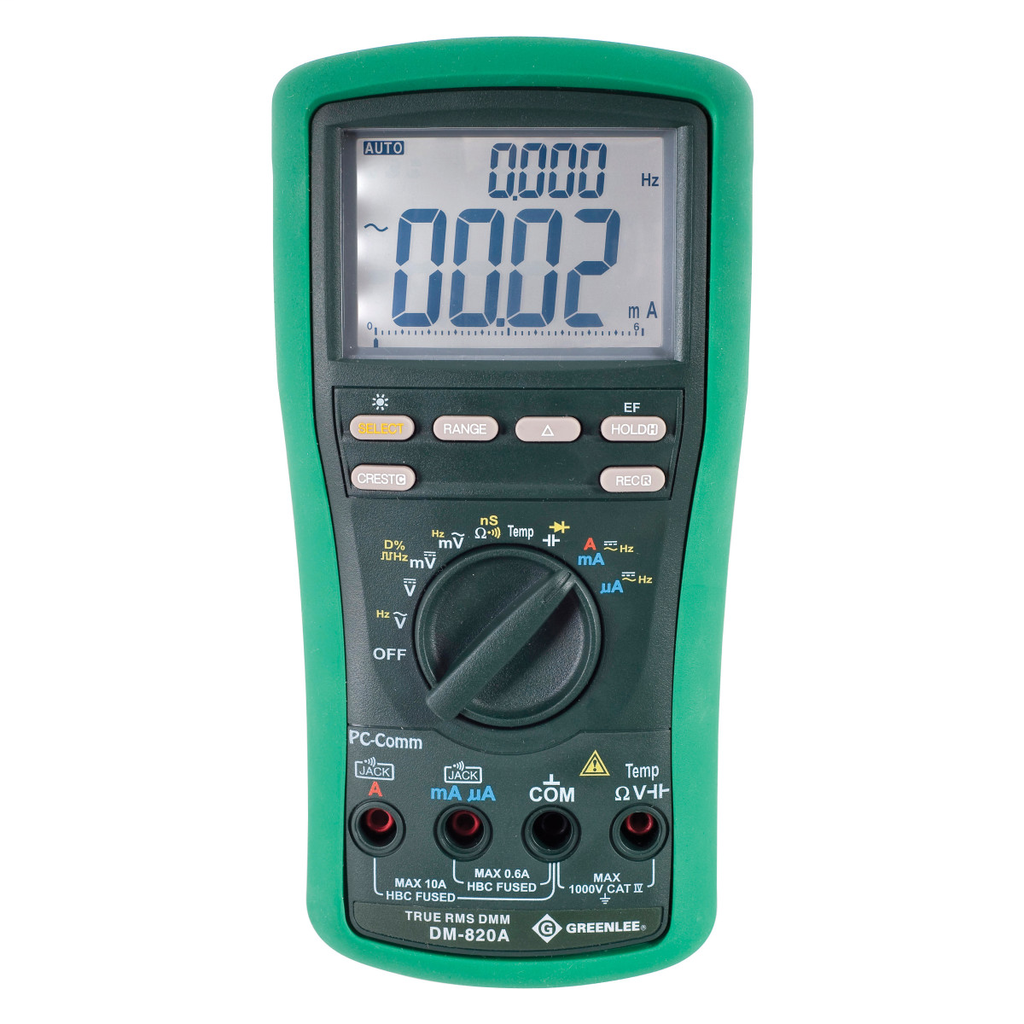

10,000-Count Digital Multimeter, 1000V, 10A (DM-820A)

DMM TRMS AC/DC CAP TEMP (DM-8

GREDM820A DM-820A 783310087441
285.92 / EACH
http://schema.org/OutOfStock
Mayer-10,000-Count Digital Multimeter, 1000V, 10A (DM-820A)-1
  • Country of Origin: Taiwan
QTY
  • Features
  • Specifications
  • Features
    • True RMS for no-compromise accuracy
    • Measures voltage, current,resistance, Capacitance And Frequency
    • Tests Continuity And Diodes
    • Backlit LCD With Dual 10,000 Count Displays
    • BeepJack Warns When Test Leads Are Incorrectly Inserted In Current Measurement Terminals
    • Automatic And Manual RangeSelection
    • Relative Offset Mode To See Changes In Measurements
  • Application
    • Digital
  • Specifications
    • Country of Origin : Taiwan, Province of China
    • Included Components : (1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400 DEG F/204 DEG C Max), Test Leads, Protective Boot, Carrying Case
    • Amperage Measurement : 600, 6000μA; 60, 600mA; 6, 10A
    • Battery : (1) 9 V
    • Capacitance : 60, 600nF; 6, 60, 600μF; 6, 25 mF
    • Conductance : 99.99 nS
    • Display : Backlit LCD With Dual 10,000 Count
    • Frequency Measurement : 15Hz- 50kHz Sine Wave, 5Hz - 1MHz Logic Level Square Wave
    • Includes : (1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400 DEG F/204 DEG C Max), Test Leads, Protective Boot, Carrying Case
    • Measurement Category : CAT IV, 1000 V
    • Replacement Part : TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A)
    • Resistance Measurement : 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ
    • Standard : CAT IV, C/UL US Listed, TRUE RMS, CE Listed
    • Temperature Rating : K Type, -58 To 1832°F (-50 To 1000°C)
    • Type : Digital
    • Voltage Measurement : 60, 600 mV; 9.999, 99.99, 999.9 V
