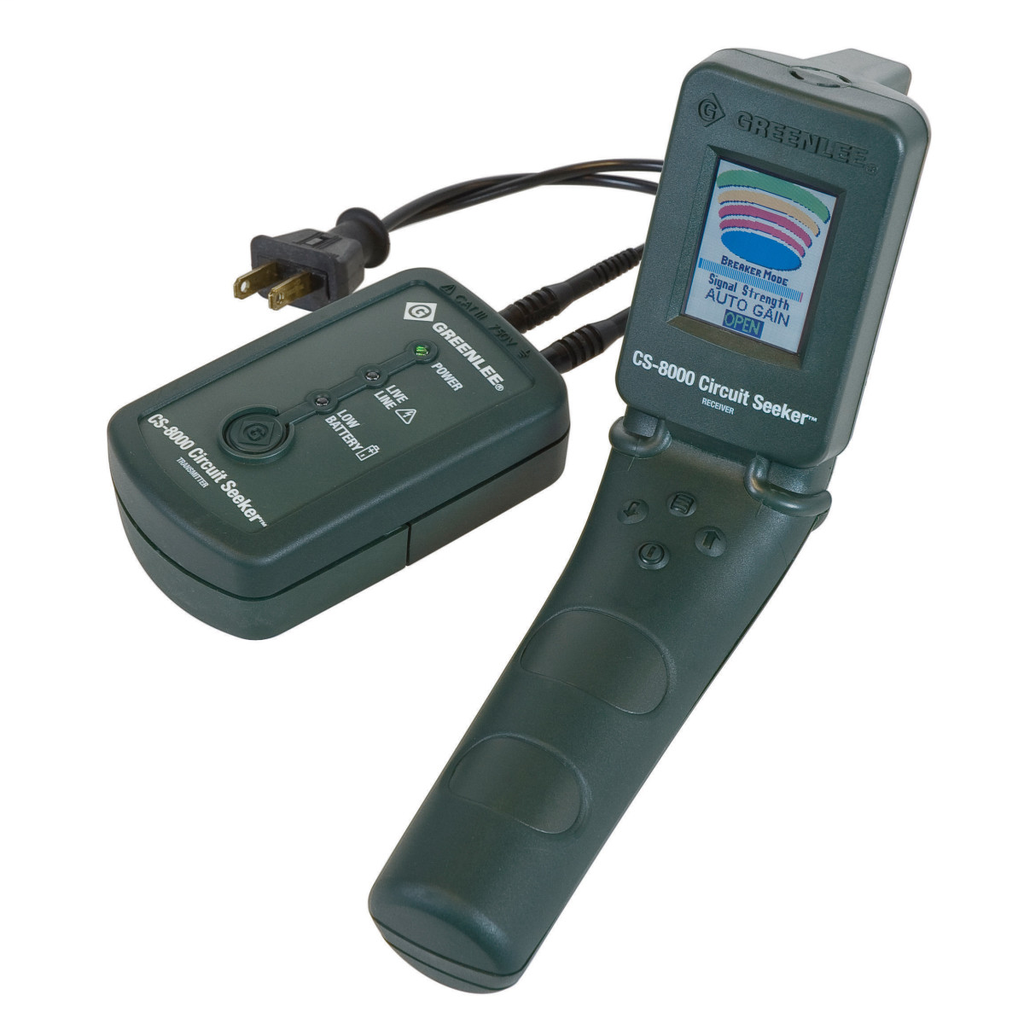

CS-8000 Circuit Seeker™ Circuit Tracer

CIRCUIT SEEKER

GRECS8000 CS-8000 783310121268
1826.41 / EACH
http://schema.org/OutOfStock
  • Country of Origin: USA
  • Height: 5.5 in
  • Length: 13 in
  • Volume: 4.47 lb, 793.65 cu in
  • Width: 11.1 in
Steel (conductive). NOTE: Steel braid hoses are not intended for use near energized lines or equipment!. Wire braid reinforced. SAE 100R1 AT Hose. Working pressure 2,000 psi(138 bar)
QTY
  • Product Description
  • Features
  • Specifications
Steel (conductive). NOTE: Steel braid hoses are not intended for use near energized lines or equipment!. Wire braid reinforced. SAE 100R1 AT Hose. Working pressure 2,000 psi(138 bar)
  • Features
    • Advanced patented non-directional sensing technology Superior sensitivity and functionality providing for accurate tracing & locating Ergonomic receiver with information-rich full-color graphical LCD Graphics and audible signal provide quick and easy to understand tracing feedback Traces concealed wiring, locates junction boxes, and finds breakers for live or open circuits Locates and identifies blown fuses Finds shorts and breaks in conductors Low pitch, high volume audible indicator User-selectable automatic or manual gain capability for fast, convenient use Can be used on GFCI protected circuits Automatic backlight on receiver maximizes battery life Supports transmitter-to-receiver distances up to 4 miles for closed circuit tracing Lifetime Limited Warranty
  • Specifications
    • Volume : 4.47 LB
    • Width : 11.1 IN
    • Height : 5.5 IN
    • Country of Origin : US
    • Length : 13 IN
    • Volume : 793.65 CI
    • Application : For Used On GFCI Protected Circuits
    • Capacity : 0 - 750V AC/DC
    • Display : Full-Color Graphical LCD
    • Receiver To Transmitter Distance : Up To 4 Miles For Closed Circuit Tracing
    • Replacement Part : 12849 Transmitter, 12850 Receiver, 10057 Alligator Clips (2), 10054 AC Blade, 12852 AC Plug Adapter, 12853 Extension Leads (2), 12851 Carrying Case
    • Packaged Weight : 4.47
    • Sub Brand : Circuit Seeker
    • Receiver Range : Up To 20.000 FT (6.000 M) Live Line Mode Up To 10.000 IN (3.000 M) Open Line With Metallic Connection To Ground 1.000 - 3.000 FT (0.300 - 0.900 M) With Capacitive Ground Reference
    • Frequency : 15.15 kHz
