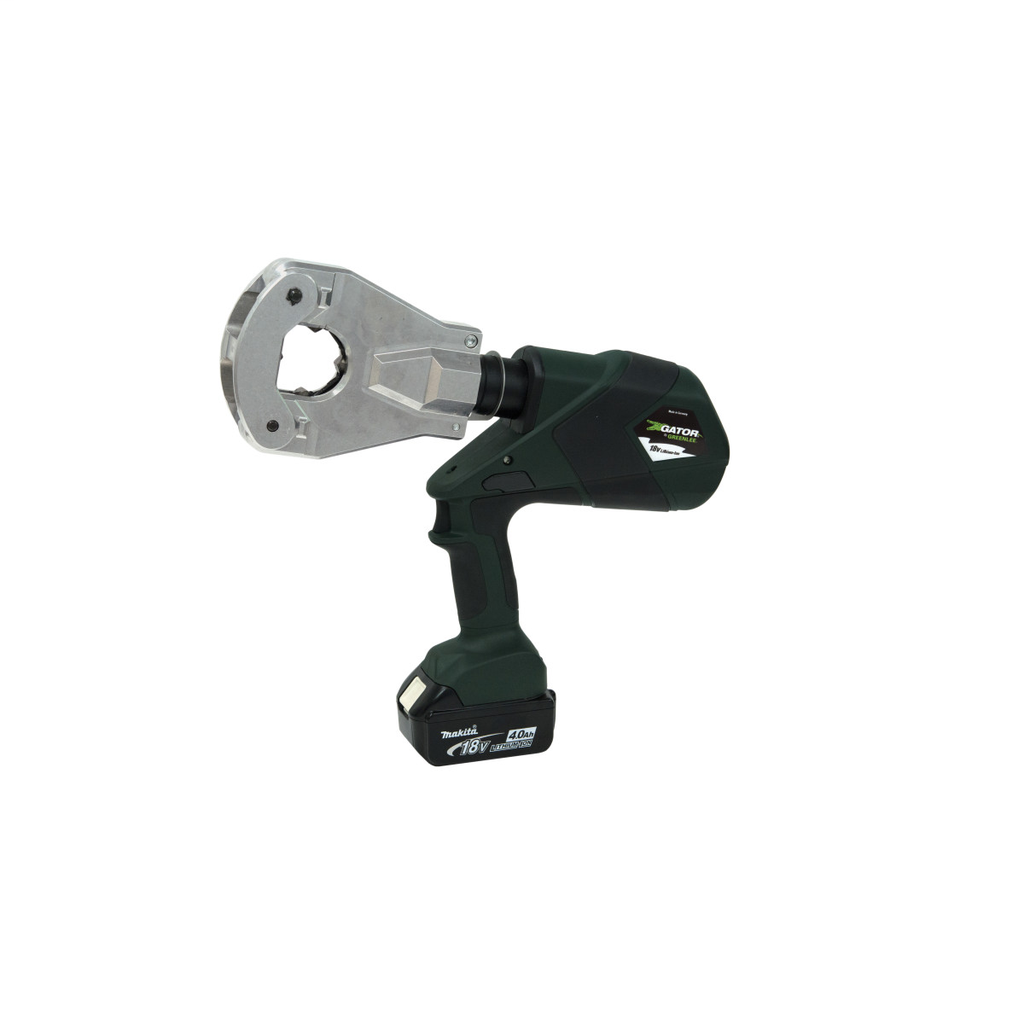

6 Ton Crimper Quad Flip, Li-Ion, Standard, 120V

CRIMPER QUAD FLIP 6T LI STD

GREEK6FTLX11 EK6FTLX11 783310611196
7678.19 / EA
http://schema.org/OutOfStock
  • Country of Origin: Germany
  • Crimping Force: 12,400 lb
  • Overall Length: 14.875 in, 378 mm
QTY
  • Features
  • Specifications
  • Features
    • Equipped with Bluetoothâ„¢ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specificationsState of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle timesAutomatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energyLED light provides the operator with the battery charge and tool maintenance statusTwo-stage hydraulic system provides fast advance and power speeds, saving timeForward handle position improves tool balanceOne trigger controls all tool functionsCrimping head rotates 350°Tools automatically retract when the crimping cycle is completeOver molded tacky grip areas make gripping the tool easier and more comfortableLED work light illuminates dark work areasGreenlee battery-powered crimping tools now use bio-degradable oilSmart chargers control the charging current, charging voltage and battery temperature to maximize battery lifeUtilizes four indenters to make the crimpFlip-top style uses a pull pin to open head for easy removal from the connectorU.S. Patents #6,206,663 and #6,065,326 Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
  • Application
    • 6 Ton Crimping
  • Specifications
    • Country of Origin : Germany
    • Handle Type : Pistol Style with over molded rubber grip
    • Sub Brand : Gator
    • Type : Dieless style crimper
    • Standard : C/US UL Listed
    • Wire Size : 6 AWG - 750 Kcmil Cu & Al
    • Overall Length : 14.875 IN (378mm)
    • Crimping Force : 12,400 lbs. (55 kN)
    • Crimping Capacity : 750 Kcmil (MCM) Cu & Al
    • Connector Type : Color-coded lugs and splices
