GENERAL CABLE

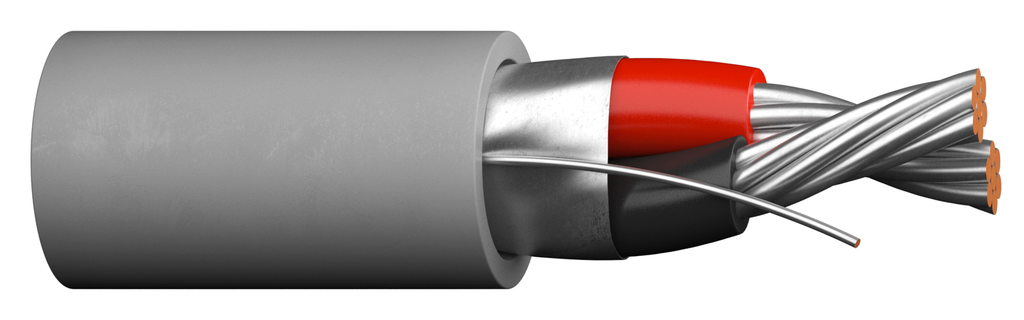

18/2C STRANDED TC SHIELDED CM

BLD8760EQUAL 18/2C STR SHLD GR

GCCC2534A.41.10 C2534A.41.10 079407061082
0.46 / EA
http://schema.org/OutOfStock
In many electronic applications, two wires are required to complete circuits; these are often referred to as “balanced arrays” or “twisted pair” constructions. Paired cable designs find frequent application in circuits requiring circuit-to-circuit isolation from noise, minimization of capacitance imbalances a reduction of EMI interference currents. Circuit separation is further enhanced in those designs employing individual circuit shields in concert with an overall shield. These shielding systems are available from General Cable in myriad combinations to suit the unique needs of the circuit designer.As with the multi-conductor designs, a wide array of insulating jacketing materials are available to meet specific electronic applications.General Cable’s Carol® Br communication cable products are manufactured to meet the latest UL, CSA NEC requirements approvals.
QTY
  • Product Description
  • Features
  • Specifications
In many electronic applications, two wires are required to complete circuits; these are often referred to as “balanced arrays” or “twisted pair” constructions. Paired cable designs find frequent application in circuits requiring circuit-to-circuit isolation from noise, minimization of capacitance imbalances a reduction of EMI interference currents. Circuit separation is further enhanced in those designs employing individual circuit shields in concert with an overall shield. These shielding systems are available from General Cable in myriad combinations to suit the unique needs of the circuit designer.As with the multi-conductor designs, a wide array of insulating jacketing materials are available to meet specific electronic applications.General Cable’s Carol® Br communication cable products are manufactured to meet the latest UL, CSA NEC requirements approvals.
  • Applications
    • Recording studios and sound stages
    • Broadcast and sound systems
    • Computers
    • Industrial equipment control
    • Suggested voltage rating: 300 or 600 volts
  • Jacket
    • PVC, gray
    • Temperature range: -20°C to +75°C
  • Compliances
    • UL Style 2092 (UL: 60°C, 300 V)
    • UL Style 2093 (UL: 60°C, 300 V)
    • UL Style 2094 (UL: 60°C, 300 V)
    • UL Style 2106 (UL: 60°C, 600 V)
    • UL Style 2107 (UL: 60°C, 600 V)
    • UL Style 2464 (UL: 80°C, 300 V)
    • NEC Article 725 Type CL2 (UL: 75°C)
    • NEC Article 800 Type CM (UL: 75°C)
  • Conductor
    • 24 thru 12 AWG fully annealed solid or stranded tinned copper per ASTM B33
  • Insulation
    • Premium-grade, coIor-coded polyethylene
    • Premium-grade, coIor-coded polypropylene
  • Shield
    • 100% Flexfoil® aluminum/polyester, 25% overlap, foil facing out
    • Stranded tinned copper drain wire
  • • RoHS Compliant Directive 2011/65/EU • CSA CMH (CSA
    • 60˚C)
    • Passes CSA CMH Flame Test
    • CE: Low Voltage Directive (LVD) 2006/95/EC
  • Specifications
    • Country of Origin : United States
    • Weight : 0.023 0.023
    • AWG Size : 18
