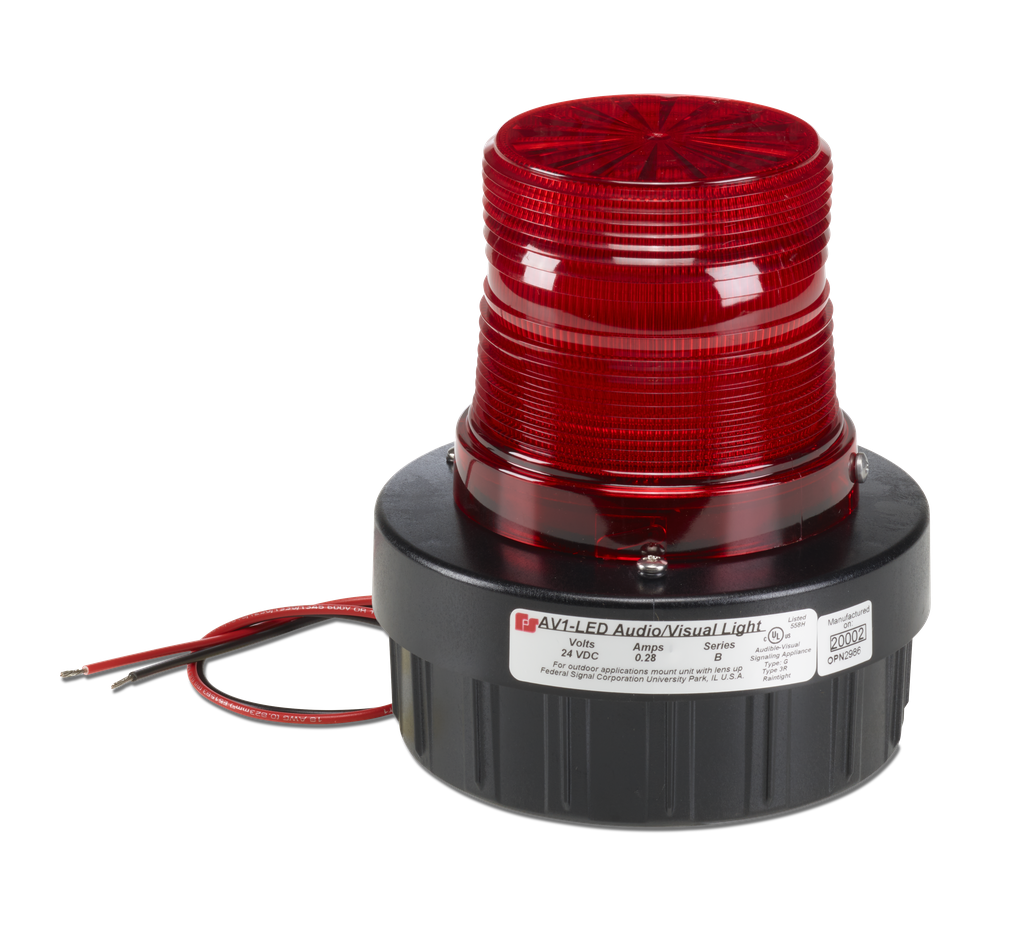

Model AV1-LED is a combination audible/visual signal. The AV1-LED features a 100% polycarbonate housing that is rated for Type 3R rain-tight applications. All AV1-LED units feature a twist-and-lock lens design to allow for tool-free access to the LED. The fresnel lens provides superior visibility in all directions. The integrated buzzer provides 85 dBa output @ 10 feet (95 dBa @ 1m). The unit is capable of independent flashing light and sounder operation. The LED can be field adjusted to two flash patterns, 60 FPM or 75 FPM, via a jumper on the PC board. Each unit is factory assembled with two color-coded leads. If desired, the user can remove the leads and connect directly to the terminal block located in the base of the unit.

• Features
• Available in 24VDC and 120VAC
• Five lamp/lens colors: Amber, Blue, Clear, Green and Red
• 50,000 hour LED
• Surface, integrated 1/2-inch NPT pipe, and 4-inch electrical box mount
• Twist-off lens for easy access
• Intermittent or steady light effect
• Internal buzzer produces 85 dBa at 10' (95 dBa @ 1m)
• Flexible operation allows the unit to independently illuminate without buzzer if desired
• PLC compatible
• Type 3R enclosure
• UL and cUL Listed

• Specifications
• Mount Type : Surface, 1/2-Inch Pipe, 4" Square Electrical Box
• Body Color : Black
• Environment Rating : Ordinary Location
• Flashes Per Minute : 60-75
• Lens Color : Red
• Light Source : LED
• Voltage : 120VAC
• Diameter : 5.76 in
• Height : 6.48 in
• Weight : 1.25 lbs
• Shipping Weight : 3.18
