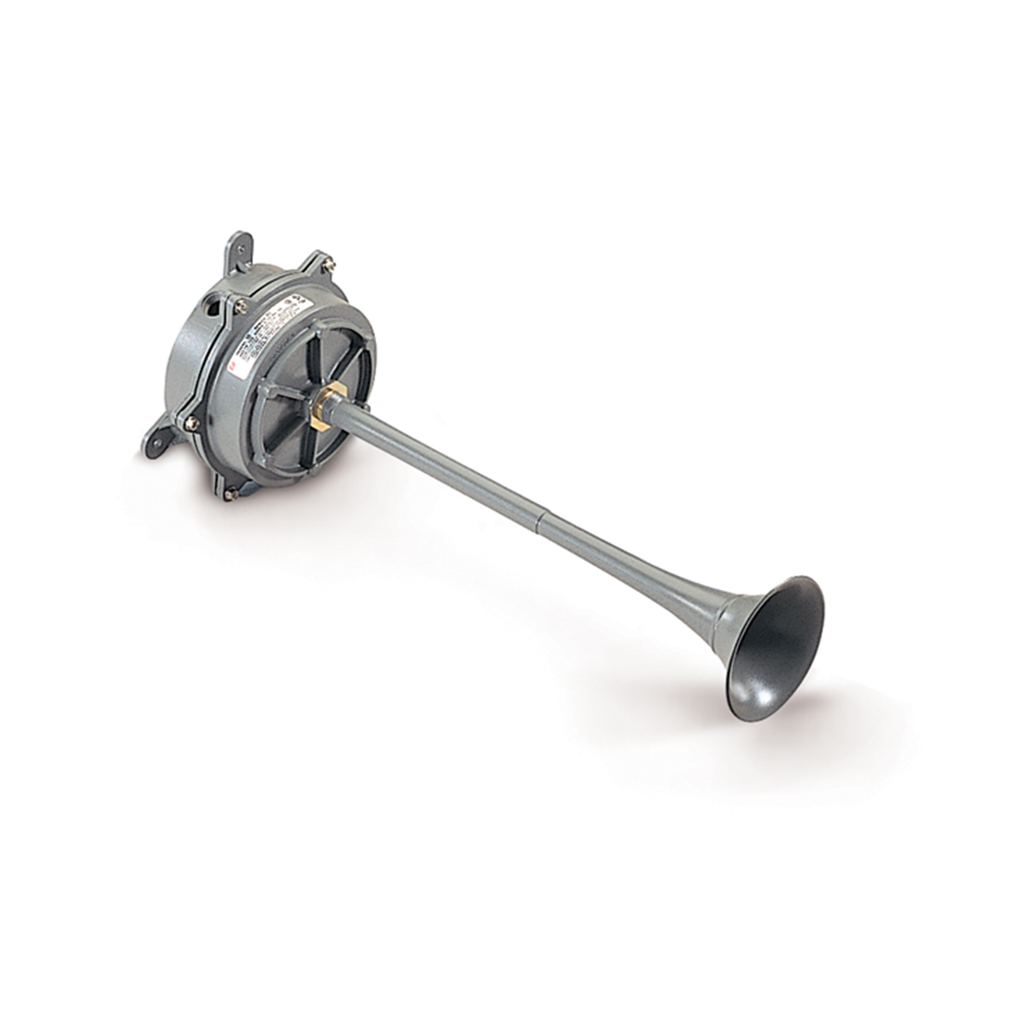

Resonating Horn, 120VAC, Gray

HORN - ACWP RESONATE 120V

FED551201 55-120-1 FED551201
1259.31 / EA
http://schema.org/OutOfStock
Mayer-DDS-Resonating Horn, 120VAC, Gray-1
  • Certifications: CSA, UL
  • Country of Origin: USA
  • Depth: 20.32 cm, 8.0 in
  • Height: 20.32 cm, 8.0 in
  • Mounting Type: Surface
  • Weight: 5 lb
  • Width: 20.32 cm, 8.0 in
 Models 55 and 56 are resonating horns that produce sound by means of a diaphragm, which resonates a column of air. With greater output than a vibrating horn, the resonating horn can be used wherever a louder, more powerful alert is needed. These projectors are designed to match the frequency of the vibrating diaphragm to produce a smooth tone. The housings are tapped for 1/2" conduit. Models 55 and 56 have sufficient output to penetrate through high ambient noise levels and have a duty cycle of five minutes on, five minutes off.
QTY
  • Product Description
  • Features
  • Specifications
 Models 55 and 56 are resonating horns that produce sound by means of a diaphragm, which resonates a column of air. With greater output than a vibrating horn, the resonating horn can be used wherever a louder, more powerful alert is needed. These projectors are designed to match the frequency of the vibrating diaphragm to produce a smooth tone. The housings are tapped for 1/2" conduit. Models 55 and 56 have sufficient output to penetrate through high ambient noise levels and have a duty cycle of five minutes on, five minutes off.
  • Features
    • Model 55 - 24VAC and 120VAC
    • Model 56 - 24VDC, 125VDC and 250VDC
    • Model 55 produces 105 dBa @ 10' (115 dBa @ 1m)
    • Model 56 produces 106 dBa @ 10' (116 dBa @ 1m)
    • Corrosion resistant cast aluminum housing and spun brass projector
    • Indoor or outdoor use
    • Weatherproof, water- and dust-tight
    • Swivel bracket included
    • Type 3R enclosure
    • Model 55-120-1 is UL and CSA Certified
  • Specifications
    • Country of Origin : United States
    • Weight : 5 lbs
    • Body Color : Gray
    • Certification Listing : CSA, UL
    • Availability : Contact Us for Availability
    • Mount Type : Surface
    • Operating Temp. : -35˚ to +150˚F (-37˚ to +66˚C)
    • Audible Signals Model Description : 55-120-1
    • Depth : 8.0 in, 20.32 cm
    • Height : 8.0 in, 20.32 cm
    • Width : 8.0 in, 20.32 cm
