LB Body

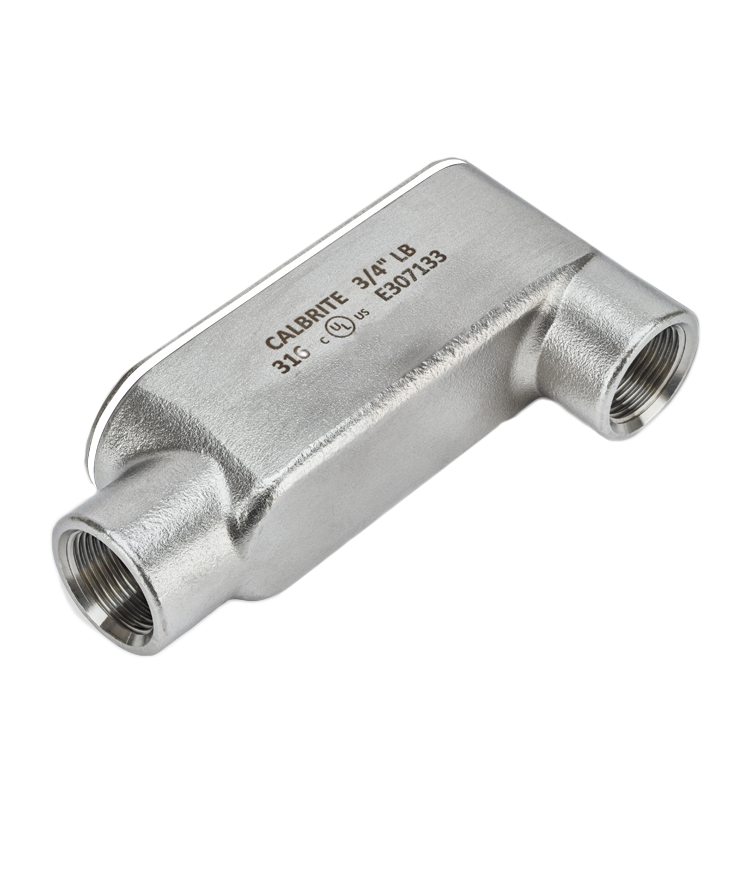

1 SS316 LB CONDUIT BODY

CALS61000LB00 S61000LB00 847656005320
316.56 / EA
http://schema.org/OutOfStock
Mayer-DDS-LB Body-1
LB Conduit Body, 1 IN Hub, Form: Form 8, 6-1/2 IN Length, 1-3/4 IN Width, 3.05 IN Height, CF8M 316 Stainless Steel Body, 316 Stainless Steel Cover And Screws, Neoprene Gasket, Capacity: 11 CU-IN, UL 514A Listed, E307133, C/US UL Listed, For Use With Stainless Threaded Conduit And To Connect And Change Direction Of Conduit Runs, Can Be Used As Pulling Fittings, Accessible Wiring Chamber Provides A Spacious Location To Make Splices
QTY
  • Features
  • Specifications
  • Features
    • Manufactured in type 316 stainless steel to meet any stringent sanitary condition
    • Polished with standard “brite” finish to increase corrosion resistance and aesthetic appearance
    • Solid stainless construction permits easy installation using ordinary hand tools
    • The flat back design allows extra wiring capacity
    • No package quantity required
    • Cover and Gasket set included
    • Form 8 style
  • Certifications and Compliances
    • UL 514A Listed
    • UL File # E307133
    • CSA C22.2 No. 18.1
    • NSF/ANSI 169 Certified
    • Article 314 of ANSI/NFPA 70, National Electrical Code (NEC)
    • Approved for wet locations
  • Applications
    • To connect and change direction of conduit runs. Can be used as pulling fittings. Accessible wiring chamber provides a spacious location to make splices.
  • Specifications
    • Body : 316SS
    • Gasket : Neoprene
    • Cover and Screws : 316SS
    • Trade Size (in) : 1
    • A (in) : 6.673
    • B (in) : 1.750
    • C (in) : 3.025
    • a2 (in) : 5.650
    • Cubic Inches (in) : 11
    • Weight per each (lb) : 2.17
