APPLETON

Appleton™ PLG Close Up Plugs BR Reducers - PN PLG300

PLUG 3 REC HEAD IRON

APPPLG300 PLG-300 781381652551
35.07 / Each
http://schema.org/OutOfStock

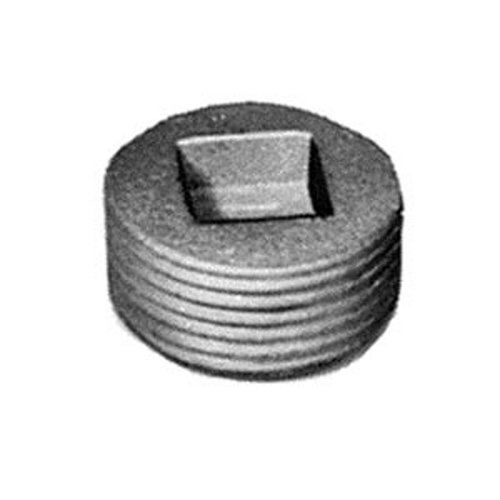

Appleton™ PLG Close-Up Plugs and BR Reducers are explosionproof and dust-ignitionproof. The close-up plugs are used for closing threaded conduit openings. The reducers are used to a create smaller size opening. Both are for use with threaded metal conduit and IMC.
QTY
  • Product Description
  • Features
  • Specifications
Appleton™ PLG Close-Up Plugs and BR Reducers are explosionproof and dust-ignitionproof. The close-up plugs are used for closing threaded conduit openings. The reducers are used to a create smaller size opening. Both are for use with threaded metal conduit and IMC.
  • Features
    • Explosionproof, dust-ignitionproof
    • Smooth, rounded integral bushing in each hub protects conductor insulation
    • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Specifications
    • PLG Plugs Standard Materials and Finishes : 1/2 thru 1: copperfree (4/10 of 1% max.) aluminum with natural finish or steel with zinc electroplate. 1-1/4 thru 6: copperfree (4/10 of 1% max.) aluminum with natural finish or malleable iron with zinc electroplate
    • BR Reducers Standard Materials and Finishes : Copperfree (4/10 of 1% max.) aluminum with epoxy powder coat finish or malleable iron triple-coat finish of (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat
    • Options : Urethane paint available on select items (add suffix -UP)
  • Certifications and Compliances
    • NEC/CEC Certifications and Compliances : Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
