APPLETON

APP EXLK-218 3/4 EX FLEXIBLE COUPL

COUPLING - 3/4X18 FLEX

APPEXLK218 EXLK-218 781381328104
319.97 / Each

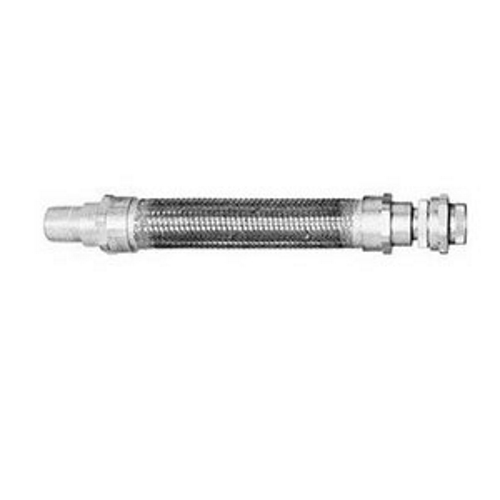

UNILETS Flexible Coupling, Trade Size: 3/4 IN, Outside Diameter: 1-3/4 IN, Flex Length: 18 IN, Bending Radius: 12 IN, Flexibility: Rigid And IMC, Material: Outer Bronze Braid And Inner Brass Core With Insulating Liner, End Type (1) Male Nipple, (1) Union
  • Product Description
  • Specifications
UNILETS Flexible Coupling, Trade Size: 3/4 IN, Outside Diameter: 1-3/4 IN, Flex Length: 18 IN, Bending Radius: 12 IN, Flexibility: Rigid And IMC, Material: Outer Bronze Braid And Inner Brass Core With Insulating Liner, End Type (1) Male Nipple, (1) Union
  • Attributes
    • Application : For Use With Threaded Rigid Metal Conduit And IMC
    • Brand Name : Appleton
    • Connection : Female Threaded
    • Flexibility : Rigid And IMC
    • Length : 22-1/2 IN
    • Material : Outer Bronze Braid And Inner Brass Core With Insulating Liner
    • Outside Diameter : 1-3/4 IN
    • Radius : 12 IN Bending
    • Special Features : Explosionproof, dust-ignitionproof, watertight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Heavy duty design resists mechanical abuse; Electrical conductivity equal to rigid conduit on a similar length basis no bonding jumper required; Interior insulating liner protects conductors from abrasion under vibrating conditions; Female end fitting with removable ductile iron union at one end and a female end fitting with a removable brass male nipple at the other end; Used in areas where vibration and movement is a problem, also used in place of rigid conduit in difficult-bend situations
    • Standard : UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified, Class I, Division 1 And 2 And Class II, Division 1 And 2, Suitable For Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III
    • Sub Brand : UNILETS
    • Trade Size : 3/4 IN
    • Type : Flexible Coupling
