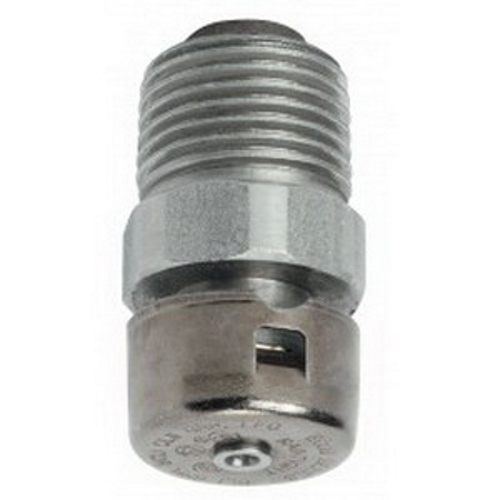

Appleton™ explosionproof and dust-ignitionproof drains, breathers, universal drains and universal breathers provide a means for the prevention and/or release of condensation when properly installed in the appropriate location.

• Features
• Explosionproof, dust-ignitionproof
• Accurately tapped, tapered threads for tight, rigid joints and ground continuity
• NEMA 3R universal drain or breather: for high performance water drainage or continuous ventilation
• NEMA 4X breather: for continuous ventilation
• NEMA 4X drain: for automatic water drainage
• NEMA 3R Group B universal drain or breather: for automatic water drainage or continuous ventilation (raintight)
• Groups C and D universal drain or breather: for automatic water drainage or continuous ventilation
• Non-hazardous location drain: for automatic water drainage

• Certifications and Compliances
• NEC/CEC Certifications and Compliances : Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
• Specifications
• Standard Materials : Hazardous location combination drain/breathers are stainless steel. Non-hazardous CRN drains are copperfree (4/10 of 1% max.) aluminum
