APPLETON

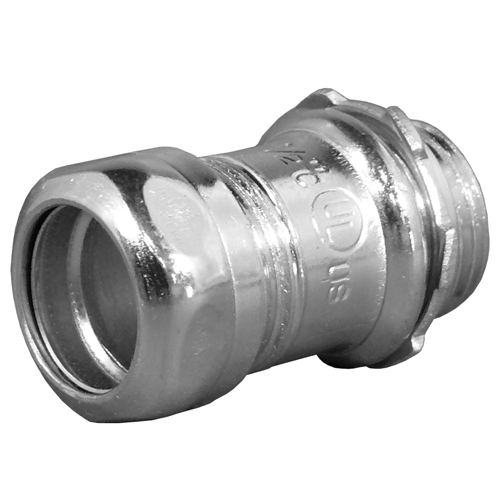

3/4 IN EMT COMP CONN INSUL STEEL

CONNECTOR - 3/4 INS THR EMT ST

APP7075ST 7075ST 687855873142
0.76 / EACH
  • Specifications
  • Attributes
    • Connector Type : Compression
    • Trade Size : 0.75 IN
    • Application : To ground and secure EMT Raceways to boxes and enclosures
    • Brand Name : APPOZGCOMM
    • Color : Metallic
    • Connection : Male NPS Thread
    • Finish : Zinc Electro Plated
    • Insulation : Insulated Throat
    • Material : Steel
    • NEMA Rating : FB-1
    • Size : 0.75 IN
    • Special Features : 1 1/32 IN Dia X 1 1/4 IN Length, 7/16 IN Thread Length, Concretetight
    • Standard : UL Standard: 514B; UL Listed: E14815, E14895; CSA Standard: C22.2 No. 18.3, cUL Listed: E14815; CSA Certified: 028507; NEMA: FB-1
    • Sub Brand : ETP
    • Temperature Rating : 90 DEG C
    • Type : EMT Conduit Straight Compression Connector
