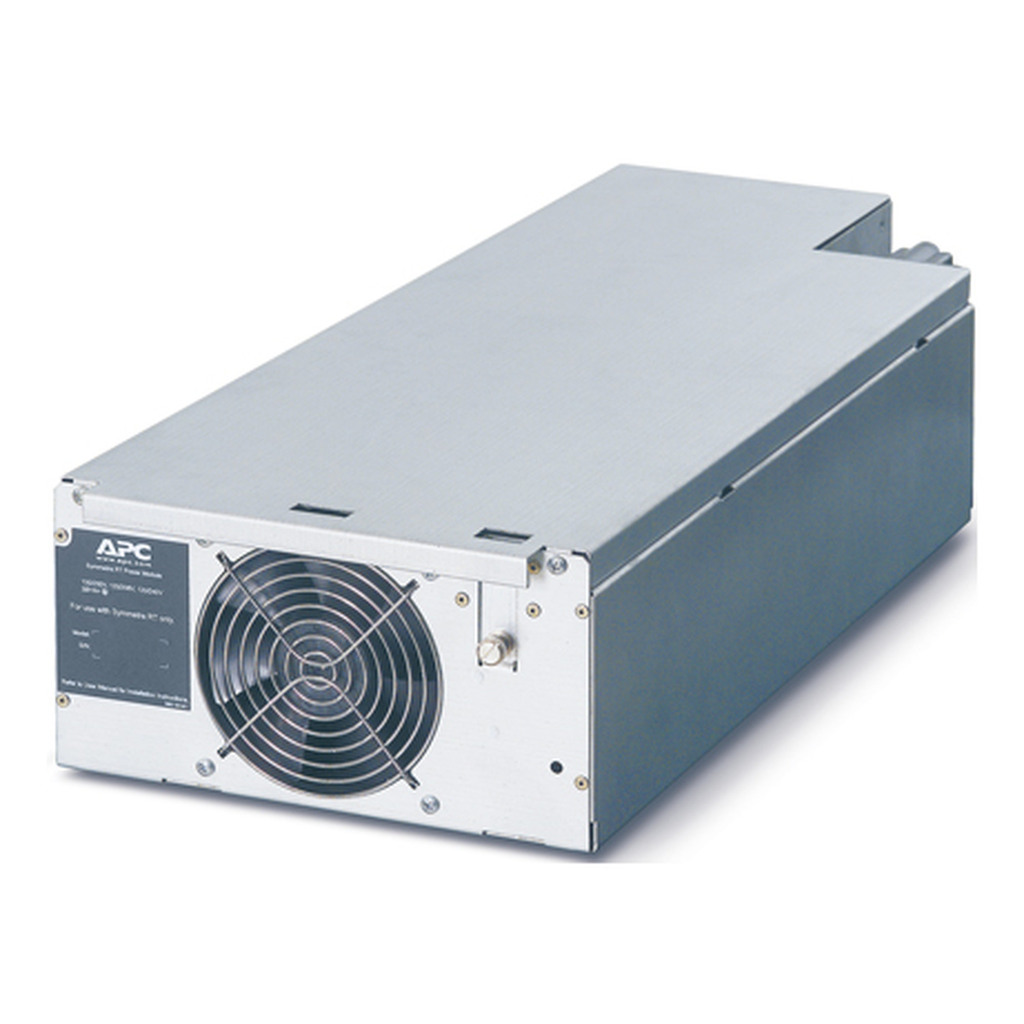

The APC Symmetra LX Power Module is designed for high-density, double-conversion on-line power protection. It supports input voltages of 200V and 208V, with output voltage range of 100V to 208V. The module has a power rating of 4000 VA (3200 W) and operates at a frequency range of 45-65 Hz.

• Physical Attributes
• Color : Silver
• Conformance Attributes
• Standards : FCC Part 15 class A, UL 1778
• Product Certifications : CSA
• Complementary Attributes
• Maximum Configurable Power In Va : 4000 VA
• Maximum Output Current : 18 A
• Rated Power In Va : 4000 VA
• Rated Power In W : 3200 W
• Important Information Attributes
• Persona Type Ids : EUA, SC, VR
• Persona Type Names : Consumer, Electrician, IT Channel Partner
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Output Frequency Sync To Mains : 47...63 Hz sync to mains, 50 Hz +/- 0.1 % for 50 Hz nominal not synced, 60 Hz +/- 0.1 % for 60 Hz nominal not synced
• Carbon Footprint Of The Distribution Phase A4 : 2.2972770378634686, 2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 6 kg CO2 eq., 6.007426260372359
• Carbon Footprint Of The Installation Phase A5 : 2.2221253747995258, 2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 238 kg CO2 eq., 238.36203890942053
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-26
• Pre Comm Date : 2004-03-17
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : UPS - Network and Server
• Serviceability : No
• Traceability : Yes
• Field Service Division : SPIBS
• Cr Shelf Life : 24
• Service Catalog Item : Finished good
• Legacy Weee Scope : In
• Weee Product Category : 4
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1712017_V1
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2405
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : ADVANCED
• Function Option : Advanced
• Product Kit Identifier : N
• Acoustic Level : 62 dBA
• Cos Phi : 0.98
• Crest Factor : up to 5 : 1
• Efficiency At Full Load : 155...276 V
• Energy Efficiency Optimized : False
• Graph Display : 1
• Maximum Configurable Power In Va : 4000 VA
• Mounting Mode : not rack-mountable
• Mounting Preference : no preference
• Number Of Cables : 1
• Number Of Rack Unit : 0U
• Number Of Tare Power : 90 W
• Output Connector Type : Hard Wire 4-wire (2PH+N+G) for 1 zone(s)
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : power module
• Provided Equipment : Installation guide
• Range Of Product : Symmetra Power Module
• Redundant : Yes
• Returnability : No
• Show Note Op Temperature : No
• Software Version : v6.2.5-6
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 3 133 kg CO2 eq.
• Ups Design Life : 10 year(s)
• Ups Size : L
• Usb Compatible : No
• Waveform Type : Sine wave
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Max Configurable Power Watts : 3200 W
• Warranty In Months : 24
• Pep Code : ENVPEP1712017EN
• Database Version : 2025-30
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0010-ed1.1-EN-2015 10 16
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Product Weight In G2 : 15000
• Reference Lifetime In Y2 : 15
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; High voltage; 2020; Asia Pacific, APAC
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Recyclability Potential In 2 : 66
• Offer Owner Code : 190792
• Height Nominal : 150 mm
• Width Nominal : 250 mm
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : Yes
• Recycled Metal Content At Cr Level : 0 %
• Carbon Footprint : 3133.3589010529254
• Ambient Air Temperature For Operation : 0-40 °C
• Ambient Air Temperature For Storage : -15-45 °C
• Circularity Profile : ENVEOLI1712017_V1
• Environmental Disclosure : ENVPEP1712017EN
• Eu Rohs Directive : Compliant By Exemption
• Operating Altitude : 0...10000 ft
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 %
• Storage Altitude : 0-15000 ft
• Storage Relative Humidity : 0-95 %
• Pep Code : ENVPEP1712017EN
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0010-ed1.1-EN-2015 10 16
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : power module
• Provided Equipment : Installation guide
• Range Of Product : Symmetra Power Module
• ETIM
• ETIM 8 : EC002850
• ETIM 9 : EC002850
• Output Attributes
• Output Voltage : 100 V, 120 V, 200 V, 208 V
• Harmonic Distortion : less than 5 % at full load
• Maximum Output Current : 18 A
• Other Output Voltages : 240 V
• Contractual Warranty Attributes
• Warranty Period : 2 years repair or replace
• Warranty : 2 years repair or replace
• Input Attributes
• Main Input Voltage : 200 V, 208 V
• Cos Phi : 0.98
• Efficiency At Full Load : 155...276 V
• Input Frequency : 45...65 Hz auto-sensing
• Other Input Voltages : 240 V
• Specifications
• Country of Origin : United States
• Depth : 565 mm
• Batteries & Runtime Attributes
• Additional Information : Configurable for 120/208 or 120/240 output voltage
• Battery Curve : C
• Battery Design Life : 2 year(s)
• Battery Power In Vah : 0 VAh runtime
• Battery Slots Empty : 0
• Included Battery Modules : 0
• Overview Attributes
• Presentation : High density, double-conversion on-line power protection with scalable runtime.
